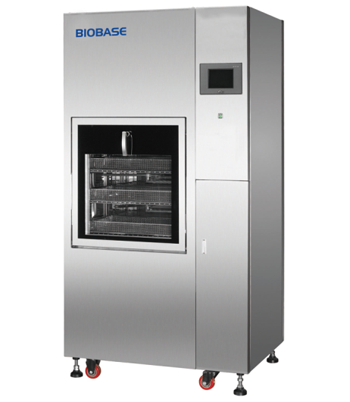

CE certified fully automatic stainless steel glassware washer endoscope washer disinfector on promotion
Features:
1. High efficient cleaning system, designed with European reliable pump, optimized spray arm and nozzles, and self-cleaning program;
2. Rapid and efficient drying system, designed with independent air heater, HEPA filter and drying process;
3. Water heating temperature can reach 99℃, while hot air drying temperature can reach 120℃;
4. Professional configuration design—stainless steel for corrosion resistance;reinforced glass window mounted to achieve a clear view on washing process;
5.PLC touch screen control with preset 6 programs(including one customized program)
6. Safety protection—electronic security door lock to prevent unexpected door opening, water & drying air temperature dual control and equipped with emergency switch;
Standard Washing Procedure (can be self-designed by the user)
Pre-cleaning→Washing with cleaner→Rinse→Washing with neutralization→Rinse→Washing with hot water→Drying
Model | BK-LW120 | BK-LW220 | BK-LW320 | BK-LW420 |
Capacity(L) | 120 | 220 | 320 | 420 |
Water Consumption/Cycle(L) | 15 | 15 | 18 | 25 |
Inlet Water Pressure(Mpa) | 0.3~0.8 | |||
Noise | ≤50dB | ≤55dB | ≤60dB | |
External &Internal Material | Stainless steel | |||
Power Supply(V/HZ) | 220/50/60 | 220/50/60, 380/50/60 | 380/ 50/60 | 380/50/60 |
Overall Power Consumption (KW) | 6
| 6.5/17 | 18 | 20 |
Power Consumption- Water Washing(KW) | 1.1 | 1.5 | 2.8 | 2.8 |
Power Consumption- Water Heating (KW) | 5 | 5/15 | 15 | 17 |
Power Consumption- Drying (KW) | 2.1 | 3.6 | 3.6 | 3.6 |
Cleaning Racks | 1 pcs | 2pcs | 3pcs | 2pcs |
Washer Chamber Size (W*D*H )(mm) | 600*629*465 | 600*629*658 | 600*629*820 | 688*700*703 |
External Size (L*W*H mm) | 980*740*855 | 790*690*1770 | 790*690*1850 | 1100*900*1950 |
Packing Size (L*W*H mm) | 1080*990*1065 | 990*840*2090 | 990*840*2250 | 1300*1040*2235 |
Gross Weight | 150kg | 330kg | 400kg | 450kg |
Optional Accessories | USB interface, printer ,Cleaning racks | |||
BIOBASE GROUP CHINA
Established in 1999
Our mission is to enable our customers to make the world healthier,cleanerand safer.
BIOBASE group invests in science and technology researches,aims to keep improving products
performance and quality as well as develops new products to meet customers"wide requirement.
We satisfy our customers by offering comprehensive support,purchase convenience and we are ready to
serve more and more BIOBASE users.
BIOBASE group,serving global distributors and its loyal end users,is becoming one of the most
important scientific services supplier.
Add: NO.51 South Gongye Road,Jinan250101,Shandong,China.
www.biobase.cc www.meihuatrade.com www.labproject.cn
Important information that you may concern about:
1. Pacakge: All the products wil be packed firmaly in standard wooden case/ carton to make sure that the product won"t be damaged during the delivery.
2. Delivery time: Generally, the delivery time is about 10-20 days. If the product is a hot-sale one and out of stock, that might be a bit longer but we will try our best to let our customers receive the products as soon as we can.
3. Warranty: The warranty is generally 1/2 years, during which the replacement of broken components are free. Accessories are available.
4. Payment: T/T in advance,L/C,West union,Paypal
