BIOBASE-Auto Biochemistry Analyzer-SAPPHIRE With Cheaper Price
1. Fully automatic, Discrete, Random access
2.400 T/H, 60/90 sample position and 120 reusable cuvettes.

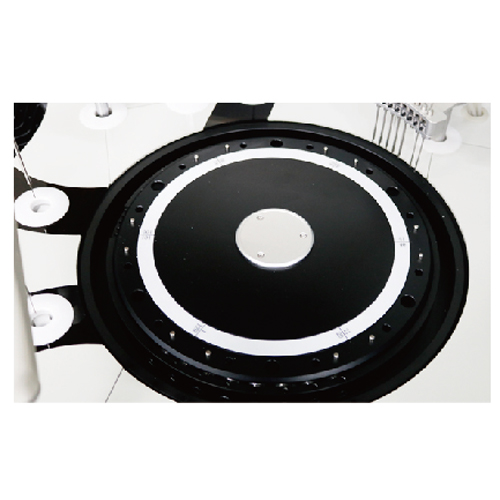

3. 90 refrigerated reagent tray (R1:45 R2:45), 24 hour working.
4. Reversed optics and imported photo sensor, ensuring the precision of detection results.
5. Precision dispense pumps assures the accuracy of adding sample volmue, sample volume step by 0.1μl, reagent volume step by 1μl.
Overall Performance | Model | BIOBASE-DIAMOND | ||||
Type | discrete, fully automatic | |||||
Throughput | 400 T/H | |||||
Analysis Method | End-point, Fixed-time,Rate | |||||
Programming Items | programmable for any test items | |||||
Certification | CE, FDA, ISO9001, ISO14001, ISO13485 | |||||
Sample unit | Sample Settings | 60/90 sample positions, including calibration, quality control and emergency. | ||||
Sample Volume | 2ul ~50ul (0.1ul stepping) | |||||

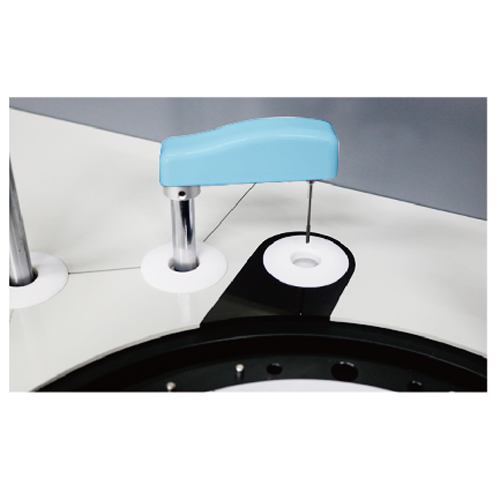

Sample Probe | Having liquid level induction function. | |||||
Probe cleaning | Automatic washing both interior and exterior | |||||
Analysis Items | analyzing maximally 45 items at the same time | |||||
Reagent unit | Reagent Position | R1:45 R2:45 total 90 refrigerated reagent position | ||||
Reagent Volume | R1:25~300ul, R2:10~150ul (1ul stepping), supporting reagent from different brand | |||||
Temperature Control | continuous 2C~8Ccooling within 24 hours | |||||
Reagent Probe | Having liquid level induction function | |||||
Probe cleaning | Automatic washing both interior and exterior | |||||
Reaction unit | Reaction Time | 10 minutes | Temperature | 37C±0.1C | ||
Cuvettes | 120 reaction cuvettes (optical path length 6mm) | |||||
Mixer | after injecting reagent and sample, blending immediately | |||||
Cleaning | automatic water cleaning and drying system | |||||
System Adjustment | System record the blank value and get more accurate result by deducting blank base value of each cuvette | |||||
Optical System | Light Source | 12V/30W halogen-tungsten lamp, 2000 hours | ||||
Receiver | 8 precision photo receivers | |||||
Wavelength Range | 340,405,450,510,546,578,630,700mm | |||||
Calibration and QC | Calibration | one-point,multi-point | Linear Range | 0.000~2.500Abs | ||
Quality Control | Inserting quality control at random. | |||||
Software | Emergency Function | emergency sample can be arranged at any time | ||||
Software | Windows XP or 7, sample and easy to operate | |||||
Data Processing | Having reaction curve detection and data display function in whole process. | |||||
Others | Power Supply | AC220V+22V/50Hz+1Hz | ||||
Dimension | 1070mm×910mm×1230mm (W*D*H) | |||||
Weight | 180kg | |||||
| | | |
BK-280 Auto Chemistry Analyzer | BK-400(CRYSTAL) Auto Chemistry Analyzer | BK-500(DIAMOND) Auto Chemistry Analyzer | BK-800(EMERALD) Auto Chemistry Analyzer |
