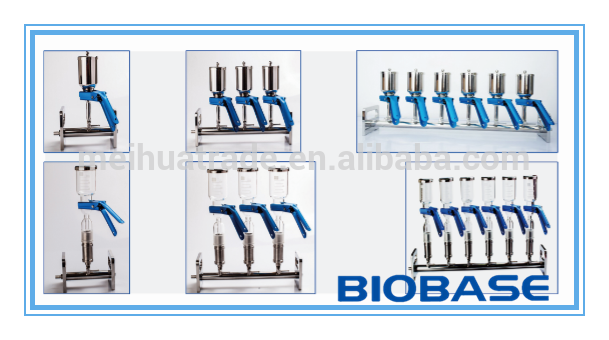

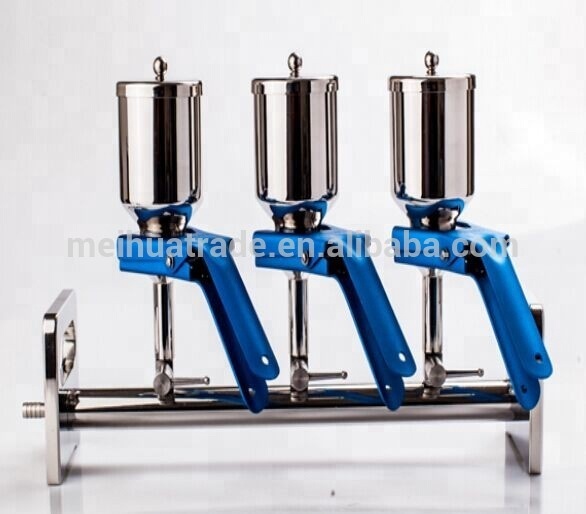

Biobase Laboratory 3-Branch Manifold, Manifolds Vacuum Filtration
Features
- It can be widely used in chemistry analysis, pharmaceutical , sanitation test , water quality analysis, science research fields and so on.
- It is convenient to filtrate several samples at the same time.
- Each holder has individual control valve, so one vacuum pump can support operations of single and multi-branch manifold filter.
- 316L stainless steel holder, corrosion resistance, acid and alkali resistance.
Technical Parameters
Model | Type | Funnel | Support screen & pore size | Connection | Holder | Package Size(W*D*H) | G.W |
MVF-1G | 1-branch | Glass | PTFE, 20 μm | Ground Joint | SS316 | 270*230*130mm | 3kg |
MVF-1S | SS316 | SS316,100 μm | Integral, SS316 | SS316 | 270*230*130mm | 3kg | |
MVF-3G | 3-branch | Glass | PTFE, 20 μm | Ground Joint | SS316 | 480*260*130mm | 6kg |
MVF-3S | SS316 | SS316,100 μm | Integral, SS316 | SS316 | 480*260*130mm | 6kg | |
MVF-6G | 6-branch | Glass | PTFE, 20 μm | Ground Joint | SS316 | 900*260*130mm | 11kg |
MVF-6S | SS316 | SS316,100 μm | Integral, SS316 | SS316 | 900*260*130mm | 12kg |
Certification
We are certificated by ISO9001, ISO3458, ISO14001, CE Mark, MET and NSF 49, EN 12469.
Fast Transportation
Shipped in 15 days after payment
