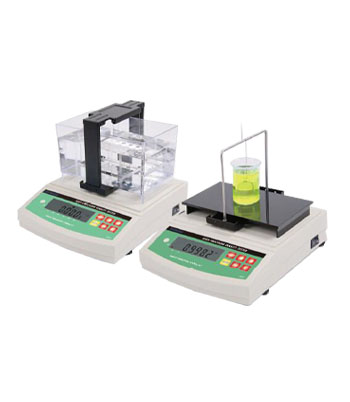

Electric Densimeter Digital Densitometer Density Meter
Product description
Electric Densimeter Digital Densitometer Density Meter
It is suitable for the field of quality management, cost control, new formula researching, new materials researching, scientific academies, quality inspection. etc.
Any forms of solid could be measured, including objects of hydroscopicity, non-absorbency, high-viscosity. Measurement of liquids such as volatile liquid, corrosivity liquid, vicious liquid, strong acid and strong lye liquid need optional accessories.
Technical parameter
Electric Densimeter Digital Densitometer Density Meter
Model | BK-DMH120D | BK-DMH300D | ||
Capacity | 0.001~120g | 0.005~300g | ||
Density Resolution | 0.0001 g/cm3 | 0.001 g/cm3 | ||
Density Range | 0.0001~99.9999g/cm3 | 0.001~99.999g/cm3 | ||
Measuring Time | About 5 s | |||
Solid Mode | Measuring Principle | Archimedes principle | ||
Measurable Items | Density of general non-absorbency solid. Density of porosity materials. Oil length of oil bearing. Porosity of porosity materials. DIN volume abrasion loss of rubber. Powder density. Water absorption rate | |||
Specific Gravity Measuring Frame | Unibody injection forming professional specific gravity measurement frame Size: 135*50*116mm( L*W*H) | |||
Measuring Tank | Unibody injection forming transparent professional measuring tank Size: 169*98*83 mm ( L*W*H) | |||
Mixed Material Percentage | Function introduction | Automatically read the percentage of the main material in composite which consist of two materials | ||
Setting | Freely set the density value of main material and subordinate material | |||
Display | Density value, percentage of main material | |||
Liquid Mode | Measuring Principle | Archimedes principle displacement method | ||
Weight Value Data Storage | 3 groups | |||
Specific Gravity Measuring Frame | Stainless steel specific gravity measuring frame | |||
Result Display | Density and Baume value | |||
Result Testing Method | Distilled water testing | |||
Calibration Mode | Auto correction, auto detection | |||
Standard Accessories | Common Use: Tweezer, thermometer, 100G weight, windshield, power transformer Solid Use: Tank, testing board, a set of particle measuring assembly, a set of floating body measuring assembly Liquid Use: Measuring plate, measuring frame, DE-20A standard liquid measuring assembly | |||
Optional Accessories | DE-40 printer, DE-20B anti corrosive liquid measuring assembly | |||
Power Supply | AC 110/220V±10%, 50/60HZ | |||
Package Size(W*D*H) | 450*200*360 | |||
Gross Weight(kg) | 4.5 | |||
Features
Electric Densimeter Digital Densitometer Density Meter
l Automatically judge whether density is qualified or not and prompt alarm.
l Automatically zero tracking, buzzer warning, and overload warning.
l Water and other liquids could be used as measuring medium.
l Samples with the temperature from normal to 100℃ can be measured.
l RS-232C is included.
