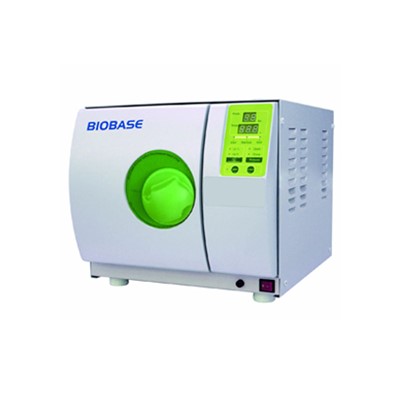

Biobase Class B series Table Top Autoclave Sterilizer for Dental Use
Features:
1. Adopting European N standard, with thermal vacuum and drying functions, it can be used for A-type hollow instruments and solid instruments. Thermodynamic vacuum guarantees elimination of cold air from the cavity and makes sure that reaches the optimal effect of sterilization.
2. Specially design for dental clinic field, it could sterilize 12 pieces hand piece at same time, simply and efficiently.
3. Microprocessor control, LCD or LED display and modularized panel for easy operation.
4. Automatic malfunction detection system makes easy maintaining.
Model | BKM-Z18N | BKM-Z24N | |
Capacity | 18L | 24L | |
Sterilization Class | Class N (according to EN 13060 standard) | ||
Sterilization Temp. | 121℃,134℃ | ||
Drying Procedure | Heating dry | ||
Display | LED display | ||
Testing System | B&D test | ||
Control Precision | Temperature: 1℃ | ||
Pressure: 0.1bar | |||
Sterilization Data | Optional Mini printer | ||
Safety System | Hand lock door | ||
Pressure lock system | |||
Relief valve in case of over pressure | |||
Pressure or temperature over load protection | |||
Alarm for system failure, finish reminding, water level warning | |||
Water Supply System | Build-in water tank, easy to clean | ||
Water tank capacity | 4L | ||
Water Consumption | 0.16L~0.18L in one cycle | ||
Tray Holder | 3 pcs SS trays on SS shelf | ||
Chamber | Medical stainless steel 304 unibody structure | ||
Max working pressure:2.3bar | |||
Min working pressure: -0.9bar | |||
Max temperature: 145℃ | |||
Ambient Temp. | 5~40℃ | ||
Noise | <50dB | ||
Power Supply | 110/220V±10%, 60/50Hz | ||
Power Consumption | 1500W | 1700W | |
Chamber Size(mm) | φ245×360 | φ245*470 | |
External Size(mm) | 560*450*400 | 670*450*400 | |
Packing Size(mm) | 660*525*495 | 770*525*495 | |
Gross Weight(kg) | 53 | 60 | |
- BIOBASE set up in 1999,initially focus on Biological Science and Technology.The initial product is Air Protection Products which include Biological Safety Cabinets,Clean Bench and Fume Hood.
- In 2005,BIOBASE is the first manufacturer getting Class III SFDA Certificates for Biosafety Cabinet in China.
- In 2006,BIOBASE built International Sales Department.Our products have been exported to more than 110 countries all over world till 2013.
- In2007,BIOBASE achieve the registration certificate of auto Biochemistry Analyzer and reagents,explored a new field--medical inspection instruments area.
- In 2010,we get MET,NSF49 and EN12469 Certificates.
- In 2014,first foreign branch office was established in Bangalore,India.
- In 2016,The warehouses in the US,Spain and Jordan were set up,to ensure rapid delivery around world.
Pre-sale service
- 24hours online to ensure quick response to customers" inquiry or online message;
- Guide customers to choose the best suitable machine model;
- Offer detailed specification and competitive prices;
Contract execution
- Machine production will be arranged strictly according to the contract;
- Machine photos will be sent to you for inspection during production;
- Update latest news after delivery and prepare customs clearance;
After-sale service
- Broken spare parts (except for wear parts) will be sent for free due to quality problems;
- In time response to customers technical problems;
- New products update for customers" reference
Each year, we BIOBASE attend many world famous exhibitions, such as
Medica, Pittcon, AACC, Analytica, Analytica Latin America, Lab Asia, Arab Health, Arab Lab,CMEF...Hope to talk with you face to face!
Packaging Details:Cartoon or wooden box with water-proof wrapper.
Delivery Detail:shipped in 1-2 weeks after payment.
