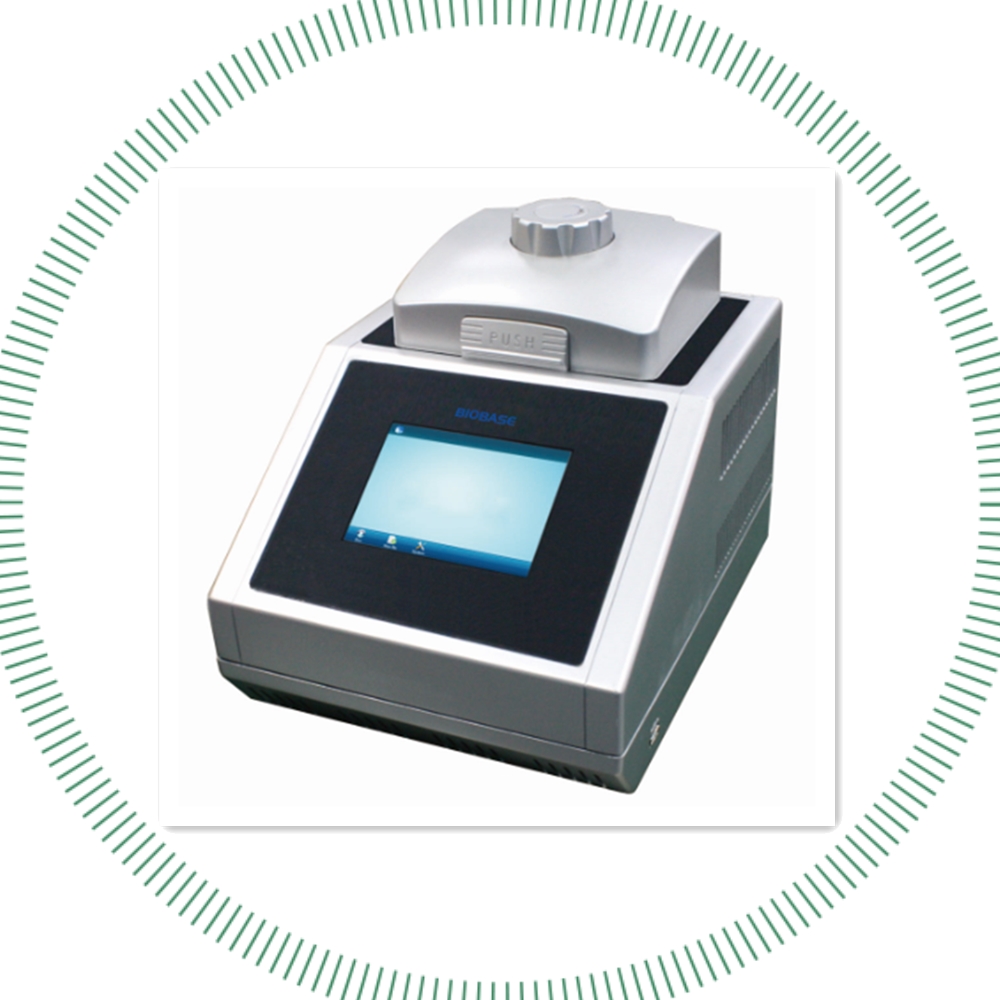

DNA PCR Machine Thermal Cycler Portable Lab PCR Thermal Cycler
Product description
DNA PCR Machine Thermal Cycler Portable Lab PCR Thermal Cycler
Technical parameter
DNA PCR Machine Thermal Cycler Portable Lab PCR Thermal Cycler
Model | BK-EO |
Sample capacity | 96-PCR plate(full-skirted) 96*0.2ml tubes 12*8-strip |
Cooling technology | Peltier-based |
Display | LCD display and touch creen(5.7 inch) |
Temp. Range | 4.0-99.9℃ |
Heating speed of ramping | Up to 4℃/sec |
Cooling speed of ramping | Up to 4℃/sec |
Temp. uniformity | ≤±0.3℃ |
Temp. accuracy | ≤±0.1℃(50℃), ≤±0.2℃ (≥90℃) |
Temp. control modes | BLOCK or TUBE |
Ramping range adjustable | 0.1℃-4℃ |
Memory | ≥250 typical programs onboard, unlimited with USB flash drive expansion |
Max. No. of cycle | 99. Suitable for nested PCR |
Time up/down | 0-9 min 59s, suitable for long PCR |
Temp. up/down | 0-9.9℃,suitable for touchdown PCR |
Auto pause/power protection | YES |
Soak function | Yes |
Gradient range of temp. difference | 1-30℃ |
Gradient range | 30-99.9℃ |
Hot-lid Temp. range | Room temperature +5℃-110℃(default 105℃) |
Height of hot-lid | Automatic Adjusted |
Auto shut-off function of hot lid | While block temperature is lower than set temperature or program ends, the hot-lid will be automatically closed |
Communication Interface | USB |
Power supply | 100-240V, 50/60Hz, 600W |
Dimension | 335*260*270mm |
Packing size(L*W*H) | 495*410*395mm |
Gross weight | 10.5KG |
Certificates | Ferrotec Peltier/CE/RoHS2.0 |
Features
DNA PCR Machine Thermal Cycler Portable Lab PCR Thermal Cycler
1. Intuitive interfaces
2. Superior performance
3. Multiple temperature control modes
4. Gradient function thermal cycler
5. Smart block
6. Three modes of operation for your choice
