Model

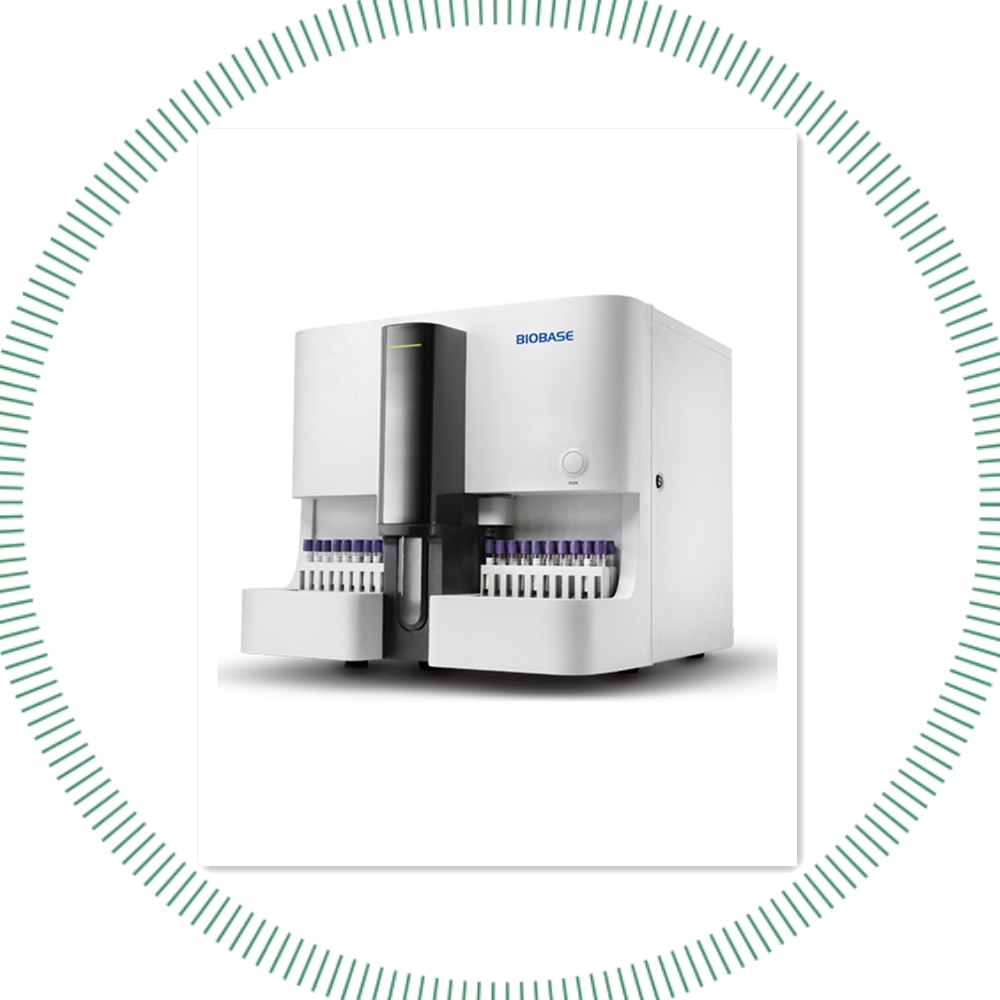

BK-6300

Principle

Impedance method for WBC, RBC, PLT counting

Cyanide-free reagent for Hemoglobin test

Flow Cytometry (FCM), Semi-conductor Laser scatter, chemical dye method, independent Basophil channel

Parameters

WBC, Lym%, Lym#,Mon%, Mon#,Neu%, Neu#,Eos%, Eos#, Bas%, Bas#,
RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, PDW, MPV,
PCT, and 4 research parameters LIC%, LIC#, ALY%, ALY#

3 DIFF scatter grams and 1 BASO scatter gram, 3 histograms

Throughput

Up to 60 samples per hour

Sample Volume

Whole Blood: 15ul

Pre-diluted: 20ul

Test Mode

CBC, CBC+DIFF

Performance

Carryover

Repeatability

Linearity

WBC

≤0.5%

≤2.0% (4-15×10⁹/L)

0.00-300×10⁹/L

RBC

≤0.5%

≤1.5% (3.5-6.0×10¹²/L)

0.00-8.5×10¹²/L

HGB

≤0.5%

≤1.5% (110-180g/L)

0-250g/L

PLT

≤1.0%

≤4.0%  (150-500×10⁹/L)

0.00-3000×10⁹/L

Data Storage Capacity

Up to 50,000 results including numeric and graphical information

Communication

LAN port supports HL7 protocol

Operating Environment

Temperature: 15℃-30℃

Humidity: 30-85%

Air Pressure: 70-106 kPa

Power Requirement

A.C. 100-240V,  ≤300VA, 50/60Hz

Dimension and Weight

Package Size: 630mm(L)*570mm(W)*590mm(H)

Gross Weight: 35kg
