Home > Products > 2019~BIOBASE Automatic and Semi-automatic Microtome Manual Rotary Microtome

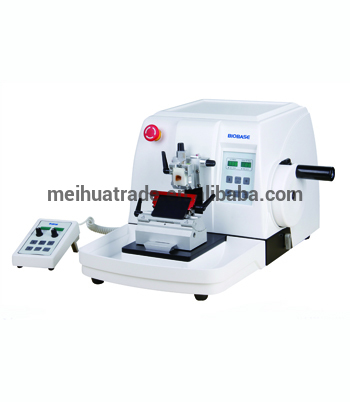

2019~BIOBASE Automatic and Semi-automatic Microtome Manual Rotary Microtome

Click on the image to view the original image

Product：	views：32019~BIOBASE Automatic and Semi-automatic Microtome Manual Rotary Microtome
Branch：	BIOBASE
Type：	Clinical Examination Aids
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-12-03 18:45

Product Details

Overview

Quick Details

Type:: Clinical Examination Aids

Brand Name:: BIOBASE

Model Number:: BK-398A

Place of Origin:: Shandong, China

Instrument classification:: Class I

Mode:: Automatic or Manual Mode

Function:: Sectioning, trimming,

Retraction Range:: 0~50μm( If 0 is set, retraction function is off ) 5~50

Display:: LED display

Sectioning Thickness Range:: 0.25~100μm

Whole Layer Clearance Distance:: 10~6000μm

Specimen Horizontal Feed:: 28mm

Specimen Vertical Stroke:: 70/52mm

Specimen Holder Rotation:: Any angle within 360°

Specimen Orientation:: XY- 8°

Supply Ability

Supply Ability:: 200 Piece/Pieces per Month

Packaging & Delivery

Packaging Details: International standard packing

Port: Qingdao/Shanghai

Lead Time:

Quantity(Pieces)	1 - 5	>5
Est. Time(days)	10	To be negotiated

BIOBASE 2019 Automatic and Semi-automatic Microtome Manual Rotary Microtome

BIOBASE

Features:

* Large-volume removable waste tray on the top of housing, convenient to use

* Imported cross-roller guide rails andhigh-precision screw motion mechanism

* Fast switching between paraffin block clamp and cassette clamp

* Hand-wheel balance can be is precisely adjustedand can be locked at any position,ensuring safetyand convenience of sectioning

* Blade holder can be laterally movedwithout direct contact,enabling use of the entire length of the blade. (three different segments)

* The red bar on the blade holder covers the whole length of blade to protect the user and enables easy changing of the blade

* Automatic sectioning speed is adjustable (BK-MT398A only)

* Auto slicing controller ensures trimming and slicing switching easily; When it is off, semi-auto slicing or trimming is available; (BK-MT398A only)

* Safety and emergency braking systems,security alarm systems, driver-overload protection and auto-sleep protection system; (BK-MT398A only)

* Control system with 3 modes: conventional mode, intelligence sensing mode and whole layer cutting mode;(BK-MT390S only)

Model	BK-MT398A(BK-2498)	BK-MT390S(BK-2488)		BK-MT358S(BK-2478)
Mode	Automatic or Manual Mode without intelligent sensing	Semi-automatic with intelligent sensing		Semi-automatic without intelligent sensing
Function	Sectioning, trimming, fast forward, fast backward, quick conversion; automatic retraction (except BK-MT358S).
Retraction Range	0~50μm ( If 0 is set, retraction function is off ) 5~50 (Retraction distance is optional in this range, and increment is 5μm, such as, 5, 10, 15, 25...)			/
Display	LED display: sectioning thickness, trimming thickness, slice count, slice speed.	OLED Display: sectioning thickness, trimming thickness, slice count.		LCD Display: sectioning thickness, trimming thickness, slice count.
Sectioning Thickness Range	0.25~100μm 0.25~2.5μm increment 0.25μm 2.5~5μm increment 0.5μm 5.0~10μm increment 1μm 10~30μm increment 2μm 30~60μm increment 5μm 60~100μm increment 10μm			0~60μm 0~1.0μm increment 0.25μm 1~10μm increment 1μm 10~20μm increment 2μm 20~60μm increment 5μm
Trimming Thickness Range	1~600μm 1~10μm increment 1μm 10~20μm increment 2μm 20~50μm increment 5μm 50~150μm increment 10μm 150~600μm increment 50μm			0 ~100μm 0 ~1μm increment 0.25μm 1 ~10μm increment 1μm 10~20μm increment 2μm 20~60μm increment 5μm 60~100μm increment 10μm
Whole Layer Clearance Distance(Only for BK-MT390S)	10~6000μm (10, 12, 15, 20.....6000, after 15μm, the increment is 5μm) Alarm when required slice finishes sectioning.
Specimen Horizontal Feed	28mm
Specimen Vertical Stroke	70mm				52 mm
Specimen Holder Rotation	Any angle within 360°
Specimen Orientation	XY – 8°
Mini. Sectioning Thickness	0.25μm
Max. Specimen Size	70*70mm				50*50mm
Feed Speed	1500μm/s-3500μm/s				/
Precision	±5%
Standard Accessory	Cassette Clamp or Paraffin Block Clamp(Cassette Clamp is acquiescent))
Power Supply	AC110/220V±10%, 50/60Hz
Consumption	150W		100W		100W
External Size(WDH)	580475340mm		575420330mm		585410305mm
Package Size(WDH)	690590500mm		670550480mm		670550480mm
Gross Weight	49kg		45kg		45kg

♦ Company Information
Founded in 1999, having 1400 employees (till September, 2016), BIOBASE Group is a new high-tech enterprise focusing on development, production and management of scientific equipment, In Vitro Diagnosis (IVD) instrument and reagent.

BIOBASE Group is specialized in products of 8 areas include medical diagnosis, biosafety protection, disinfection and sterilization, water purification system, infant care products, cold chain products, software products, clean room project.

BIOBASE Group have completed the construction of BIOBASE first industrial park in Zhangqiu, covering an area of 80,000 square meters, second industrial park in Tangye new district, covering an area of 160,000 square meters, and USA incubator in Silicon valley, covering an area of 2000 square meters.

BIOBASE Group has certificates include ISO9001, ISO13485, ISO 14001, SGS, CE, NSF, EN, FDA, etc.

BIOBASE Group has set up branch offices in 24 provinces in China, and has also set up warehouses in the United States, India, Jordan, Germany and Spain. We now have long-term business partners in more than 130 countries.

BIOBASE Group always adheres to the mission of “service for heath for the future” and promote company’s culture vigorously. Providing with high quality products and good service, BIOBASE would like to establish win-win business cooperation with distributors all over the world.

◊Company Photo

◊BIOBASE Attend Global Exhibitions

◊Certification

Pursuing the highest quality is the tenet of BIOBASE
