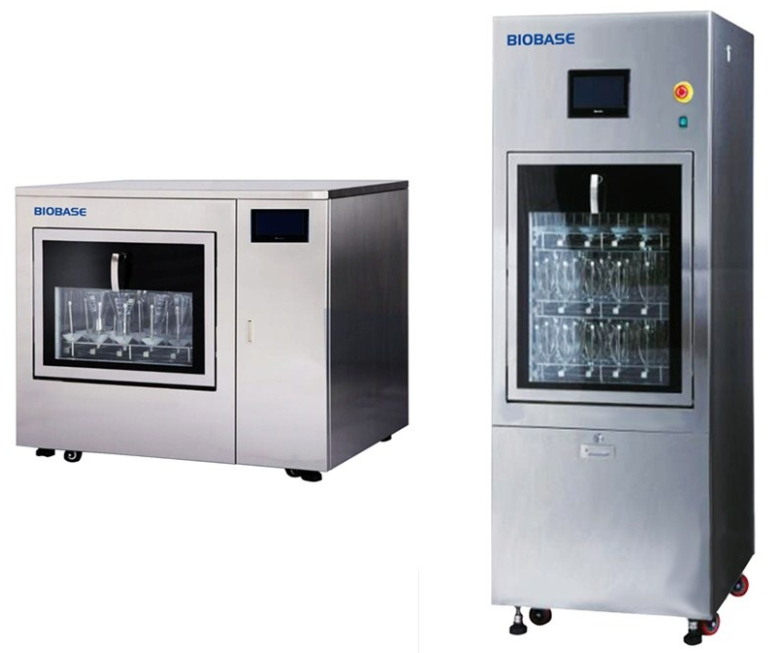

Automatic Glassware Washer/Stainless Steel Labware cleaning machine
Features:
1. High efficient cleaning system, designed with European reliable pump, optimized spray arm and nozzles, and self-cleaning program .
2. Rapid and efficient drying system, designed with independent air heater, HEPA filter and drying process .
3. Water heating temperature can reach 99℃, while hot air drying temperature can reach 120℃ .
4. Professional configuration design—stainless steel for corrosion resistance;reinforced glass window mounted to achieve a clear view on washing process .
5.PLC touch screen control with preset 6 programs(including one customized program) .
6. Safety protection—electronic security door lock to prevent unexpected door opening, water & drying air temperature dual control and equipped with emergency switch .
7. Standard Washing Procedure (can be self-designed by the user)
Pre-cleaning→Washing with cleaner→Rinse→Washing with neutralization→Rinse→Washing with hot water→Drying
Technical parameter:
Model | BK-LW120 | BK-LW220 | BK-LW320 | BK-LW420 |
Capacity(L) | 120 | 220 | 320 | 420 |
Water Consumption/Cycle(L) | 15 | 15 | 18 | 25 |
Inlet Water Pressure(Mpa) | 0.3~0.8 | |||
Noise | ≤50dB | ≤55dB | ≤60dB | |
External &Internal Material | Stainless steel | |||
Power Supply(V/HZ) | 220/50/60 | 220/50/60, 380/50/60 | 380/ 50/60 | 380/50/60 |
Overall Power Consumption (KW) | 6 | 6.5/17 | 18 | 20 |
Power Consumption- Water Washing(KW) | 1.1 | 1.5 | 2.8 | 2.8 |
Power Consumption- Water Heating (KW) | 5 | 5/15 | 15 | 17 |
Power Consumption- Drying (KW) | 2.1 | 3.6 | 3.6 | 3.6 |
Cleaning Racks | 1 pcs | 2pcs | 3pcs | 2pcs |
Washer Chamber Size (W*D*H )(mm) | 600*629*465 | 600*629*658 | 600*629*820 | 688*700*703 |
External Size (L*W*H mm) | 980*740*855 | 790*690*1770 | 790*690*1850 | 1100*900*1950 |
Packing Size (L*W*H mm) | 1080*990*1065 | 990*840*2090 | 990*840*2250 | 1300*1040*2235 |
Gross Weight | 150kg | 330kg | 400kg | 450kg |
Optional Accessories | USB interface, printer ,Cleaning racks | |||

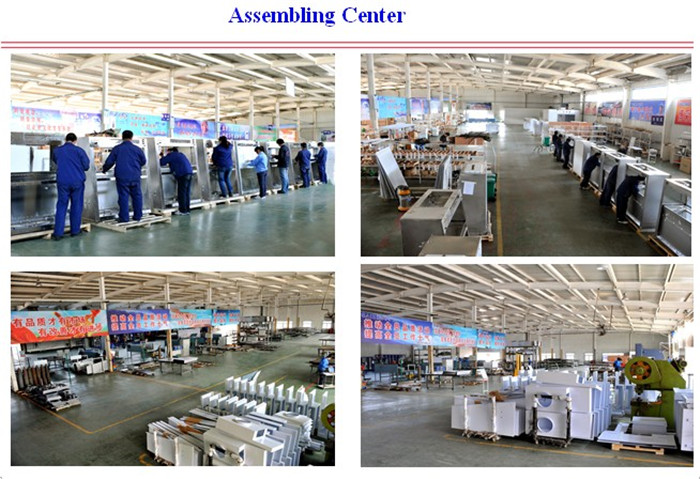

BIOBASE group, founded in 1999 and been through high and stable development for 15 years, who is now with revenues of one hundred million, 1200 employees in China and abroad offices, 22.4 acres land industry parks and 20000 square meters production base.
The products we manufacture extend to most of the laboratory items and scientific analytical equipment. Our mission is to enable our customers to make the world healthier, cleaner and safer.
BIOBASE group invests in science and technology research, aim to keep improving products performance and quality as well as develop new products to meet customer’s wide requirement.
We satisfy our customers by offering comprehensive support, purchase convenience and we are ready to serves more and more BIOBASE users.
BIOBASE group, serving global distributors and its loyal end users, is becoming one of the most important scientific services suppliers.
