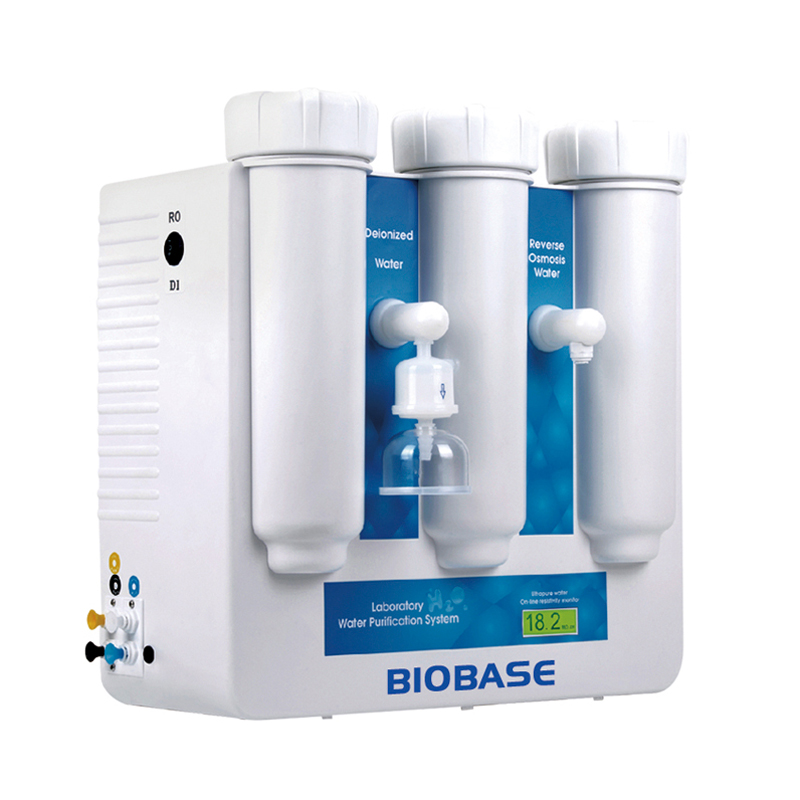

BIOBASE High Quality Water Purification System /Water purifier for Lab
Technical parameters:
Model | SCSJ-II | SCSJ-III | ||

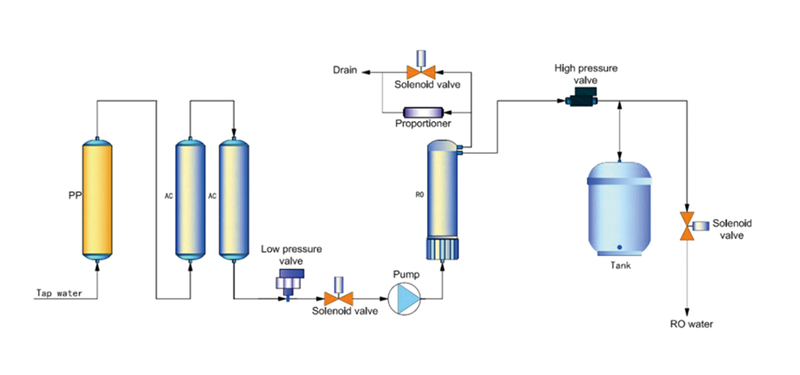

Flow procedure | PF+AC+RO+DI | PF+AC+RO+DI | ||
Application | Buffer disposing Physical and chemical analysis | |||
| Fine chemistry industry GC/HPLC | |||
| Inlet water for Ultra pure water machine | |||
| Aseptic drinking water | |||
Feed water requirement | Tap water: TDS<200ppm,5-45°C, 1.0-4.0Kgf/cm2 | |||
| (if inlet TDS>200ppm, extra pretreatment is recommended) | |||
Purification system | Pretreatment unit | Special spun fiber filter×1+ Special active carbon block filter×1+ Special active carbon block filter×1 | ||
| RO unit | 100GPD RO membrane*1 | 100GPD RO membrane*2 | |
| Subsequent unit | Mixed bed resin cartridge*2 | Mixed bed resin cartridge*3 | |
Pure water quality
| Desalination rate% | Nearly 100 | ||
| TDS | RO water:5-10 ppm | ||
| Resistivity | 15-18.2MΩ.cm | ||
| Conductivity | 0.067-0.055μs/cm | ||
Output(25°C) | 15 liters/hour* | 30 liters/hour* | ||
Flow rate | 2 Liters/min(with pressure tank) | |||
Pure water outlet | RO water, deionized water | |||
Control system | Automatic electronic pressure sensor, RO membrane auto flushing, automatic stop without water, automatic stop when water tank full, automatic cutting off if pump stopping, guaranteeing 24 hours" work. | |||
Water quality test | TDS test pen +on-line resistivity monitor | |||
Power supply | AC110-220V,50/60Hz, 48W plus model:72W | |||
Package size | L×W×H:41*22*42cm/12-14kg | |||
Standard configuration | Main body(including:1 set cartridge+ 4.0 gallon water tank+ TDS pen+accessory box
Pure water outlet
Pure water outlet Pure water outlet Control system | |||
