BIOBASE Vein Illuminator/vein illumination system infrared vein finder
Vein Illuminator projects near-infrared (no radiation) light which is absorbed by blood and reflected by surrounding tissue, and this information is captured and processed, finally projected in real time directly on the surface of the skin.
It provides a real time accurate image of the patient"s superficial pattern on the skin of patient.
Features of Vein Illuminator:
Features:
Color: 5 colors adjustable, for different patient complexions and personal preference.
Inverse: Allows clinicians to highlight the veins or highlight the surrounding tissue, for reducing the interference of complexions, density of hair follicles and room brightness.
Brightness: 3 degree brightness adjustable, allows clinicians customizing the image brightness base on the environment light.
Size: 3 kinds of image sizes, for pediatric patients or the situation only need to focus on one vessel.
Enhanced mode: Helpful for find the small or deep veins.
Technical Parameter:
Model | BK-VS300 |
Light type | Near-infrared light |
Infrared wavelengths | 850 nm |
Image resolution | 720*480 |
Visible vein size | ≥ 1 mm |
Accuracy | 0.25 mm |
Depth of visible vein | ≤ 12 mm |
Best projection distance | 200 ± 20 mm |
Image frame rate | 20 FPS |
LED lifetime | 20000 hours |
Power supply | DC3.7V, ≈ 3.5W |
Battery volume | 4400mAH |
Battery working time | ≈ 5 hours |
Charging time | ≈ 3 hours |
Battery detachable | Yes |

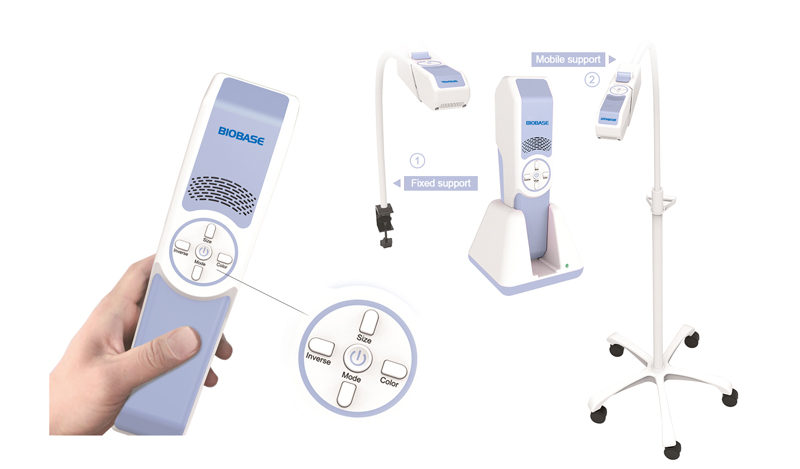

Operating mode | Handheld or Suspension |
Weight (the imaging unit) | 450g (battery included) |
Dimensions (the imaging unit) | 240*60*60 mm |
Package Size | 650*620*170mm |
Gross weight | 7kg |

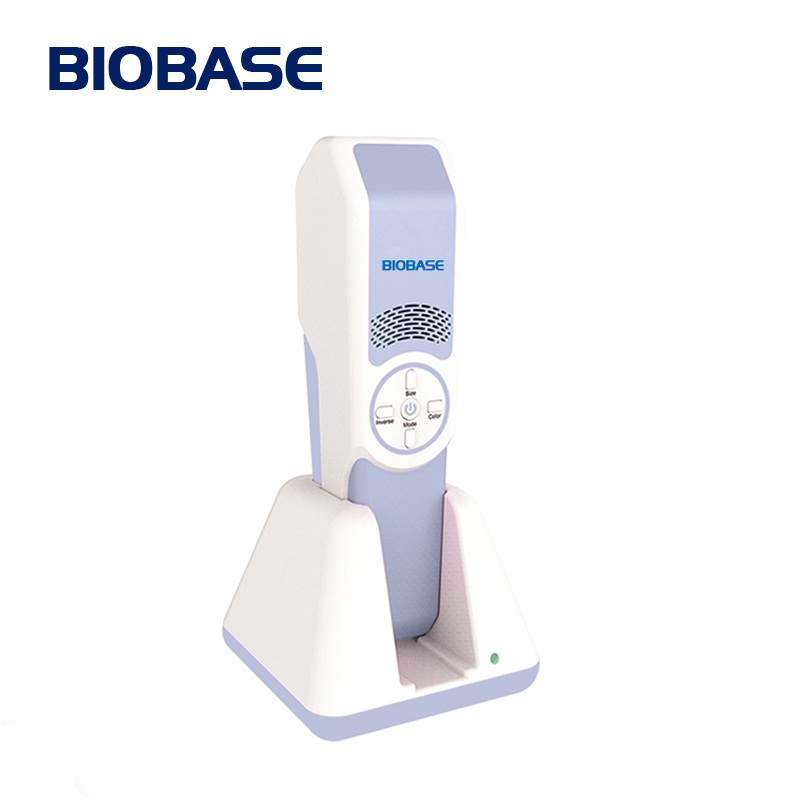

BKVI-300 handheld model vein illuminator includes main unit, battery (1pcs), charging base.
| |
