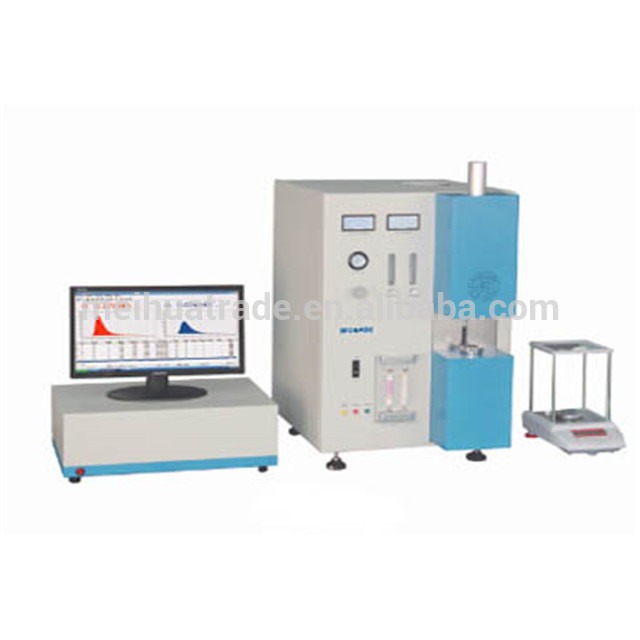

BIOBASE determine percentage carbon sulfur in steel iron alloy nonferrous metal Tabletop Infrared Carbon & Sulfur Analyzer Price
Features of Tabletop Infrared Carbon & Sulfur Analyzer
Automatic leak detection, diagnosis function.
Electromagnetic valve and gas path system.
High pressure dust removal and collection system.
Analysis software
Using Deliph software compiler, WINDOWS XP, Win7, Win8, Win10 system.
Using the drop-down menu and shortcut operation, With the functions of multi-user administrator, curve fitting, coefficient correction, treatment of results, printing, system diagnosis and others.
Infrared detecting pool
Gold-plating carbon sulfur analysis pool and high precision of pyroelectric infrared detector.
New platnum infrared light source, heating duration, spectral characteristics of high efficiency. Microstepping motor, good thermal stability.
High precision pump
In response to the input pressure change, to ensure that the analysis of gas flow. Constant output, so as to ensure the stable and reliable analysis results.
Control circuit
Double CPU modular design, high integration, stable and reliable. 24 bit high speed sampling chip, high sampling precision.
Large power high frequency oscillating circuit
Current / Voltage / Power / Choosing the way to regulate the furnace temperature, suitable to various materials of samples.
Parameters of Tabletop Infrared Carbon & Sulfur Analyzer
Working principle | High-frequency inductive combustion and infrared absorption system |
Sample weight (Solid steel) | Standard 0.5g |
Accuracy (min) | C/S: 0.1ppm |
Analysis time | 20-100s adjustable (normally: 35s) |
Working cycle | 24 hours |
The difference between CSA-995 and CSA-996:
Model | CSA-996 | CSA-995 |
Appearance | Separate work station, with vertical high-frequency furnace, | Desktop detector, with desktop high-frequency furnace, save space |
Analysis range | C: 0.0001%-10.0000% (can be extended to 99.999%) S: 0.0001%-2.0000% (can be extended to 99.999%) | C: 0.0005%-6.0000% (can be extended to 99.999%) S: 0.0005%-0.35000% (can be extended to 99.999%) |
Consumption | 2.5KW | 2.2KW |
Standard spare parts | 2000 times effective analysis of spare parts | 1000 times effective analysis of spare parts |
Packing Size (W*D*H) | 780*610*1430mm 1580*780*930mm | 770*600*970mm 1100*600*900mm |
Gross Weight | 330kg | 220kg |
