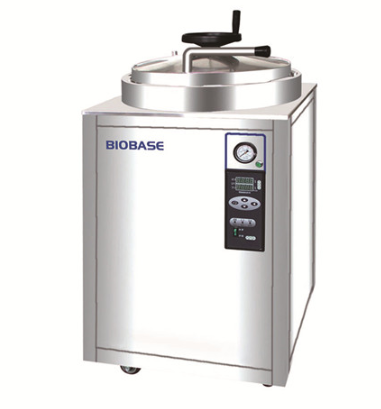

class b dental autoclave or used for food sterilization autoclave
class b dental autoclave or used for food sterilization autoclave
Technical Features:
1. Complete process of filling water, dynamic pulse exhaust, heating, sterilizing, draining and drying runs
automatically.
2. LED screen displays all steps of full process as well as error codes.
3. Sterilization programs for dressings, equipment, rubber, culture medium, waste, etc.
4. Adopting certain temperature (98~102℃) exhaust method and dynamic pulse exhaust method to completely
empty the cold air inside chamber for ensuring steam saturability.
5. Automatic selecting quick or low exhaust to avoid sterilization liquid overflowing.
6. Inner stainless steel water tank for water and steam to circulate inside. Steam does not exhaust during
sterilization, so as to keep the outside clean and dry.
7. Independent quick service window, easy for repairing and maintenance.
8. Water inlet filter to keep high water quality.
9. Hand wheel type of quick-open door structure, self-expandable sealing ring, easy operating and safe.
10. Optional printer for recording sterilization data.
class b dental autoclave or used for food sterilization autoclave
Model | BKQ-B50(II) | BKQ-B75(II) | BKQ-B100(II) | BKQ-B120(II) | BKQ-B150(II) | BKQ-B200(II) | |
Capacity | 50L | 75L | 100L | 120L | 150L | 200L | |
Chamber size(mm) | φ386×500 | φ386×682 | φ386×875 | φ386×1055 | φ500*760 | φ500*1000 | |
Chamber material | 304 medical stainless steel | ||||||
Max designed pressure | 0.28Mpa | ||||||
Max designed temp | 150℃ | ||||||
Working pressure | 0.175MPa | 0.217MPa | |||||
Working temp. | 105~136℃ | 50~134℃ | |||||
Temp. accuracy | ±0.1℃ | ||||||
Timing range | 0~999min | ||||||
Dynamic pulse exhaust times | 0~9 times | ||||||
Dynamic pulse exhaust temp. | 105~134℃ | ||||||
Dissolution temp. range | 60~100℃(programmable) | ||||||
Temp. holding range | 40~60℃(programmable) | ||||||
Power supply | 110/220V, 60/50Hz | 220V, 50/60Hz | 380V, 50Hz | ||||
Power consumption | 4.4KW | 4.7KW | 5.2KW | 5.2KW | 6KW | ||
SS basket | 1 pc | 2pcs | 2pcs | 3pcs | 3 pcs | 4pcs | |
External size(mm) | 550x640x970 | 550x640x1070 | 550x640x1270 | 550x640x1370 | 715*720*1350 | 715*720*1550 | |
Packing size(mm) | 765*700*1150 | 765*700*1230 | 756*700*1450 | 756*700*1650 | 760*800*1500 | 760*800*1690 | |
Gross weight | 110kg | 114kg | 120kg | 140kg | 180kg | 200kg | |
Please contact me if you need more information.
