Click on the image to view the original image
- Type:
- Bio-Separation System
- Brand Name:
- BIOBASE
- Model Number:
- BFA-2
- Place of Origin:
- Shandong, China
- Instrument classification:
- Class I
- Temp. range:
- RT+5℃~300℃
- Measuring range:
- 0.1~100%
- Temperature accuracy:
- ±1℃
- Repeatability:
- ≤1%
- Sample weight:
- 0.5~15g
- Capacity:
- 6pcs
- Solvent cup volume:
- 150ml
- Solvent recovery:
- ≥85%
- Power consumption:
- 2.6KW
- Power supply:
- AC 220V±10%, 50HZ
- Supply Ability:
- 100 Unit/Units per Month
- Packaging Details
- packing detail:carton/wooden boxes
- Port
- qingdao
- Picture Example:
![package-img]()
Lab Soxhlet extraction principle automatic crude Fat Analyzer

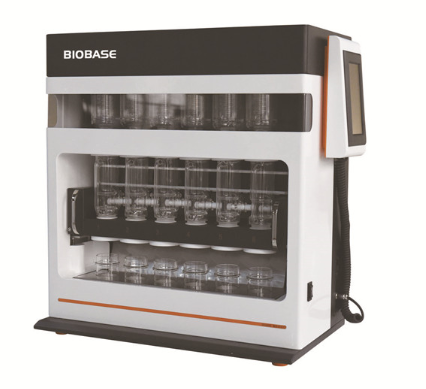

BFA-2 Fat Analyzer
BFA-2 Fat Analyzer is based on the Soxhlet extraction principle and integrates such functions as soaking, extraction, leaching, heating, condensation and solvent recovery.
*4.3’’ LCD screen andMicrocomputer control system.
* Integral dry heating, wide scope and high precision of temperature control.
* Electric circuit is isolated from the extraction space, ensuring devices security.
* Over-temperature alarm and timer reminding functions.
* Abundant interface contents give simultaneous display of given temperature, actual temperature,settime and heating time
* Unique air insulation for temperature heating protection and constant temperature.
Model | BFA-2 |
Temp. Range | RT +5℃~300℃ |
Measuring Range | 0~100% |
Temperature Accuracy | ±1℃ |
Sample Weight | 0.5~15g(generally 2~5g, depending on sample) |
Capacity | 6pcs/batch |
Solvent Cup Volume | 80ml |
Solvent Recovery | ≥80% |
Consumption | 1KW |
Power Supply | AC 220V±10%, 50HZ |
External Size(W*D*H) | 650*320*715mm |
Package Size(W*D*H) | 735*410*880mm |
Gross Weight | 54.5kg |
