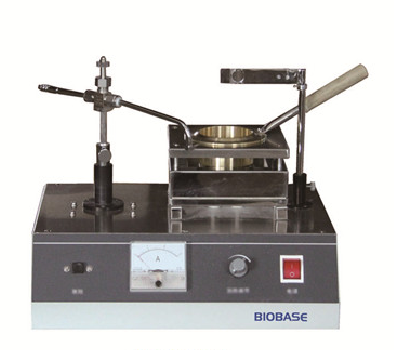

Open-Cup Flash Point Tester
It is applicable to all petroleum products with flash points above 79℃ and below 400℃ except fuel oils.
*It adopts special heating furnace to ensure the safety of test.
*The instrument adopts desktop structure. Easy to operate.
*Stainless steel working table and furnace.
*Automatic Open-Cup Flash Point Tester(only for BK-3536A)
* LCD screen to display(only for BK-3536A)
*Automatically open the lid,detect the flash point and print test data.The test arm automatically rise up and lower down(only for BK-3536A)
Model | BK-3536 | BK-3536A |
Thermometer | -6℃~400℃. It is the same as thermometer ASTM 11C | |
Ambient temperature | -10℃~50℃ | 10℃~40℃ |
Relative humidity | ≤85% | |
Consumption | 650W | 400W |
Test flame applicator | It applies the test flame automatically. | |
Heating device | Quartz tube furnace heating, no naked fire, explosion prevented.The power is adjustable from 0W to 600W. | |
Igniting device | (1) Ignition source: coal gas(or civil gas) (2) Flame diameter is 3.2mm~4.8mm | Electric ignition. Gas flame diameter is 3.2mm~4.8mm |
Flash point determination | Range:Ambient to 400℃ Repeatability:≤8℃ Reproducibility:≤17℃ Accuracy:0.1℃ | |
Power supply | AC220V±10%, 50Hz. | |
Dimension | 350mm×290mm×350mm | 410mm×360mm×310mm |
Packing size (W*D*H) mm | 520*440*340mm | 600*510*600mm |
Gross Weight (kg) | 12kg | 25kg |
