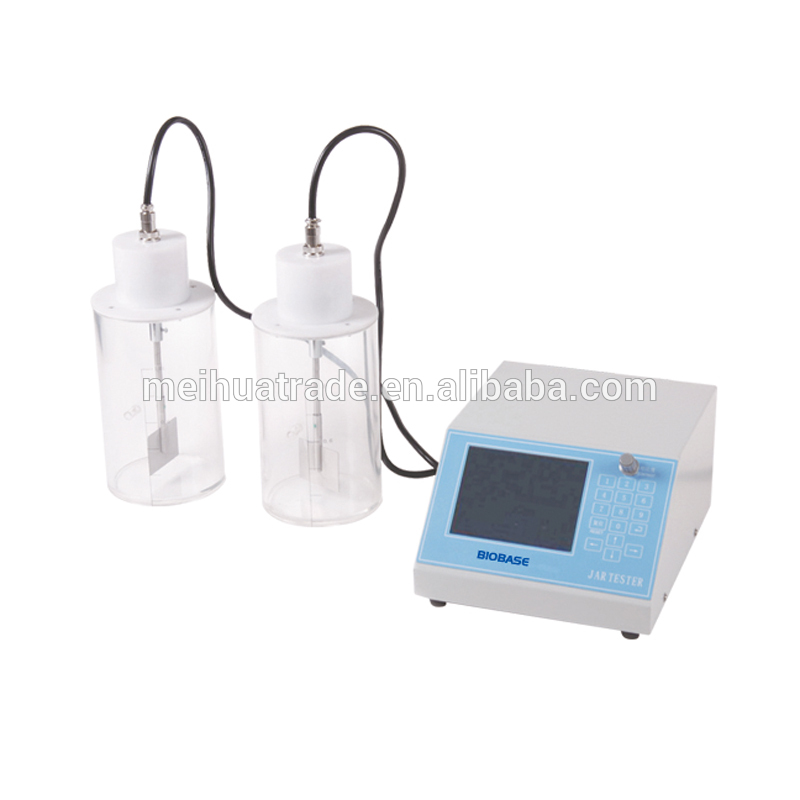

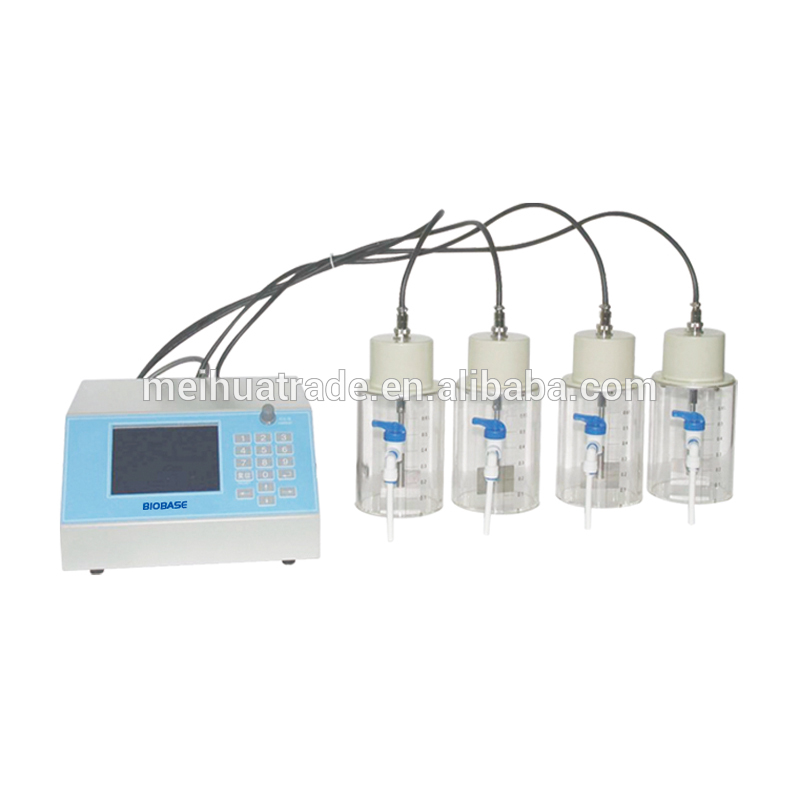

BIOBASE tester used to carry out the jar test during procedure of water treatment.
Application
It’s an testing instrument (not analytical instrument) used to carry out the jar test during procedure of water treatment.
It is used to simulate the processes of adding additives, reaction, coagulation and settling which happen during the procedure of water treatment (including purification of drinking water and sewage treatment),widely used in scientific research,water supply plant and sewage treatment plant,colleges and universities,water treatment agent manufacturer etc.
Features
*LCD display;
*Can store 12 groups of programs;
*Synchro run,independent run;
*Automatic calculating G & GT value (speed gradient );
*Automatic agent dosing and elevating
Model | BJT-2 | BJT-4 | BJT-6 |
Type | Two Beakers | Four Beakers | Six Beakers |
Acrylic Round Beaker | 1.0L,Φ110mm,H180mm | 0.6L,Φ95mm,H130mm | 1.0L,Φ110mm,H180mm |
Acrylic Square Beaker | / | / | 1.5L, 110×110×170mm |
Speed Range | 10~1000rpm,in 1rpm increment | ||
Speed Accuracy | ±0.5% | ||
Speed Gradient | 10~1000 /s. Just for round beaker | ||
Running Time | Each step: 0-99min, 10 steps each program | ||
Temp. Range | 0-50℃ | ||
Temp. Accuracy | ±1℃ | ||
Power Consumption | 40 W | 80 W | 180 W |
Power Supply | AC110/220V±5%,50/60Hz | ||
External Size(W*D*H )mm | 540*330*170 | 550*390*210 Include Carrying Case | 1080*350*400 |
Package Size( W*D*H)mm | 560*470*250 | 610*450*270 | 950*480*530 |
Net Weight(kg) | 7.2 | 9.5 Include Carrying Case | 30 |
Gross Weight(kg) | 8.5 | 11 | 33
|
