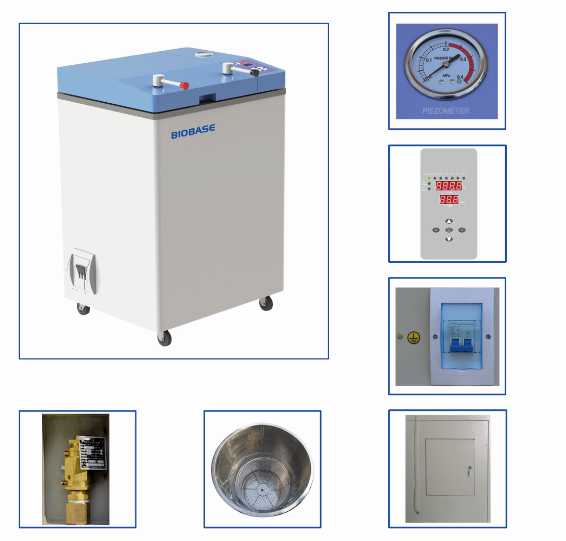

100L Vertical High Pressure Steam Sterilizer Autoclave
Features
Technical Features:
1. Flip-open door structure with spring booster, easy to open.
2. External material: Cold rolled steel with anti-bacteria powder coating.
3. Fixed sterilization programs for dressings, unwrapped and wrapped equipment, rubber, and liquid.
4. Door cover is wrapped completely, to prevent scald effectively.
5. Radial self-expanding silicone rubber seals with high effect and long using life.
6. LED displays inner temperature, time and error codes.
7. Automatic exhausting steam function.
8. Reliable mechanical safety interlock feature.
9. Complete protection system.
Safety Features:
1. Over pressure, safety valve can automatically open to release pressure.
2. Over temperature, the system will stop heating automatically and start alarm.
3. Anti dry-out function. If water level is too low, heating stops and error code displays on screen.
4. Over current, over voltage or electric leakage protection apparatus-air switch.
Technical Parameters
Model | BKQ-Z30I | BKQ-Z50I | BKQ-Z75I | BKQ-Z100I |
Capacity | 30L | 50L | 75L | 100L |
Chamber size(Φ*L) | 385*412 mm | 385*515 mm | 385*715 mm | 385*915 mm |
Chamber material | Polished SUS304 medical stainless steel | |||
Max pressure | 0.3MPa | |||
Rated working pressure | 0.22MPa | |||
Max temperature | 150℃ | |||
Working temp range | 105~134℃ | |||
Temp. accuracy | ±0.1℃ | |||
Timing range | 0-999min | |||
Dynamic pulse exhaust time | 0~9times | |||
Water requirement | Distilled water or demineralized water | |||
Standard Accessories | Stainless steel basket*1pc | Stainless steel basket*2pcs | ||
Power consumption | 2.8KW | 3KW | 3.5KW | 4.5KW |
Power supply | 220V, 50/60Hz | |||
Chambersize(φ*H) | 385*412mm | 385*515mm | 385*715mm | 385*915mm |
Outer size(W*D*H) | 610*645*710mm | 610*645*850mm | 610*645*1000mm | 610*645*1200mm |
Net weight | 68kg | 75 kg | 85 kg | 100 kg |
