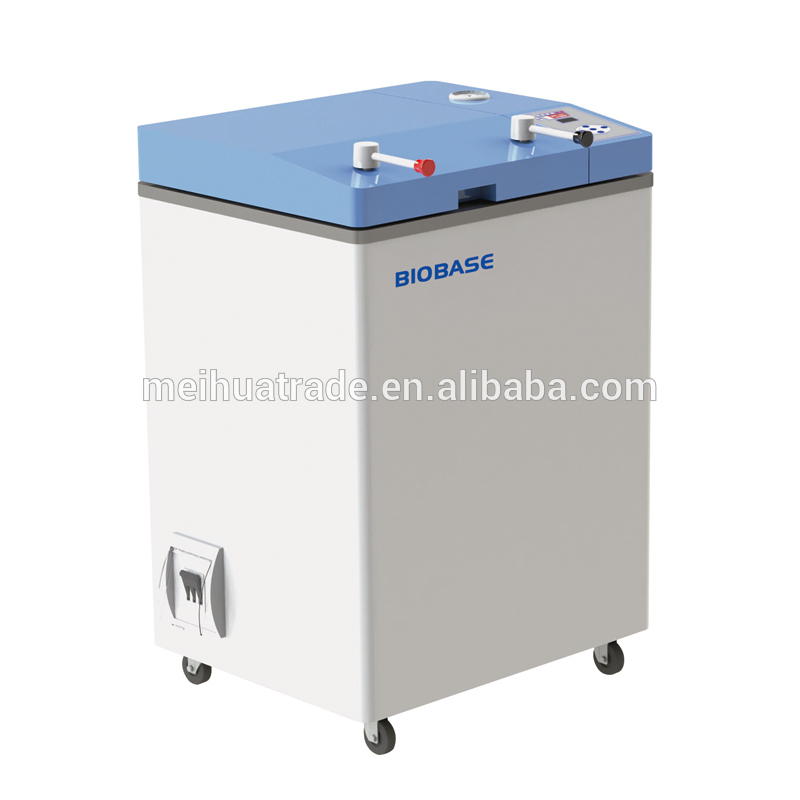

BIOBASE Flip-open door type autoclave Vertical Pressure Steam Sterilizer

Click on the image to view the original image

Product：	views：36BIOBASE Flip-open door type autoclave Vertical Pressure Steam Sterilizer
Branch：	BIOBASE
Type：	Flip-open door type vertical autoclave
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-12-03 18:45

Product Details

Overview

Quick Details

Type:: Flip-open door type vertical autoclave

Brand Name:: BIOBASE

Model Number:: BKQ-Z30I

Place of Origin:: Shandong, China

Name:: Flip-open door type vertical autoclave

Capacity:: 30L

Chamber size:: 385*412 mm

Chamber material:: Polished SUS304 medical stainless steel

Max pressure:: 0.3MPa

Rated working pressure:: 0.22MPa

Max temperature:: 150℃

Working temp range:: 105~134℃

Temp. accuracy:: ±0.1℃

Timing range:: 0-999min

Supply Ability

Supply Ability:: 100 Unit/Units per Month

Packaging & Delivery

Packaging Details: wooden packing

Port: Qingdao

Lead Time:: 7~15 days

BIOBASE Flip-open door type vertical autoclave Stainless Steel Sterilizer with CE

Features:

Technical Features:

1. Flip-open door structure with spring booster, easy to open.

2. External material: Cold rolled steel with anti-bacteria powder coating.

3. Fixed sterilization programs for dressings, unwrapped and wrapped equipment, rubber, and liquid.

4. Door cover is wrapped completely, to prevent scald effectively.

5. Radial self-expanding silicone rubber seals with high effect and long using life.

6. LED displays inner temperature, time and error codes.

7. Automatic exhausting steam function.

8. Reliable mechanical safety interlock feature.

9. Complete protection system.

Safety Features:

1. Over pressure, safety valve can automatically open to release pressure.

2. Over temperature, the system will stop heating automatically and start alarm.

3. Anti dry-out function. If water level is too low, heating stops and error code displays on screen.

4. Over current, over voltage or electric leakage protection apparatus-air switch.

2.Technical Parameters

Model	BKQ-Z30I	BKQ-Z50I	BKQ-Z75I	BKQ-Z100I
Capacity	30L	50L	75L	100L
Chamber size(Φ*L)	385*412 mm	385*515 mm	385*715 mm	385*915 mm
Chamber material	Polished SUS304 medical stainless steel
Max pressure	0.3MPa
Rated working pressure	0.22MPa
Max temperature	150℃
Working temp range	105~134℃
Temp. accuracy	±0.1℃
Timing range	0-999min
Dynamic pulse exhaust time	0~9times
Water requirement	Distilled water or demineralized water
Standard Accessories	Stainless steel basket*1pc		Stainless steel basket*2pcs
Power consumption	2.8KW	3KW	3.5KW	4.5KW
Power supply	220V, 50/60Hz
Chambersize(φ*H)	385*412mm	385*515mm	385*715mm	385*915mm
Outer size(WDH)	610645710mm	610645850mm	6106451000mm	6106451200mm
Net weight	68kg	75 kg	85 kg	100 kg
