- Place of Origin:
- Shandong, China
- Brand Name:
- BIOBASE
- Model Number:
- BMB-300M
- Theory:
- Biological Microscope
- Drawtube:
- Binocular
- Model:
- BMB-300M
- Output Mode:
- USB2.0
- Operation System:
- WINDOWS7/8 2000 / XP/ VISTA
- Range of Viewing Field:
- 90%
- Software:
- ScopeImage 9.0
- Illumination:
- LED 3W,Brightness Ad
- Gross Weight:
- 12.5kg
- Package Size:
- 334*334*533
- Power Supply:
- AC110/220V±10%, 50/60Hz
- Product name:
- Build-in camera microscope
- Supply Ability:
- 400 Unit/Units per Month microscope with factory price
- Packaging Details
- Carton&Wooden Box
- Port
- Qingdao Port
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Units) 1 - 5 >5 Est. Time(days) 15 To be negotiated

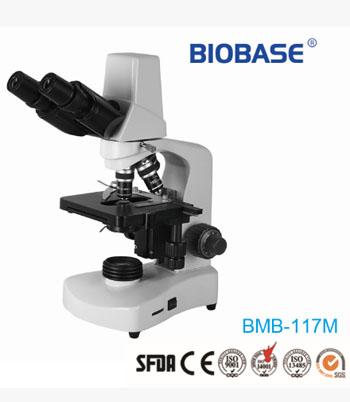

BIOBASE High Quality Build-in Camera Biological Microscope With Factory Price
Description:
Technical Parameters:
| Specification | BMB-117M | BMB-300M | ||
Viewing Head | Compensation Free Binocular Head, Inclined at 30°, Interpupilary Distance 48-75mm | √ | √ | ||
Camera | Valid Pixel | 1280*1024(1.3M Pixel) | √ |
| |
2048*1036 (3.0M Pixel) | √ | ||||
2052*1944 (5.0M Pixel) | |||||
Output Mode | USB2.0 | √ | √ | ||
Operation System | WINDOWS7/8 2000 / XP/ VISTA | √ | √ | ||
Software | ScopeImage 9.0 | √ | √ | ||
Range of Viewing Field | 90% | √ | √ | ||
Eyepiece | WF10×/ 18 | √ | √ | ||
P16×/ 11 |
| ||||
Extra wide filed eyepiece EW10×/ 20 with diopter |
| ||||
Objective | Achromatic Objective 4×,10×,40×,100× | √ | |||
Infinite planAchromatic Objective 4×,10×,40×,100× | √ | ||||
Nosepiece | Backward Quadruple Nosepiece | √ | |||
QuintupleNosepiece |
| ||||
Quadruple Nosepiece | √ | ||||
Stage | Double Layers Mechanical Stage 132*142mm,Moving range 75*40mm | √ |
| ||
Double Layers Mechanical Stage 140*140mm Moving range 75*40mm | √ | ||||
Condenser | Abbe NA1.20 with Iris Diaphragm & Fliter | √ | |||
Abbe NA1.25 sliding-in centerable condenser | √ | ||||
Focusing | Coaxial Coarse & Fine Adjustment System, Range 24mm, Fine Division 0.004mm | √ | |||
Coaxial Coarse & Fine Adjustment System, Range 20mm | √ | ||||
Illumination | LED 3W, Brightness Adjustable | √ | |||
Halogen Lamp 6V/ 20W, Brightness Adjustable |
| ||||
220V or 110V/ 6V/ 20W Halogen Lamp, Brightness Adjustable | √ | ||||
Power Supply | AC110/220V±10%, 50/60Hz | √ | √ | ||
Accessories | Phase Contrast Kit |
|
| ||
Dark-Field Attachment |
|
| |||
Polarization Attachment |
| ||||
Package Size | 396*262*492(BMB-117M), 334*334*533(BMB-300M) | √ | √ | ||
Gross Weight | 7.5kg (BMB-117M), 12.5kg (BMB-300M) | √ | √ | ||
Note: √ Standard Outfit |
