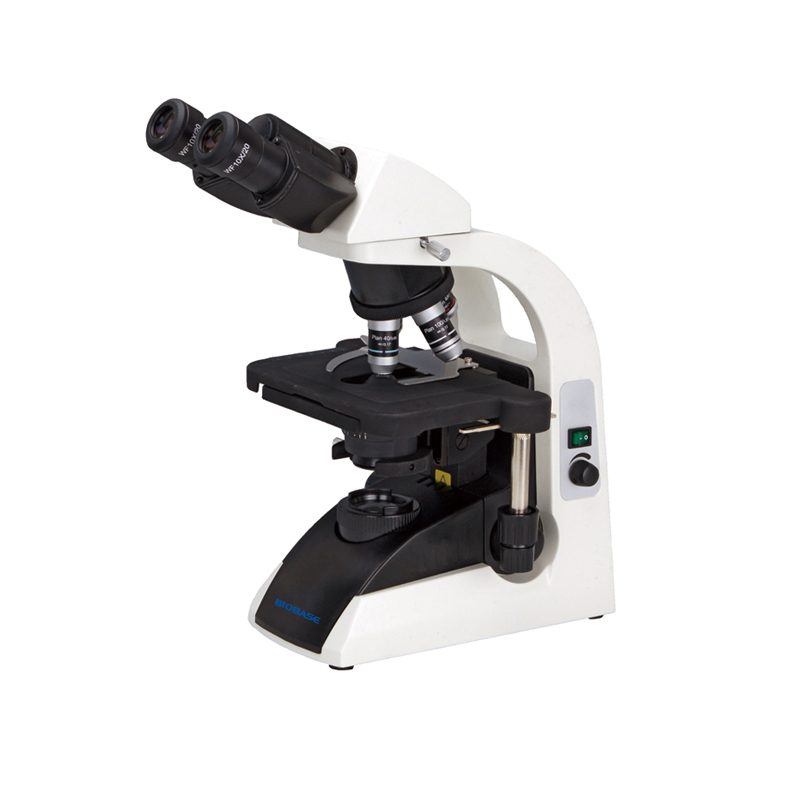

Multi-function Biological Microscope scanning electron microscope for electronics
Multi-function Biological Microscope scanning electron microscope for electronics
Model | BMM-1000 | BMM-2000 | |
Viewing Head | Siedentopf hinged binocular viewing head, inclined at 30°,360° rotatable | √ | √ |
Slide binocular viewing head, inclined at 45° | |||
Siedentopf hinged trinocular viewing head, inclined at 30°,360° rotatable | o | o | |
Built-in digital viewing head | o | o | |
Eyepiece | WF10×/18 | √ | |
P16×/11 | o | ||
EW10X/20 | o | ||
WF10×/20 | √ | ||
WF15×/16 | o | ||
Objective | Achromatic objective 4×,10×,40×,100× | √ | |
Plan achromatic objective 4×,10×,40×,100× | o | ||
Infinite plan achromatic objective 4×,10×,40×,100× | o | √ | |
Nosepiece | Quadruple nosepiece | √ | |
Backward quadruple nosepiece | √ | ||
Backward quintuple nosepiece | o | ||
Focusing | Coaxial coarse & fine adjustment,rang 22mm , fine division 0.002mm | √ | √ |
Stage | Double layers mechanical stage, cross travel 78×54mm, using low-positioned X/ Y coaxial control knob | √ | |
Rectangular 230*150mm stage, cross travel 78×54mm, using low-positioned X/ Y coaxial control knob | √ | ||
Attachable Mechanical Stage 110×120mm,moving range60×30mm | |||
Condenser | Abbe condenser NA1.25 with aperture diaphragm | √ | √ |
Abbe condenser NA1.2 with Iris Diaphragm anfd Filter | |||
Illumination | S-LED Illumination,brightness adjustable | √ | o |
12V/ 20W Halogen lamp, brightness adjustable | o | √ | |
6V/20W illumination | o | ||
Accessories | Photo attachment, video attachment, dark field condensor | o | |
Polarization set, phase contrast kit | o | ||
Package Size | 323*264*440(BMM-1000), 380*260*510(BMM-2000) | √ | √ |
Gross Weight | 6.5kg(BMM-1000), 10kg(BMM-2000) | √ | √ |
Note: √ Standard Outfit, o: Optional , Without this feature
| Q: Why choose BIOBASE? |
(1) More than 20 years history of manufacturing |
| Q: How about BIOBASE payment term? |
| A: T/T in advance & L/C & Weatern Union(40% deposit,the balance before shipment). |
| Q: How about BIOBASE delivery time? |
| A: 10-15 days after we receive prepayment. |
| Q: How about the package? |
| A: Plywood case or carton or standard export wooden case. |
Q: What"s the loading port? |
A: FOB to Qingdao port China or as customer"s request |
