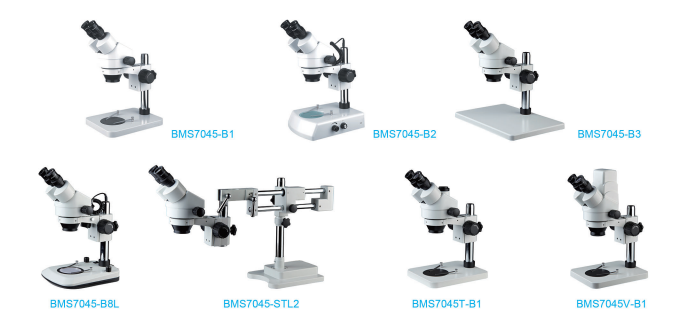

Model

BMS7045-B1

BMS7045-B2

BMS7045-B3

BMS7045-B8L

BMS7045-STL2

BMS7045T-B1

BMS7045V-B1

Viewing Head

SZM7045: binocular head , 45 ° tilt, continuous zoom lens 0.7X-4.5X, working distance 100mm. pupillary distance adjustment range of 54mm-76mm, depending on the degree of bilateral adjustable ± 5 diopter .

√

√

√

√

√

SZM-7045TR tee viewing head . 45 ° tilt , 360 ° rotation ; photographic camera can be equipped with the interface

√

SZM-7045V digital viewing head , built-in 3 million pixel CCD

√

Eyepiece

WF10X/20mm (micrometer )

√

√

√

√

√

√

√

WF15X/15mm (micrometer )

√

√

√

√

√

√

√

WF20X/10mm (micrometer )

√

√

√

√

√

√

√

Auxiliary lens

0.5X/165mm. 1.5X/45mm. 2X/30mm.

√

√

√

√

√

√

√

Focus brackets

A1 focus frames, focusing hand wheel adjustable elastic , lifting range 50mm.

√

√

√

√

√

√

√

A3 industrial binding Focus Frame 2 ( industry-specific )

√

√

√

√

√

√

√

Base

B1 Column flat base .

√

√

√

B2 Column transmission base , the upper and lower light source is a halogen lamp 12V15W ( adjustable brightness )

√

B3 Column large flat base

√

B8L Column LED light base

√

STL2 universal bracket arms

√

Other external sources

Ring light / LED light / cold light illumination

√

√

√

√

√

√

√

Photography device

Photography connected tube ( with PK bayonet ), 3.2X photo eyepiece

√

√

√

√

√

√

√

Imaging device

0.35X/0.5X/1.0XC type camera connected tube

√

√

√

√

√

√

√

Package size

mm

385*240*370

500*260*370

385*240*370

510*360*300

495*485*290

385*240*370

370*240*470

Gross Weight

kg

5.08

7.18

5.68

6.08

24.58

5.08

4.87
