BIOBASE LCD Digital Biological Microscope Laboratory used
Click on the image to view the original image
Product: views:41BIOBASE LCD Digital Biological Microscope Laboratory used
Branch: BIOBASE
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-12-03 18:45
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
BIOBASE
Model Number:
DM-125
Theory:
Video Microscope
Drawtube:
Monocular
Model:
DM-125
Optical System:
Finite Optical System
Eyepiece:
WF10X/18
Viewing Head:
Monocular Head Inclined at 30°
Achromatic Objective:
4XN.A=0.1 WD=17
Nosepiece:
Backward Quadruple Nosepiece
Condenser:
NA 1.25 Abbe Condenser
Package Size:
370*260*465mm
Supply Ability
Supply Ability:
100 Unit/Units per Month
Packaging & Delivery
Packaging Details
Carton packing
Port
Qingdao
Lead Time:
7~15 days

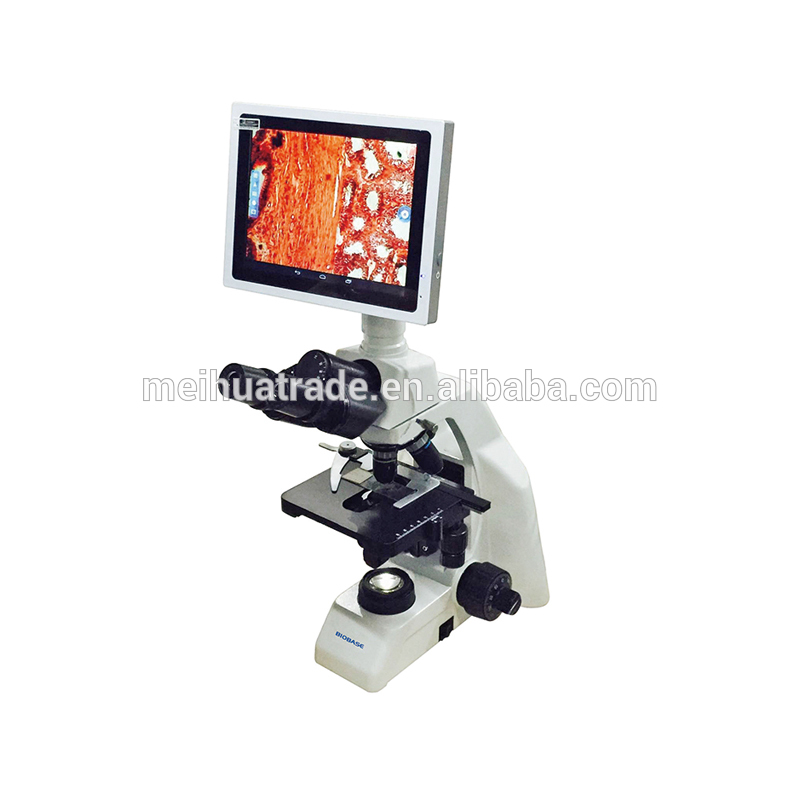

BIOBASE LCD Digital Biological Microscope Laboratory Microscope



1. Sharp image display with excellent optical function.

2. The integration of structure design,to save space.

3. Valid mouldproof design,it can be used under the high temperature and high humidity environment.







Model

DM-125

DM-126

Optical System

Infinite Optical System



Finite Optical System



Eyepiece

WF10X/18



WF10X/20



Viewing Head

Monocular Head Inclined at 30°



Seidentopf Binocular Viewing Head Inclined at 30°,

Interpupillary 48-78mm

Seidentopf Trinocular Viewing Head Inclined at 30°,

Interpupillary 48-78mm





Digital Viewing Head Inclined at 30°, Interpupillary 48-78mm, 5M pixels, Support Wifi





Digital Viewing Head Inclined at 30°, Interpupillary 48-78mm, 5M pixels, 8’’ LCD, Android OS





Achromatic Objective

4X    N.A=0.1   WD=17



10X   N.A=0.25  WD=7



40X   N.A=0.65  WD=0.53



100X  N.A=1.25  WD=0.13



Infinite Semi-Plan

Achromatic Objective

4X    N.A=0.1   WD=18



10X   N.A=0.25  WD=7.4



40X   N.A=0.4   WD=0.7



100X  N.A=0.6   WD=0.13



Nosepiece

Backward Quadruple Nosepiece

Stage

Double Layers Mechanical Stage 140x140mm, Moving Range 75X50mm



Reckless Double Layers Mechanical Stage 150X139mm,

Moving Range 75X25mm



Condenser

NA 1.25 Abbe Condenser

Dark Field Condenser (Dry, Oil)





Focusing System

Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm,

Moving Division 25mm

Illumination

S-LED Illumination





S-LED Illumination with Recharger

Kohler Illumination





ECO Function





Plane-cancave Mirror





Fluorescent Attachment

Fluorescent Illumination, LED Lamp





Fluorescent Illumination, 100W HBO Lamp





Polarization Set







Phase Contrast Kit







Package Size

370*260*465mm

Gross Weight





BIOBASE Information

BIOBASE GROUP

Established in 1999

1200 employees in China and abroad offices.



Leading professional manufacturer of laboratory and medical products.
Specializing in:
*air protection products
*cold chain products
*analytical instruments
*most of lab and medical products
*laboratory furniture,laboratory and  clean room construction
