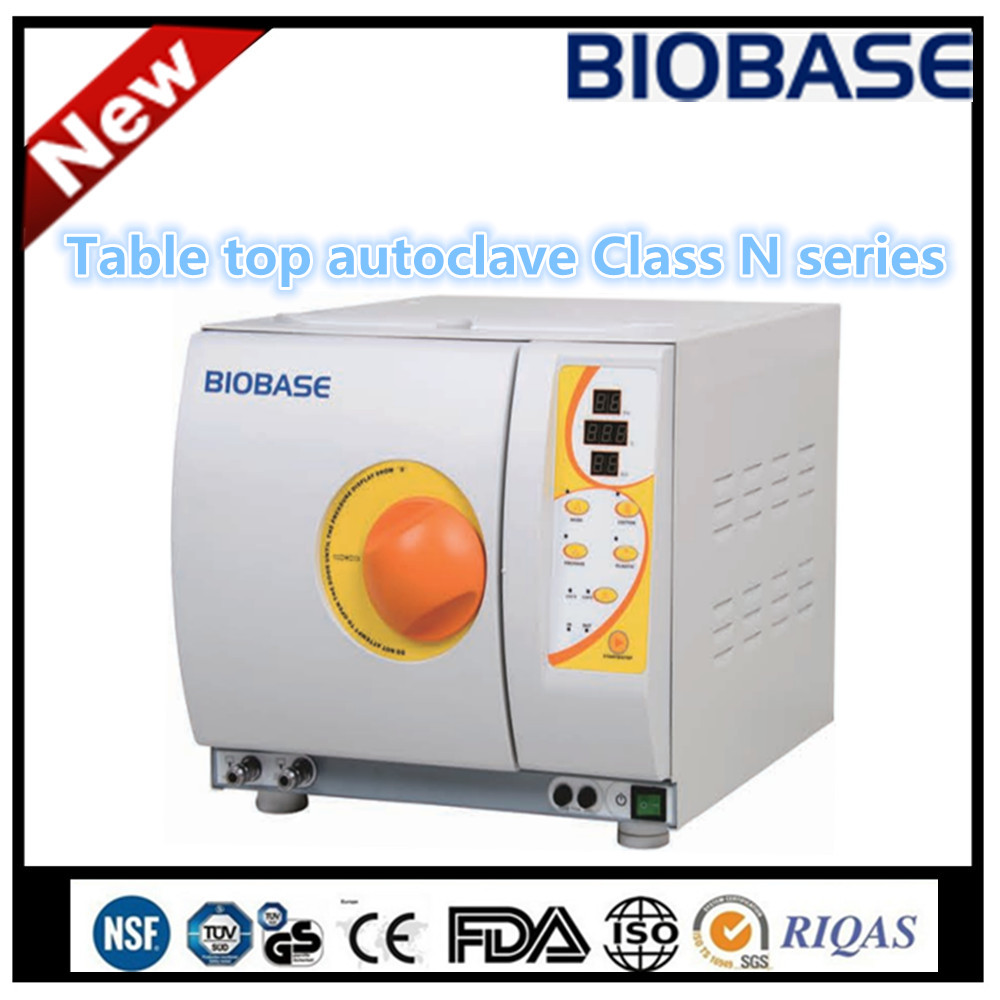

Table top autoclave Class N series
Application:
Autoclaves are equipment for sterilizing widely used in microbiology, medicine, podiatry, tattooing, body piercing, veterinary science, mycology, dentistry, and prosthetics fabrication. They vary in size and function depending on the media to be sterilized.
Features:
1. Adopting European N standard, with thermal vacuum and drying functions, it can be used for A-type hollow instruments and solid instruments. Thermodynamic vacuum guarantees elimination of cold air from the cavity and makes sure that reaches the optimal effect of sterilization.
2. Specially design for dental clinic field, it could sterilize 12 pieces hand piece at same time, simply and efficiently.
3. Sliding door design for easy secure operating-for BKM-Z2.
4. Microprocessor control, LCD or LED display and modularized panel for easy operation.
5. Automatic malfunction detection system makes easy maintaining.
Model | BKM-Z18N | BKM-Z24N | |
Capacity | 18L | 24L | |
Sterilization Class | Class N (according to EN 13060 standard) | ||
Sterilization Temp. | 121℃,134℃ | ||
Drying Procedure | Heating dry | ||
Display | LED display | ||
Testing System | B&D test | ||
Control Precision | Temperature: 1℃ | ||
Pressure: 0.1bar | |||
Sterilization Data | Optional Mini printer | ||
Safety System | Hand lock door | ||
Pressure lock system | |||
Relief valve in case of over pressure | |||
Pressure or temperature over load protection | |||
Alarm for system failure, finish reminding, water level warning | |||
Water Supply System | Build-in water tank, easy to clean | ||
Water tank capacity | 4L | ||
Water Consumption | 0.16L~0.18L in one cycle | ||
Tray Holder | 3 pcs SS trays on SS shelf | ||
Chamber | Medical stainless steel 304 unibody structure | ||
Max working pressure:2.3bar | |||
Min working pressure: -0.9bar | |||
Max temperature: 145℃ | |||
Ambient Temp. | 5~40℃ | ||
Noise | <50dB | ||
Power Supply | 110/220V±10%, 60/50Hz | ||
Power Consumption | 1500W | 1700W | |
Chamber Size(mm) | φ245×360 | φ245*470 | |
External Size(mm) | 560*450*400 | 670*450*400 | |
Packing Size(mm) | 660*525*495 | 770*525*495 | |
Gross Weight(kg) | 53 | 60 | |
