60 solar system home

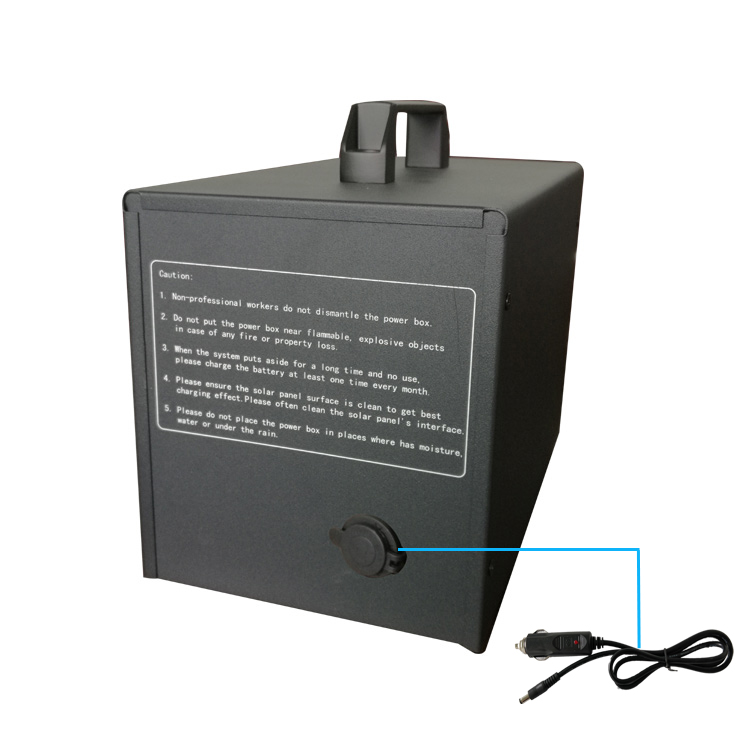

this solar fan and lighting system is a DC solar energy generator system. includes solar panel, controller, battery.
can load DC FAN, DC television , LED Light, mobile charger, etc
Working time ( if battery is fully charged ) :
when loading 4pcs 12v 3w bulbs/tubes, around 28 hrs
when loading 2pcs 12v 3w bulbs/tubes + 1pcs 16" 12v 10w standing fan, around 21 hrs
when loading 2pcs 12v 3w bulbs/tubes + 1pcs 15" 12v 18w DC TV, around 14 hrs
when loading 2pcs 12v 3w bulbs/tubes + 1pcs 16" 12v 10w DC FAN + 15" 12v 18w DC TV, around 10 hrs.
| Solar Panel | 18V/60W polycrystalline with 5m cable |
| SMF lead acid battery | rechargeable 12V, 40Ah |
| Lamp | 4pcs 3W SMD LED lamp |
| USB port: | yes, for charging mobile phones, mp3,mp4 etc |
| ON/OFF switch | yes |
| DC Fan | 10w 16" (not include) |
| DC TV | 14" (not include) |
| Fully charging time | About 8 hours |
| Lighting time | Only load 4pcs 3W LED lamp: more than 30 hrs lighting time; Load 4pcs 3W LED lamp, 10W DC standing fan and 20W DC TV, 7 hrs working time. |
| Accessaries | USB cable 1+10 |
| Packing | 1pc/ctn |
| Carton size(Power box) | 400*266*320mm |
| Carton size(Solar panel) | 1000*570*50mm |
| GW/set | 30kgs/80lbs |
| 20GP/40GP | 414sets/888sets |
