Home > Products > OT table Electric Medical Operating Surgical Room Table
OT table Electric Medical Operating Surgical Room Table
Click on the image to view the original image
Product： views：3OT table Electric Medical Operating Surgical Room Table
Branch： MT-MEDICAL
Type： Operating Table
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:45
  Negotiated
Product Details
Overview
Quick Details
Brand Name:
MT-MEDICAL
Model Number:
EOT-M2
Place of Origin:
Shanghai, China
Material:
Stainless steel
Total width:
555mm(without side rail)
Castor size:
125mm
Brand:
MT-MEDICAL
Certificate:
CE,ISO
Packing:
Wooden Case
Height adjustment range:
750~1000mm
Warranty:
2 Years
G.W.Of overall table:
255kgs
Type:
Operating Table
Power Source:
Electricity
Supply Ability
Supply Ability:
5000 Unit/Units per Month Surgical Room Table
Packaging & Delivery
Packaging Details
standard export wooden packing
Port
Shanghai

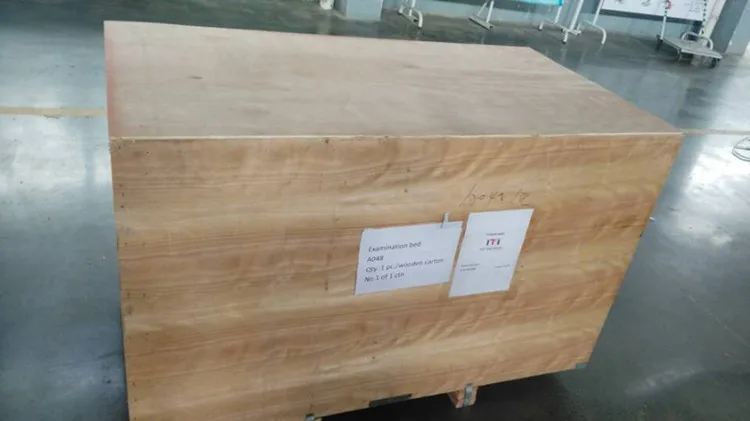

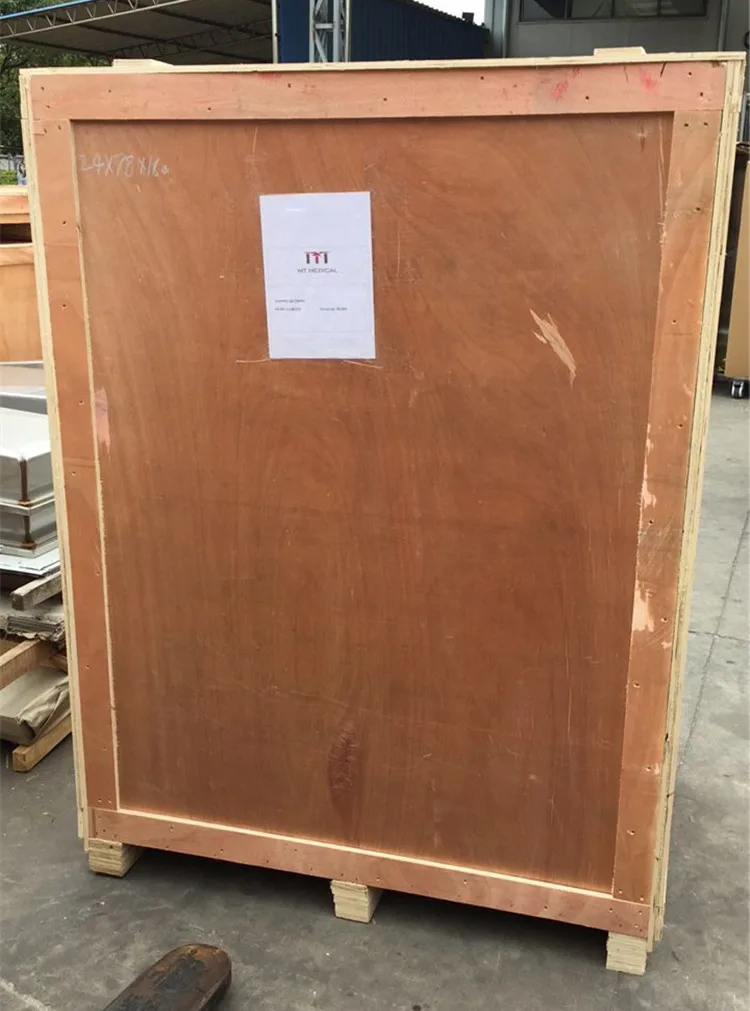

Picture Example:
package-img
package-img
Lead Time:
Quantity(Units)1 - 1 >1
Est. Time(days)15To be negotiated
Product Description

             OT table Electric Medical Operating Surgical Room Table



Application of modern technology, combine with the idea of humanized design,meet the requirements of operation in the process of video observation and diagnosis,comprehensive strength,for each part of the human body surgery hospital operating room,i.e.,the brain,heart,blood vessels,extracorporeal circulation,abdominal cavity,the gallbladder excision,renal resection,the neck, cervical vertebra,lumbar spine,spine,back,urology,gynecology,cranial nerve,surgical,rectum,plam traction,upper limb surgy,knee surgery,orthopedics lower limb traction (such as with orthopaedics traction frame) surgery.







Technical Parameters

Total length

2220mm(with additional footplate)
Total width

555mm(without side rail)

600mm(with side rail)

Head section length

300mm

Back section length

380mm

Main section length

540mm

Leg section length

 580mm
Supporting bottom size1030x650x200mm
Castor size125mm
Height adjustment range700~1000mm

Kidney bridge rise

min 110mm

Sliding movement

350mm
Back section up70°

Back section down

22°
Trendelenburg24°
Re-trendelenburg24°
Lateral tilt22°
Leg section adjustmentUp 15° Down 90°
Spread angle of leg plates200°
Head section adjustmentUp 40° Down 90°
N.W. Of overall table280kgs
Max loading weight320kgs
Patient Horizontal max loading weight300kgs
Integrated batteryYes,for over 150 movements




















Production Flow

  • Robot welding
  • We assemble the Operating lamp in purified workshop
Packing and Delivery

  • Professional packing ,The products is packed by wooden case,safely guard products against damages during shipping.
  • Delivery Details :
  1. Usually, we make merchandise inventory, if we have the products in stock,The delivery time is5-10 days after receiving the deposit;
  2. If we don’t have the products in stock, we will arrange the production right now, the delivery time will be 20-30days,It depends on the quantity of order



Certifications

  • The products are approved by CE,ISO13485



Warranty

Usually The warranty is 1-2years due to different products, and We support lifetime maintaining.
A. Offer door to door service;
B.We send you  free parts by courier and technical guidance by video/call;
C.We support you free training .

Trade Shows
