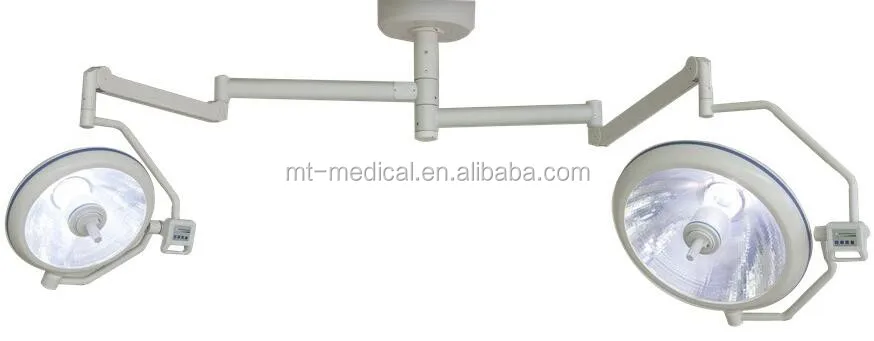

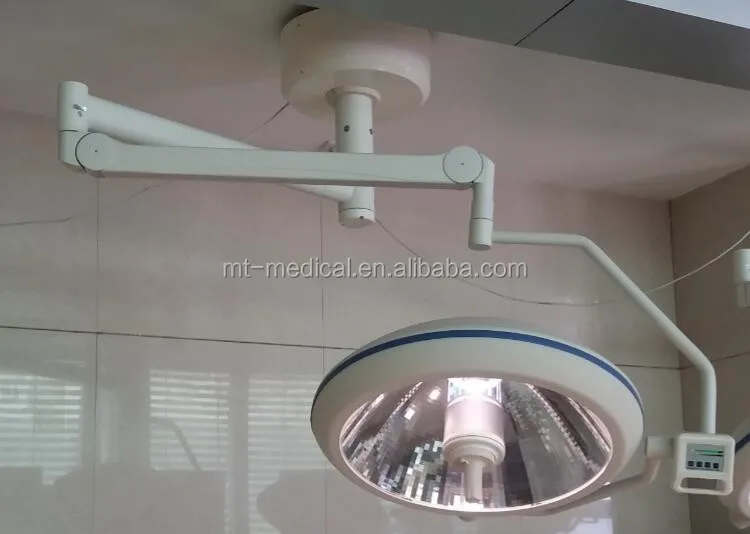

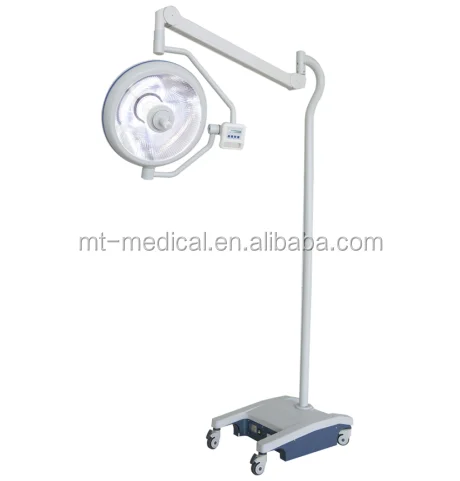

OL-70/50 Medical Equipment,Shadowless Operating Lamp
- shadowless operating lamps meet the requirements of various surgical operations. It is an ideal lighting facility for surgical operations.
- In the reflector system designed in CAD, color and temperature are close to that of sunlight so that the tissue surface is visible under natural color. The depth of tubular light beams reach up to over 700mm , therefore the well-proportioned illumination effectively eliminates shadows under any circumstance;
- Special heat-isolated radiation filter reduces heat to the minimum level.

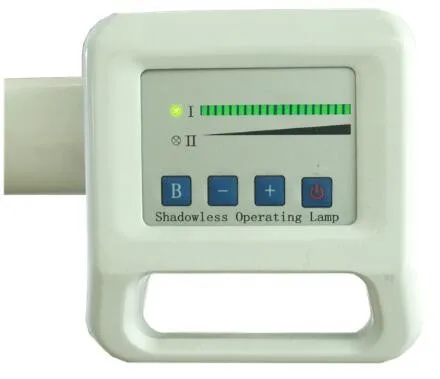

- High definition rippled panel is made of shock-resistant and heat-resistant PC material. The imported aluminum reflecting mirror makes light softer and more well-proportioned and increasing safety. CPU is adopted for the control, capable of increasing or decreasing and boasting brightness memory. When the main bulb malfunctions, the standby bulb will come into operation within 1/2 second.The major and auxiliary bulbs can be replaced easily. The dischargeable handle sheath can be sterilized in steam sterilizer.

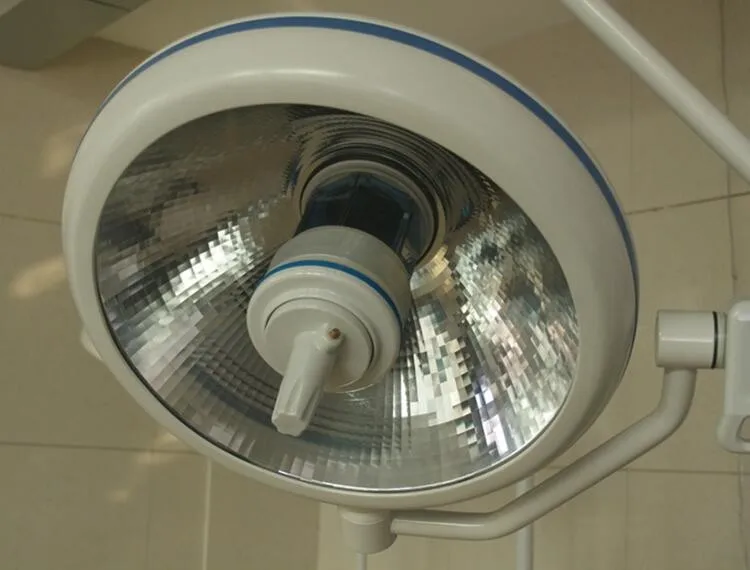

- Imported aluminum sheet squamulose reflector and transparent panel are adopted. Average service life of imported lamp receptacle and bulb can reach 1500 hours.
| Technical Parameters | 700 head & 500 head |
| Illuminance | 150000/120000Lux. |
| Color temperature | 4300K±500K |
| Spot diameter | 120- 320mm |
| Light Focus adjustment System | manual |
| Light-adjusting mode | Eight grade dimmer system |
| Temperature at surgeon’s head | ≤2℃ |
| Temperture at surgical field | ≤8℃ |
| Color rendering index(Ra.%) | ≥97 |
| Working distance | 55-170cm |
| Vertical adjustment range | 115cm |
| Power supply | 220V±22V 50Hz±1Hz |
| Input power | 220W |
| Bulb average life | 1500h |
|
|
|
| | | |
|
|
|
|
Usually The warranty is 1-2years due to different products, and We support lifetime maintaining.
A. Offer door to door service;
B.We send you free parts by courier and technical guidance by video/call;
C.We support you free training .
|
HEFEI MT MEDICAL CO.,LTD. is located at economic development zone,Hefei city,Anhui province,China. From 1998,we are working to research and develop Operation table,Operation lamp,Ceiling pendant,Hospital bed,patient monitor,medical stretcher,medical trolley,x-ray film viewer,medical cabinet, and other medical furnitures. our products were sold to the middle east,Southeast Asia,the Commonwealth of the Independent States,Africa,South America and some European markets. The products were approved by CE,ISO13485. Our after-sales team will resolve your problems in time within 24hours. M-strive to technical innovation , T-guard life. Learn to be a decent person before learning how to do things, In Good Faith Cooperation,Sincerely make friends,To create a win-win situation. This is the cornerstone of our eternal achievement. MT MEDICAL do our best products and service for you. |
|
