Medical Bed, Hospital ICU Bed, Medical Equipment

Click on the image to view the original image

Product：	views：2Medical Bed, Hospital ICU Bed, Medical Equipment
Branch：	MT-MEDICAL
Type：	Hospital Furniture
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:46

Product Details

Overview

Quick Details

Type:: Hospital Furniture

Specific Use:: Hospital Bed

General Use:: Commercial Furniture

Material:: High quality cold rolled steel

Folded:: Yes

Place of Origin:: Anhui, China

Brand Name:: MT-MEDICAL

Model Number:: ICUB-M

Height(from floor):: 500~850mm

Knee section adjusting:: 0~45°

Back plate adjusting:: 0~75°

Bed panel extention:: Manual/180mm

Safety load capacity:: 240kgs

Mattress anti-slipper:: At sides and end of bed

Drainage hook:: At sides of beds,4 in total

Bed head and end board,guardrail:: ABS

IV pole hole:: F:2,H:2

Product Name:: Medical Equipment

Supply Ability

Supply Ability:: 10000 Set/Sets per Month Medical Equipment

Packaging & Delivery

Packaging Details: wooden case,standard export package

Port: Shanghai

Lead Time:

Quantity(Sets)	1 - 1	2 - 5	>5
Est. Time(days)	1600	1400	To be negotiated

Product Name

Medical Bed, Hospital ICU Bed, Medical Equipment

Item			Parameter
Item no.			ICUB-M
Size	Bed panel	Length	1950mm
		Width	910mm
	outsize	Total length	2170mm(could be extented to 2350mm)
		Total width	1080mm
	Height(from floor)		500~850mm
	Back plate adjusting		0~75°
	Knee section adjusting		0~45°
	Bed panel extention		Manual/180mm
	Safety load capacity		240kgs
Function & configuration	movement		Back plate up and down
			Knee section up and down
			Back and knee section move together
			Overall lifting
			Trendelunburg & reverse trendelunburg position
			Manual CPR
	Mattress anti-slipper		At sides and end of bed
	Drainage hook		At sides of beds,4 in total
	IV pole hole		F:2,H:2
	castors		Germany TENTE castors, dia125mm,central control castor
Main material	frame		High quality cold rolled steel (painted with antibacterial powder)
	Bed head and end board,guardrail		ABS
Others	IV pole		optional
	mattress		optional
	Dining table		optional
	Oxygen bottle support		optional

Functions

Functions:

* Whole bed can weigh, with error controlled in 1-3%.

* Bed weighing system can continuously detect subtle changes in patient weight.

* Back plate adjusting 65° ±5°

* Leg plate adjusting 45° ±5°

* Head and foot tilt 13° ±3°

* Lifting 500-860mm

* Back plate and knee section can lift at same time with one button

* 4pieces of Europen style guardrails, can be hidden below bed panel good price

Function 2:

* Angle disply on 4 pcs of guardrails

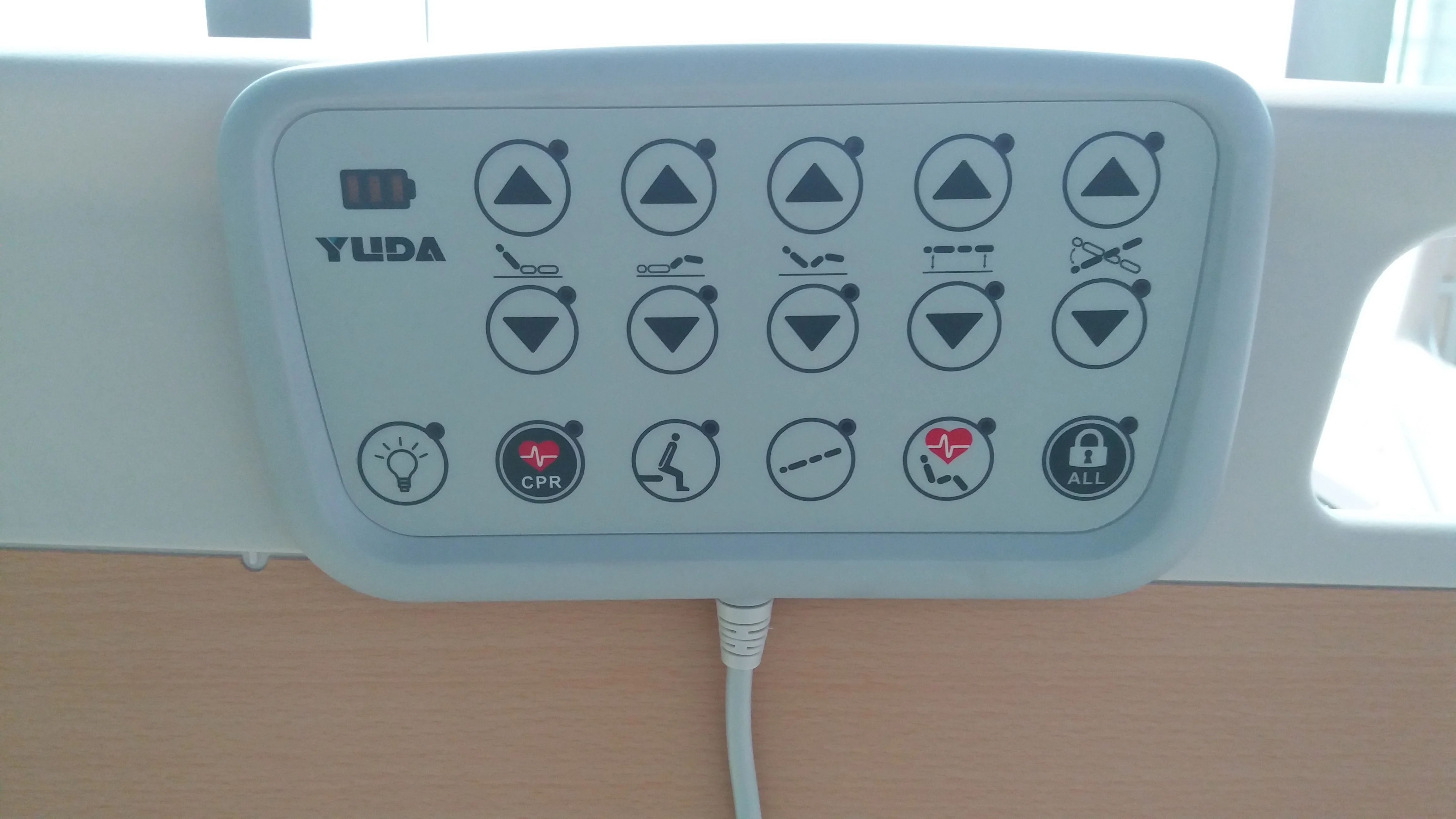

* All movements are controlled by LCE panel at bed end

* IV pole hole support at each corner, which also protect bed from collision

* Luxury centrol control castors, with locking device for licking, freemoving and orientation function

* With CPR function, bed come back to level postion for patient rescue

* Bed length could be extended, just need to pull out bed end board.

* Bed panel is made of HPL board, allow X-ray irradiation, cassette at back plate.

* 2 step adjustment at shank section, make shank at ease.

* ABS Bed head and end board, can be removed while shipping to save space and cost. Color can be changed as customer requires.

* Load capacity no less than 300kg

Details

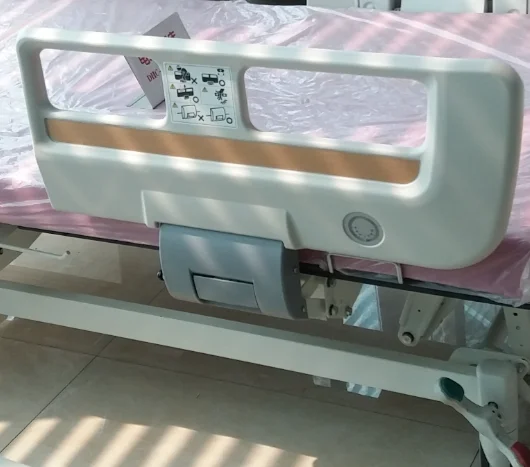

	1. 4pieces of European style guardrail, upside and down structure. 2. ABS side rails

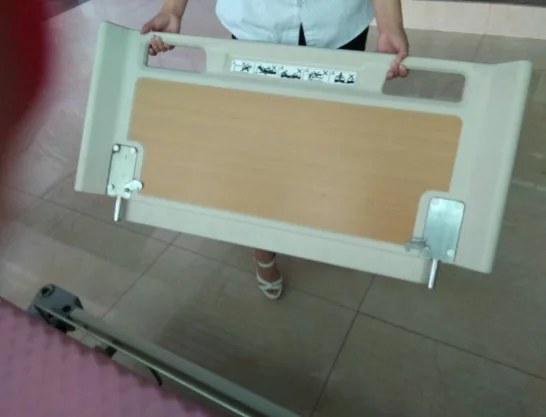

1. Detachable ABS bed head and end

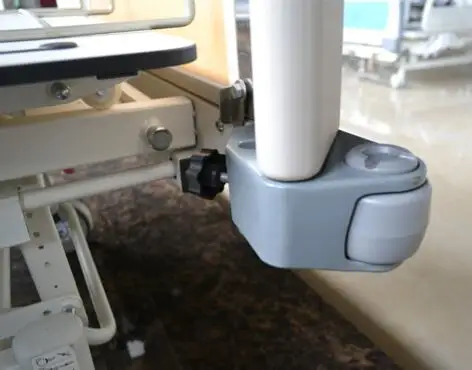

	1. 4pcs bumpers 2. 4pcs IV stand pole

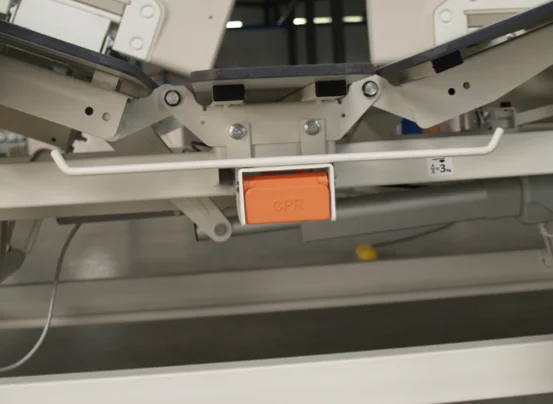

1. 2pcs manual CPR acting on the back

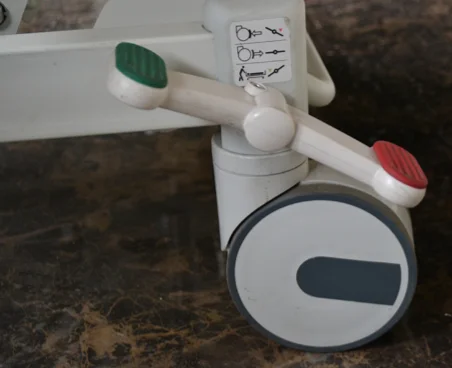

	1. Double castors with central locking

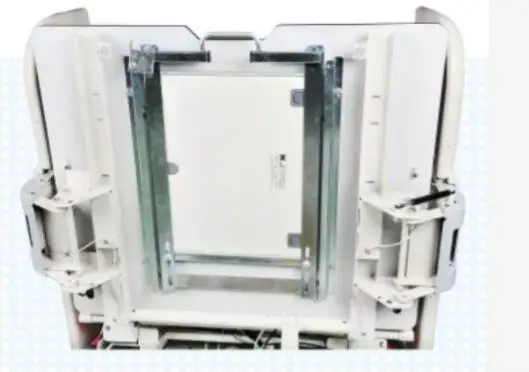

1. x-ray bed board

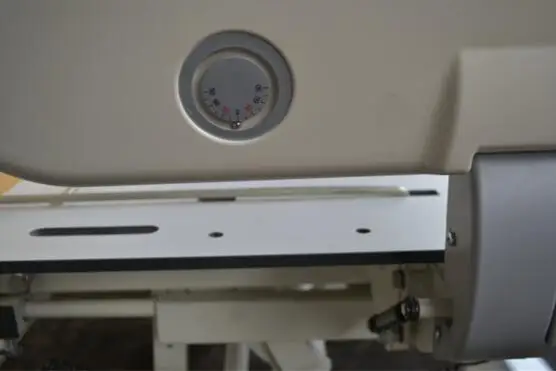

	1. Angle adjustment instructor on the side rails

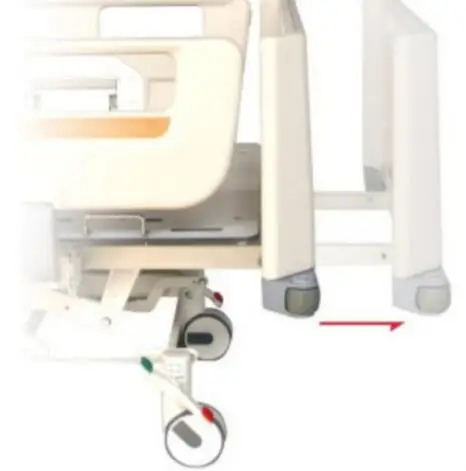

1. Bed length can be extended to 2350mm

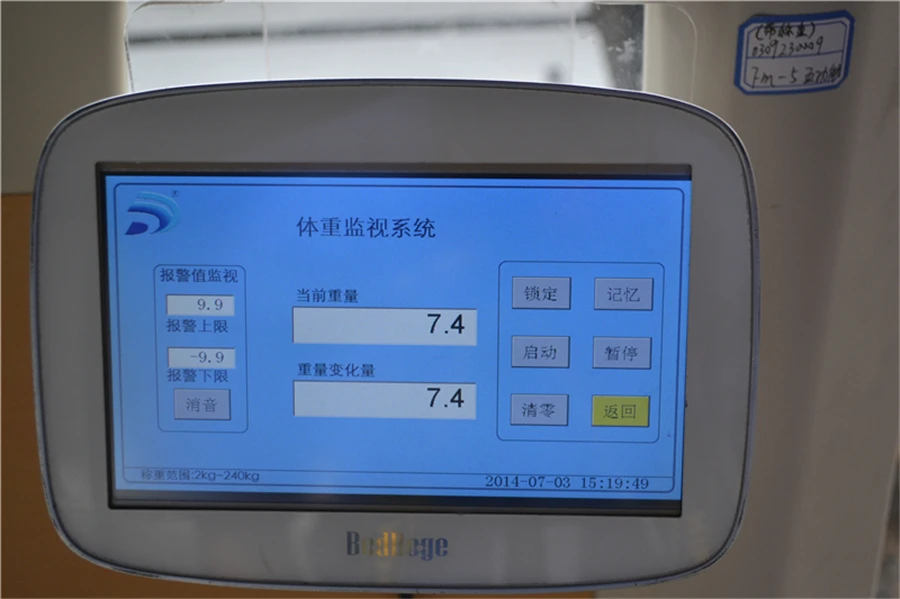

	1. Weighing scale is optional 2. Weighing range is 2-240kgs
1. The controller when this bed is not equipped with weighing function
