- Properties:
- Medical X-ray Equipments & Accessories
- Brand Name:
- MT-medical
- Model Number:
- D1
- Place of Origin:
- Anhui, China
- Instrument classification:
- Class I
- Product name:
- X-ray Film Viewer
- Function:
- Medical Radiography
- Size:
- 440x585x110
- Visual Area:
- 420x550
- Power:
- 90W
- Brand:
- MT
- Lifespan:
- ≥ 100000 hours
- Adaptor:
- Global Adaptive Power;AC90V-240V ,50/60Hz
- Quality Warranty:
- 3 years
- Packing Size:
- 500x600x140mm
- Supply Ability:
- 10000 Piece/Pieces per Month
- Packaging Details
- wooden case
- Port
- Shanghai

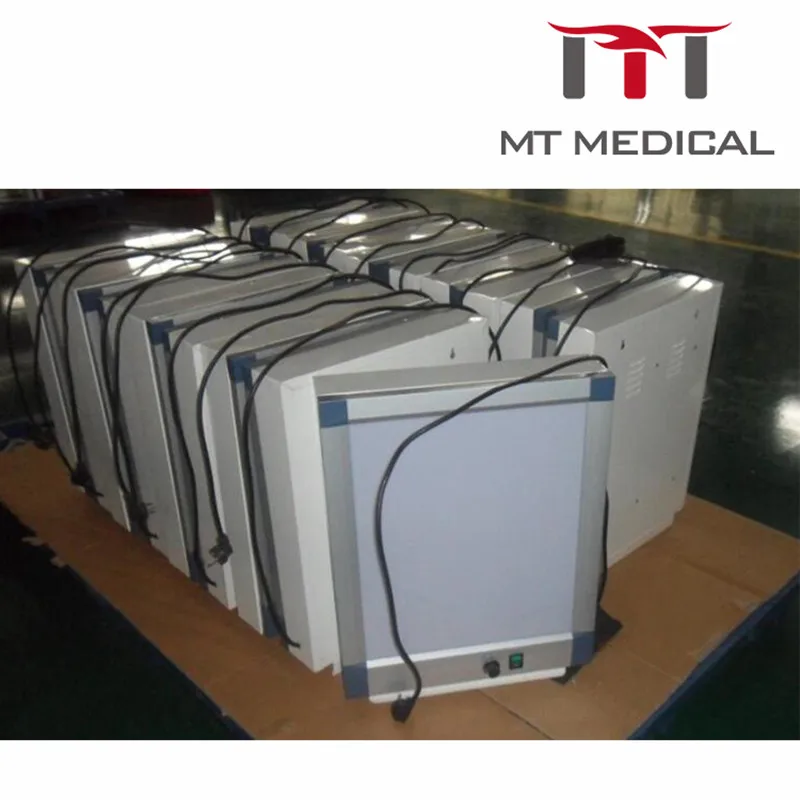

- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 1 2 - 5 >5 Est. Time(days) 5 14 To be negotiated
| Product Name | Single Panel LED Medical X-ray Film View Box |
| Size (LX W X H mm) | 440x585x110 |
| Visual Area(L X W mm) | 420x550 |
| Power(W) | 90W |
| Adaptor | Global Adaptive Power;AC90V-240V ,50/60Hz |
| Sensor Function | The panel will light up automatically when film inserted and off when moved away |
| Uniformity | ≥90% |
| Fixture | SS roller oblique compression type Fixture |
| Installation | Wall mounting, Bracket mounting |
| Application Scope | General Film,Digital Film,Breast Mammography Film |
| Application Condition | Room Average Illuminance ≤ 100 lux |
Features: A, Full Digital Control Compared to the analog control, it works more stable, flexible, accuracy, easier to use as well as longer lifespan.
B, Imported Acrylic View Panel Better light transmission and scattering diffusion, durable, never out of shape or discolored.
C, Eye Protective Feature The color temperature is up to 8000K, no harmful to human eyes, suit for long time observation.
D, PWM Low-Voltage Digital Continuous Dimming System Luminance can be modulated range from 1% to 100% continuously.
E, Film Sensor The panel will light up automatically when film inserted and off when moved away, and the panels in each bank works separately, can avoid the light influence from other panels while observing.
F, Separated Control Each bank can light up and dimming separately, every bank can be worked as a single viewer.
|
