PORTABLE ELECTRIC ARC STAINLESS STEEL WELDING MACHINE
Detailed Description
NO1.IGBT Chip TYPE
- Latest design,high-intesity plastic or iron panel,attractive appearance
- High duty output, smaller size, less weight,totally 5KG
- Single PCB with SMT,under 0.1% failure rate,easier to maintain
- Unique air-cooling system channel,anti-dust design
- Suitable for Carbon steel,Stainless Steel, alloy steel.
NO2.Technical Data
| Model | ARC-250G |
Type | IGBT |
Rated input voltage(V) | single phase AC220V±15% |
| Rated frequency(HZ) | 50/60 |
| Rated input power(KVA) | 9.3 |
| Rated input current(A) | 14 |
| Rated output | 220A/28V |
| Output current(A) | 20-250 |
| No-load voltage(V) | 63±5 |
| Rated duty cycle(%) | 40 |
| Efficiency(%) | 80 |
| Protection grade | IP21 |
| Insulation grade | F |
| Net weight(KG) | 11.6 |
| Gross weight(KG) | 12.8 |
| Housing of machine | iron |
| Dimension of machine(mm) | 486×185×352 |
| Packing | carton |
| Dimension of packing1V1(mm) | 512×265×375 |
| Including accessories: earth clamp×1pc,cable joint×2pcs,inner hexago spanner ×1pc | |
we ARC STAINLESS STEEL WELDING MACHINE lding machine
NO3.Product Show

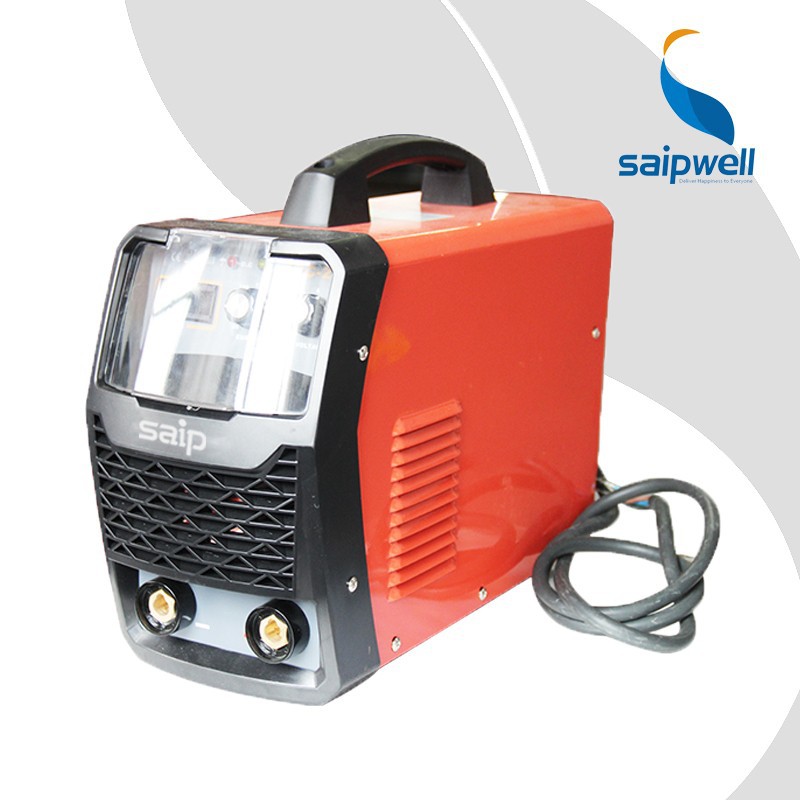

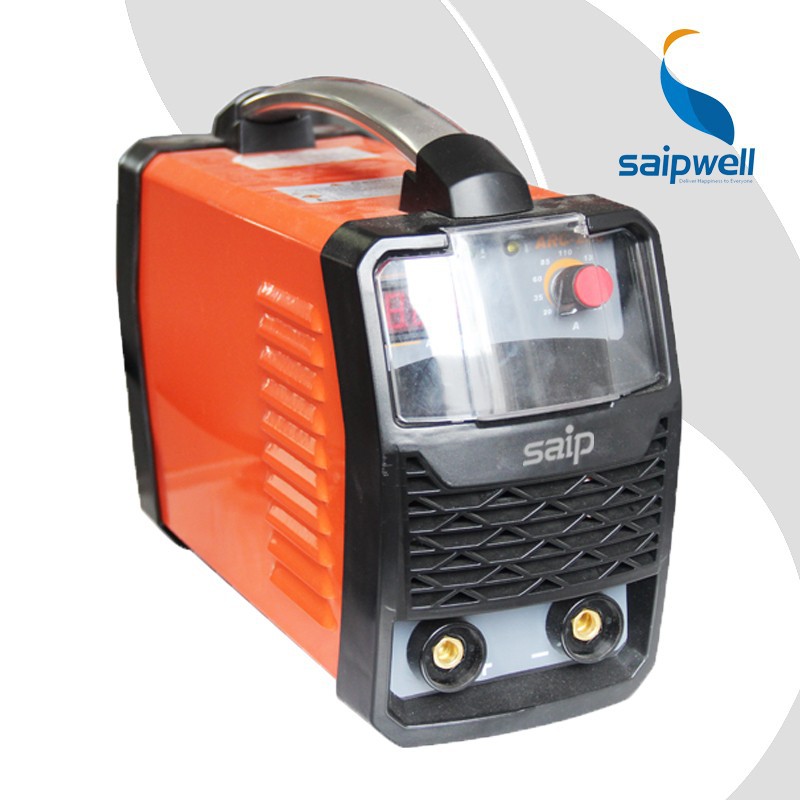

ARC STAINLESS STEEL WELDING MACHINE
NO4.Package
welding machinewelding machine
welding machinewelding machine
w
ARC STAINLESS STEEL WELDING MACHINE
Certificate
ARC STAINLESS STEEL WELDING MACHINE
Our Factory
Thanks for your view,welcome to visit our
WELDING MACHINE
