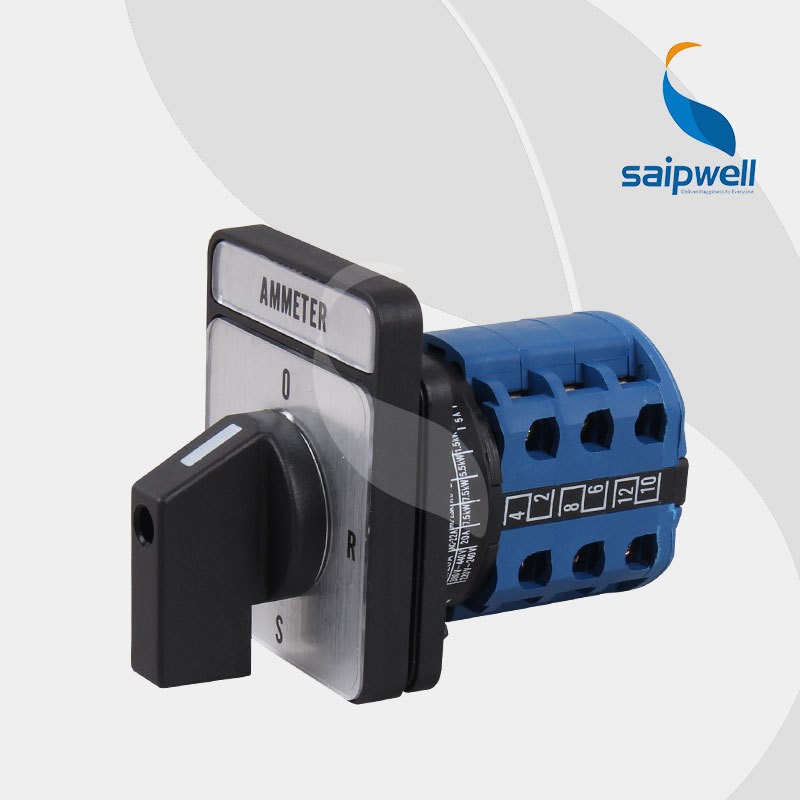

Saipwell high quality 20A 25A 32A 63A 80A 100A 4P changeover switch
| Saipwell high quality 20A 25A 32A 63A 80A 100A 4P changeover switch |
| 20A 25A 32A 63A 80A 100A 4P changeover switch |
| 4P changeover switch |
Product Characteristics :
Introduction LW26 series Universal Changeover Switch applied to circuits of AC 50Hz with working voltave up to 440V and rated working current up to 100A.
LW26 is suitable to control:air-conditioner,water pump and ventilating equipments,and AC motors with small power..
LW26 series Universal Changeover Switch have six current ratings:20A,25A,32A,40A,63A,80A and 100A.
LW26series has the finger protection terminals,which offers an extra advantage.
LW26 series Universal Changeover Switch has Larger insulation distance,quick disconnectinvg response.And is a good choice For DC circuits.LW 26 has additional contact which enable us to install the contact separetely.
LW26 series Universal Changeover Switch comply with:GB/T 14048.3,and IEC 60947-3.
Parameters
Technical parameters:
No. | Tech Parameters | Universal Changeover Switch |
1. | rated voltage | below 440V |
2. | rated current | 20A,25A,32A,63A,80A,100A |
3. | frequency | AC50HZ |
4. | No.of poles | 2P,3P,4P |
5. | No.of layers | make as required with circuit diagram |
6. | panel size | 30*30mm,48*48mm,64*64mm,88*88mm |
7. | colour of handle | black,white,red,grey |
8. | Working temperature | -25°C~+40°C REMARKS:the average temperature mustn’t be pass 35°C |
9. | Working height | ≤2,000m |
10. | Relative humidity |
≤50% with highest temperature +40°C,but allow higher humidity with low temperature less than 40°C (eg.:humidity 90%----teperature20°C) |
11. | Instalation conditions | polution class III |
12. | Mechanical life | 0.1*106times |
13. | Electrical life | 0.03*106times |
14. | Operative frequency | 120times/hour |
15. | transform angle | 30°/45°/60°/90°/120°/135°/150° |
Other Type:
| Description | LW30-25(20) | LW30-32 | LW30-40 | LW30-63 | LW30-80 | LW30-100 | ||||||||
| Rated thermal current | ITH | A | 25(20) | 32 | 40 | 63 | 80 | 100 | ||||||
| Rated working voltage | LE | V | 240 | 440 | 240 | 440 | 240 | 440 | 240 | 440 | 240 | 440 | 240 | 440 |
| Ie/Pe | Ie/Pe | |||||||||||||
| AC-21A | A/KW | 20/- | 20/- | 32/- | 32/- | 40/- | 40/- | 63/- | 63/- | 80/- | 80/- | 100/- | 100/- | |
| AC-22A | A/KW | 20/- | 20/- | 32/- | 32/- | 40/- | 40/- | 63/- | 63/- | 80/- | 80/- | 100/- | 100/- | |
| AC-23A | A/KW | 41379 | 15/7.5 | 22/5.5 | 41600 | 30/7.5 | 30/15 | 16011 | 43/22 | 57/18.5 | 57/30 | 70/22 | 70/37 | |
| AC-3 | A/KW | 11.7/3 | 11.7/5.5 | 41379 | 15/7.5 | 22/7.5 | 41600 | 13455 | 36/18.5 | 43/15 | 57/30 | 57/18.5 | 57/30 | |
