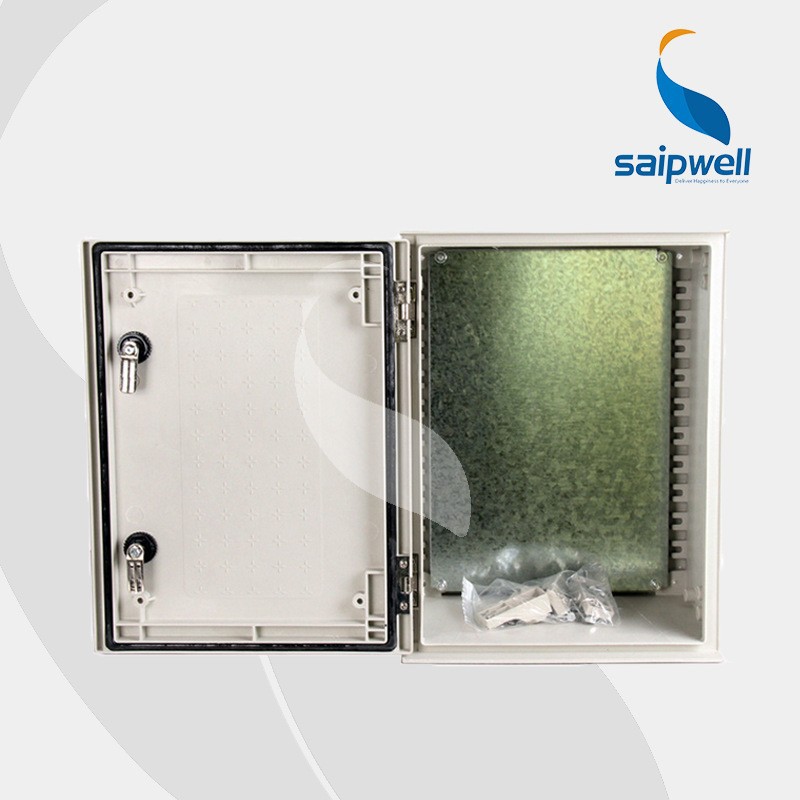

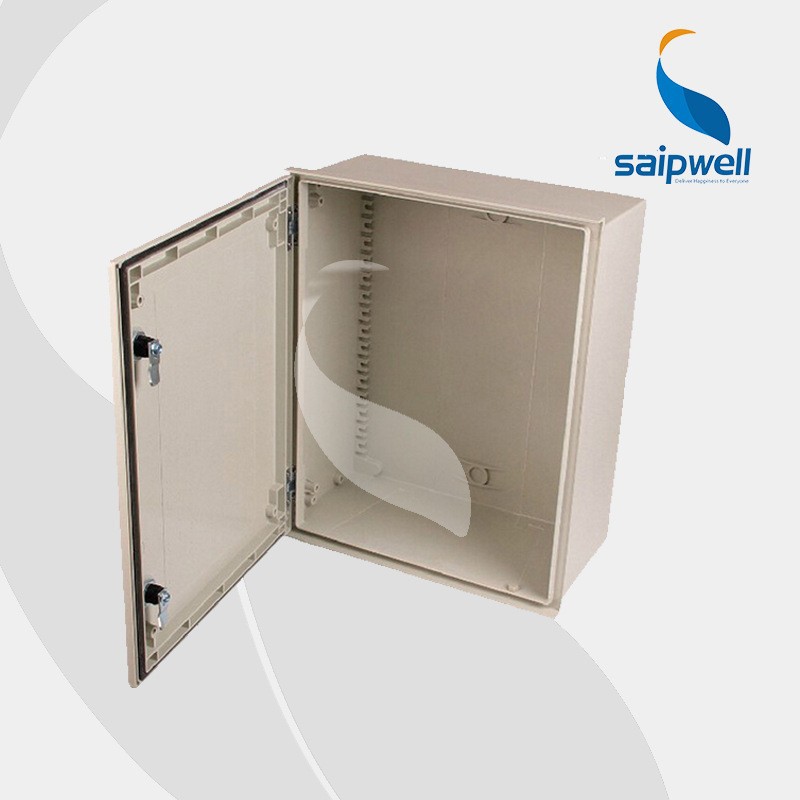

Manufacturer Saipwell 300*400*200mm fiberglass waterproof enclosure for temperature sensor
| Manufacturer Saipwell 300*400*200mm fiberglass waterproof enclosure for temperature sensor |
| 300*400*200mm fiberglass waterproof enclosure for temperature sensor |
| fiberglass waterproof enclosure for temperature sensor |
| Professional enclosure Manufacturer & desiger |
Parameters
1,The fiberglass waterproof enclosure can be easily installed and moved, the product is free from corrosion, carries superior insulation.
2,The fiberglass waterproof enclosure has passed waterproof and dustproof carried out under rigid quality standards.(IP 66)
3,The use is also convenient for the installation of Terminal Substitution Rail, Button Box, Small Terminal, Signal , Relay and Sensor , Communication and joint Box etc.
4.High quality fiberglass waterproof enclosure series, new imported materials , no recycled material.Good strength. Can do transparent and opaque or PC material , with corresponding backplate for choice.
6.The use is also convenient for the installation of Terminal Substitution Rail, aluminium case , Button Box, Small Terminal, Signal ,Relay and Sensor, Communication and joint Box etc.
Product Detail:
Components and parts
fiberglass waterproof enclosure
More Box Size:
| Polyester Box(Fiber Glass Box) | Inner Door | Polyester Mountng Plate | Steel Mounting Plate | ||||||||||
| Model | Dimension(mm) | Model | Dimension(mm) | Model | Dimension(mm) | Model | Dimension(mm) | ||||||
| Grey Door | Clear Door | W | H | D | Inner Door | M | N | M | N | C | E | ||
| SMC-302514G | SMC-302514T | 250 | 300 | 140 | PM-325 | 221 | 238 | SM-325 | 263 | 201 | |||
| SMC-403020G | SMC-403020T | 300 | 400 | 200 | ID-43 | 364 | 245 | PM-43 | 311 | 286 | SM-43 | 353 | 245 |
| SMC-404020G | SMC-404020T | 400 | 400 | 200 | ID-44 | 364 | 345 | PM-44 | 308 | 386 | SM-44 | 349 | 345 |
| SMC-504020G | SMC-504020T | 400 | 500 | 200 | ID-54 | 464 | 345 | PM-54 | 408 | 386 | SM-54 | 453 | 345 |
| SMC-604023G | SMC-604023T | 400 | 600 | 230 | ID-64 | 564 | 345 | PM-64 | 511 | 386 | SM-64 | 553 | 345 |
| SMC-605023G | SMC-605023T | 500 | 600 | 230 | ID-65 | 564 | 445 | PM-65 | 508 | 486 | SM-65 | 553 | 447 |
| SMC-806030G | SMC-806030T | 600 | 800 | 300 | ID-86 | 764 | 545 | PM-86 | 706 | 581 | SM-86 | 749 | 540 |
More Series Products:
Certificate:
Our company:
Shanghai Saipwell Electric Co., Ltd. is a manufacturer of fiberglass waterproof enclosure , Thermostats and all kinds of waterproof boxes with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in terminal substitution rail installation, button box, small terminal, relay, sensor, communication and other industries.
Business Principle: To conduct business in a simple straightforward manner.
To manufacture, innovative products that bring convenience to its users.
contact us
There are kinds of mountings with our products.
Such as electric terminal box,IFB Series information box,Information box,Information box module,PG type cable gland,ML-long type cable gland,PG type metal cable gland,M type metal gland,PGL-long type cable gland,ML long type metal cable gland,Round cable gland,Shrink cable gland,Rise neck cable gland,Round metal cable land,Glandhand for flexible tabe,AD flexible tube,Electric comb busbar,TH series din rail(steel),TH series din rail(aluminum),Power outlet,Switches and socket outlets,Isolator switch etc.
The other products of this series we can offer: pvc waterproof junction box, waterproof plastic box, plastic junction box , fiber optic junction box, standard junction box sizes, decorative junction box Switch box(screw open-close type),Switch box with lock(draw latch open-close type),Terminal box IP66,Control box(steel draw latches),Enclosure with lockable door,Junction box,Junction box with cable gland,Mi suitch box,Terminal junction boxes(IP65),Waterproof connection box,ABS waterproof box,PVC waterproof box,Mounting enclosures(back boxes),Enclosures(back boxes),Pushbutton box,SMC ployster enclosure,Fiberglass box,Aluminum enclosure,Fiberglass power distribution box,Steel wall mounting enclosure IP66,Wall mounting enclosure with inner door,Knock down cabinet with mounting plate,Stainless steel wall mounting enclosures,Transparent contact protection window hood,Combined socket distribution box,Waterproof distribution box,Distribution box ,DP1 series distribution box,DP3 series distribution box,DP5 series distribution box,Electric terminal box,IFB series information box,Information box etc.
