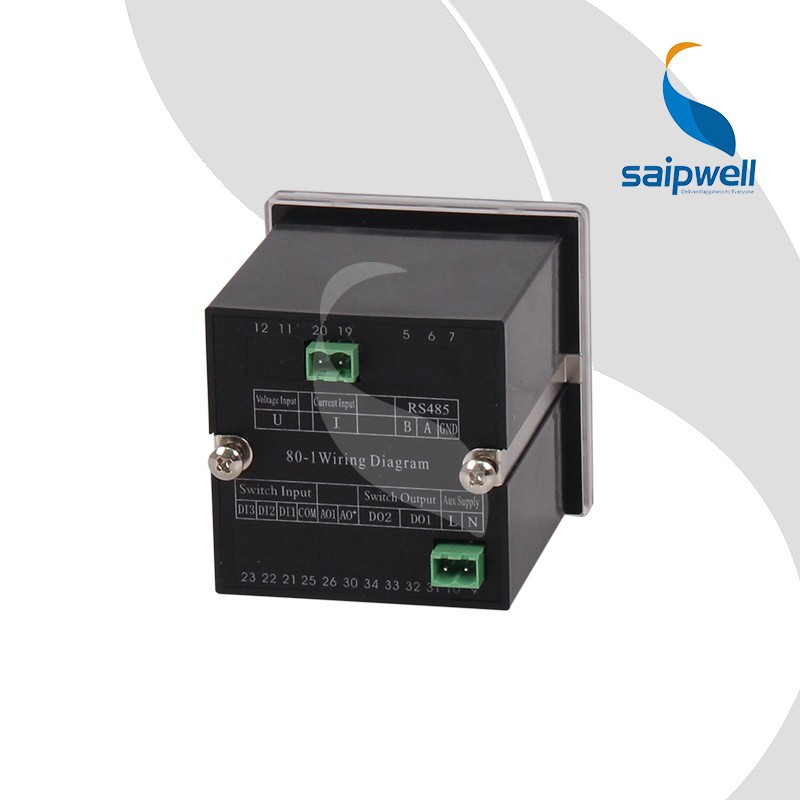

SAIPWELL/SAIP New Low Price LCD LED Single Phase amp Electric Meter
Intelligent Digital Meter Features:
1 Directly from the current,voltage transformeraccess signal,can be arbitraily set PT/CT ratio |
2 Can communication access to SCADA,PLC system:and a variety of communications industry software(Intouch, Fix,Cities,Kingview ect.) |
3 I/O switch,relay alarm output,DC4-20mA analog function module design. |
4 with evtremal measure,demand measurement ,64event record and other functions. |
5 Easy Installation, Simple Wiring, Highly Cost Effective. |
Intelligent Digital Meter Summarize:
1),Intelligent digital meter is in power system, industrial abd mining enterprises,public facilities,intelligent building power monitoring requirements abd design .it can measue all the power parameters,such ad current,voltage,active power,reactive power, power,harmonic,ectreme value,demand,multi rate etc.due tothe power meter with improved communications networking capabilities,so we called multifunction power meter. it is suitable for real time power monitoring system.
2), The power meter has very high ratio of performance to price,can directly replace the conventional power transducer and measuring meter.As an advanced intelligent,digital front-end acquisition component, the series of multifunctional meter has been widely used in varies control system,SCADA system and energy management system.
3), Best quality grass and integral punch forming method are adopted,resulting in outstanding conduction.
4), Intelligent digital meter passed CE&RoHS,CQC,UL.
5), OEM/ODM Service.
SAIPWELL/SAIP New Low Price LCD LED Single Phase amp Electric Meter
intelligent digital meter Specification | intelligent digital meter Parameter | ||
Input voltage display | Network | 3 phase 3 line,3 phase 4 line | |
Voltage | Rated voltage | AC100V,400V(please note when purchase) | |
Overload | Permanent:1.2 times temporary:2 times/10s | ||
Power consumption | <1VA(each phase) | ||
Impedance | >300kΩ | ||
Accuracy | RMS measurement, CLASS 0.5 | ||
Current | Rated current | AC1A,5A(please note when purchase) | |
Over load | Permanent,:1.2 times temporary:2 times/10s | ||
Power consumption | <0.4VA(each phase) | ||
Impedance | <20MΩ | ||
Accuracy | RMS measurement,CLASS 0.5 | ||
Frequency | 40~60Hz, accuracy 0.1Hz | ||
Function | Active power, reactive power, Sparent power,Accuracy: 0.5 class | ||
Electric energy | Four quadrant measurement, active poweraccuracy rate0.5 class, reactive power accuracy rate1 class | ||
Display | Programmable, switching, circular two, three, or four rows LED display | ||
Power | Operation range | AC/DC 80~270V | |
Power consumption | <5VA | ||
Output | Digital interface | RS-485,MODBUS-RTU | |
Pulse input | Two power pulse output, photo-couple relay | ||
Environment | Working environment | -10~55ºC | |
Store environment | -20~75ºC | ||
Safety | Voltage withstand | Input and power>2kV, input andoutput>2kV, power and output>1kV | |
Insulation | Input, output, power supply to machine hull >5 | ||
SAIPWELL/SAIP New Low Price LCD LED Single Phase amp Electric Meter
SAIPWELL/SAIP New Low Price LCD LED Single Phase amp Electric Meter
SAIPWELL is a famous enterprise specialized in design, production and sales of electric equipments.Had factory located in the largest manufacturing base of electric equipment of Wenzhou China, which is called "the Electric Equiment Capital of China".
Business Type:Manufacturer.
Main Products: low-voltage apparatus, welding equipment, instrument and meter, photoelectron, electrical products for construction ,automobile apparatus and industrial automation.
SAIPWELL/SAIP New Low Price LCD LED Single Phase amp Electric Meter
1. Reply inquiry in 24 hours.
2,Material,size and other requirements are customized.
3,Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
4,Answer your question detailed
5,Solve the problem with you during using our products
6,More our products you can visit our website:http://www.saipwell.com
Transportation:
1.By Express: DHL, FEDEX, UPS, TNT, SF EXPRESS and China Post, China Small Package and so on.
2. By Air: We can ship from Ningbo, Shanghai, Shenzhen, Hongkong, Urumqi, Beijing.
3.By Sea: We can offer you FOB Ningbo, FOB Shanghai, FOB Shenzhen, FOB Urumqi, FOB XiaMen, FOB Beijing.
4. We also can send to your forwarder or agent in China, who can arrange shipment for you.
FAQ:
Q: Is sample available and free?
A:Sample is available , but the cost should be payed by you.
The cost of sample will be refund after further order.
Q: What certificate do you got ?
A:We got CE , SAA , RoHS , SGS , ISO...
Q: What"s your warranty ?
A: 2 years.
Q: What"s the delivery time ?
A: It usually takes 5-25days after we confirm the payment,
but specific time should be based on the order quantity.
Q: How about the transport ?
A:We usually transport by Express for samll order and by sea or by air for large quantity.
We also offer digital meter, energy meter, electric meter, meter, digital ph meter, digital water meter, digital energy meter, digital clamp meter, panel meter, digital panel meter, digital water meter, digital power meter, stop digital power meter etc.
