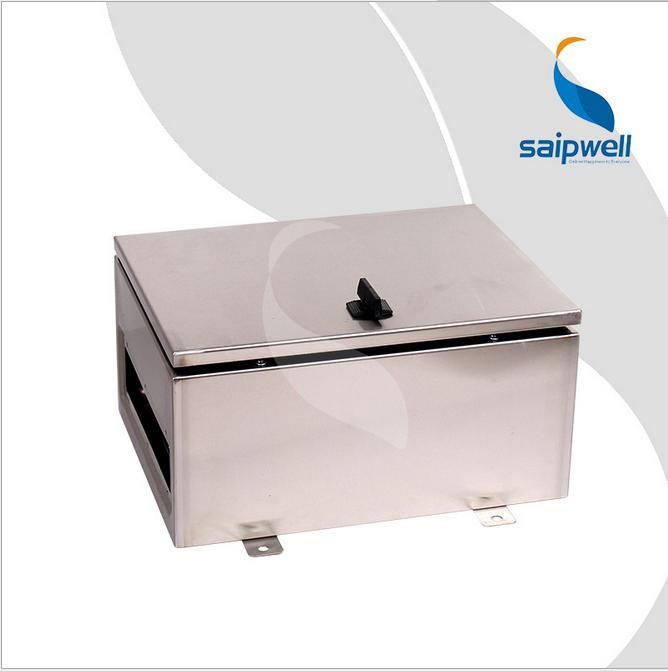

Stainless Steel waterproof control panel enclosure, cabinet enclosures

Click on the image to view the original image

Product：	views：4Stainless Steel waterproof control panel enclosure, cabinet enclosures
Branch：	Saipwell
Type：	control panel enclosure
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 18:25

Product Details

Overview

Quick Details

Place of Origin:: Shanghai, China

Brand Name:: Saipwell

Model Number:: SSE32-A-108

Protection Level:: IP66

Type:: control panel enclosure

External Size:: 300mm*200mm*150mm

Material:: SS201, SS304,SS316,SS401

Protection:: NEMA4X , NEMA12

Waterproof Rate:: IP66

Usage1:: Distribution Box

Usage2:: Control Box

Usage3:: Junction Box

Usage4:: Outlet Box

Usage 5:: Switch Box

Finish1:: Brushed

Finish2:: Powder Coated

Supply Ability

Supply Ability:: 10000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details: Individual Carton & Pallet

Port: Shanghai/Ningbo

Stainless Steel waterproof control panel enclosure cabinet enclosures

Feature:

Useage:

this enclosure is used to shield those components from externa lEMI/RFI interference.
are designed for housing electrical components in highly corrosive environments. They are designed for indoor or outdoor
use primarily to provide a degree of protection against corrosion, windblown dust and rain, splashing water,hose directed water and damage from external ice formation.

Constrution:

Fabricated in accordance with NEMA 304 stainless steel or 316 stainless steel .
Seams continuously welded and ground smooth .
Stainless steel external screw clamps.
Stainless steel continuous hinge.
Neoprene gasket attached to cover with oil resistant adhesive.
External mounting feet.
have stainless steel stand-offs provided for mounting optional panel.
Seamless foam-in-place gasket adjacent to monel mesh assures water-tight, dust-tight and EMI seal
Removable door with continuous hinge
Weldnuts provided for mounting optional panels and terminal kits
Bonding provision on door

Finish

Cover and sides of body have a smooth #4 brushed finish.
Accessories See also Accessories.
Fast-Operating Clamp-Cover Junction Box Clamp
Panels for Junction Boxes
Terminal Block Kit Assembly for Junction Boxes Overview
Steel and Stainless Steel Window Kits Continuous
Hinge NEMA 4X boxes are provided standardin Type 304 stainlesssteel.
Optional panelsare painted white orstainless steel panels are unpainted.

Options:

Type 316Stainless Steel.
Custom box size or construction.
Hasp for padlocking.

stainless steel distribution boxes|stainless steel distribution boxes|stainless steel electric meter box|stainless steel junction box|stainless steel switch box|stainless steel waterproof box

Product Detail:

Stainless Steel waterproof storage cabinets

More Product As Reference:

Stainless Steel waterproof storage cabinets

Stainless Steel waterproof storage cabinets

Stainless Steel waterproof storage cabinets

Stainless Steel waterproof storage cabinets
