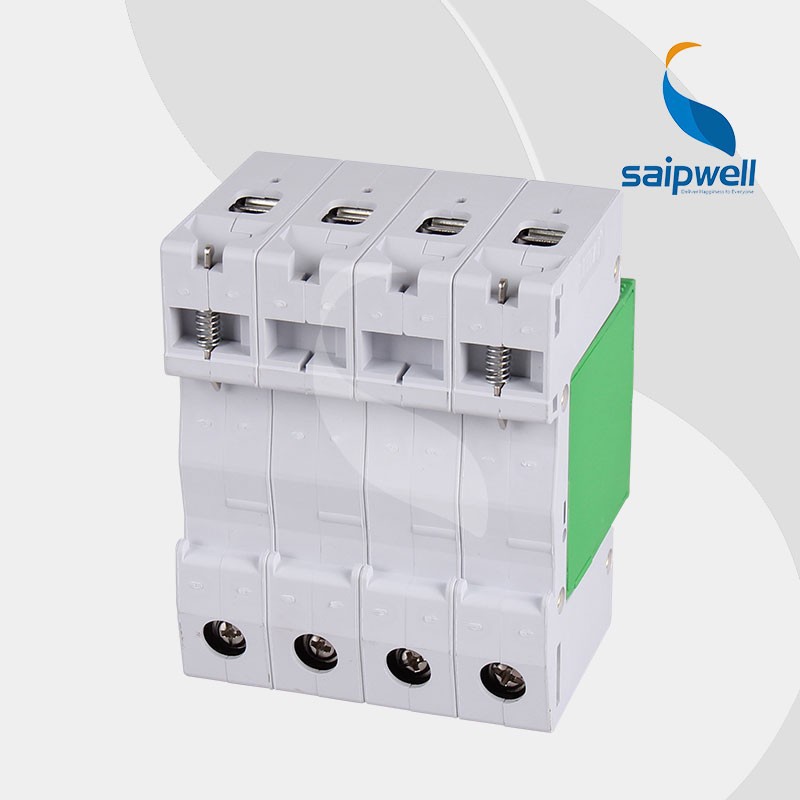

Saipwell Single Phase Class B 220V cctv surge protector
Feature:
- cctv surge protector
- High quality pressure sensitive resistance, stable performance
- Indicate deterioration module : green (normal),red (failure).
- Temperature control breaker, build-in over currents fuse protector.
- Extremely quick respond, large intake capacity.
- Small leakage power, long work life, simple maintenance.
- 35mm guide rail installation, standardized module design.
Application:
cctv surge protector is for protecting low-voltage consumer’s installations against indirect lightning dischargesand is to be installed in LEPM zone:LPZ1 - LPZ2 as per IEC 62305. It consists of a high performance varistor with thermal disconnection tripping device. The plug-in module / base design facilitate replacement of a failed module without the need to remove system wiring etc. Taike hold patent for the design of casing.
cctv surge protector in electric box or floor distribution box; Distribution box or the power supply front; residential building units a form of a distribution box; room information systems applicable to Class C power distribution box protection; industrial plant electrical distribution box (cabinet) of power protection.
Technical Parameters:
cctv surge protector
TYPE | SPD10 4P |
Protection Class: | C |
Max.Continuous Operating Voltage (Uc): | 275V |
Nominal Discharge Current (8/20μs) (In): | 30KA |
Max. Discharge Current (8/20μs) (Imax.): | 60KA |
Voltage Protection Level( Up): | ≤2.0KV |
Response Time: | < 25ns |
Leakage current: | ≤20μA |
Working Environment: | Temperature -40°C +80°C;Relative humidity<95%; |
indicate deterioration: | green(normal),red(malfunction) |
Protection Mode: | L-PE,N-PE (2P) |
Material of Outer Shell: | Flame retardant materials |
Dimension(mm): | 98×62×54 |
Weight(kg) : | 0.397 |
220V Surge Protector

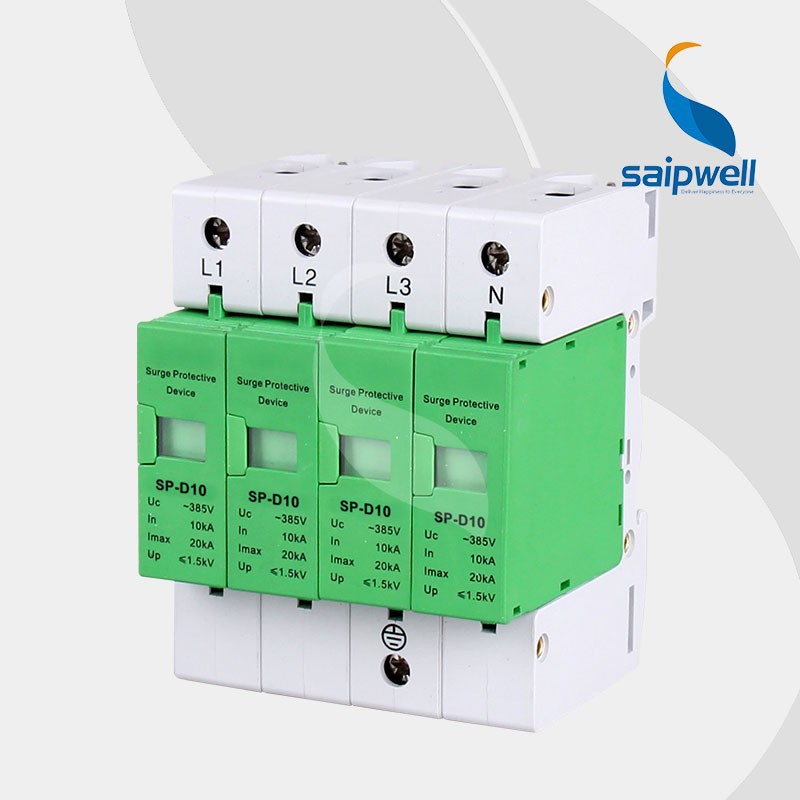

Product show:
surge protective device (SPD)
More series product :
Cetification:
220V surge protection device
Trade Terms:
surge protective device (SPD)
1.Payment: T/T Advance, L/C 100% Payment if total amount less than $10,000USD
2. Lead time: 4-15working day, subject to the order quantit
3. Shipment: By air/sea Or express
4. MOQ: 100pcs
Our service:
♦OEM is available: voltage ,current ,application ,design and other requirements are customized.
♦How to order our product ?
1.Please tell us the model and quantity and other request you need.
2.We make the PI for you.
3.After you confirm the PI, we arrange the order for you after receiving your payment.
4.After the goods finished, we send the goods out to you and tell you the tracking number.
5.We will track your goods until you receive the goods.
♦High quality after-sale service :
1.Two years warranty
2.Track the order until you get the goods
3.Choose the shipping company according to customer"s requirements
4.We will replace the broken parts with new parts in your next order
5.Solve the problem with you during using our products
Our company :
Shanghai Saipwell Electric Co., Ltd. is a manufacturer of surge protective device (SPD) ,breaker with well equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in terminal substitution rail installation, button box , small terminal, relay, sensor, communication and other industries.
Business Principle: To conduct business in a simple straightforward manner. To manufacture, innovative products that bring convenience to its users.
we have 220V power lightning arrestor ,surge arrester, surge protective device, surge protection device, surge protection, power surge protector, surge arrestor, surge diverter, surge suppressor, 220v surge protector, surge arresters, surge absorber, surge voltage protector, lightning arrester, lightning protection, lightning arrestor ,lightning adapter ,lightning protector ,lightning protection device , surge counter and so on
