SAIPWELL LC 013 Fan Airflow Monitor Without Protective Grille
LC 013 Airflow Monitor Feature:
1. Mechanical switch contact
2. Versatile fields of application
3. Small size
4. Easy to connect
5.CE&RoHS
SAIPWELL LC 013 Fan Airflow Monitor Without Protective Grille
Specification:
LC 013 Airflow Monitor:
The airflow monitor (NC/NO) is designed to indicate the loss of air movement of a fan or filter fan. The contact detects the loss of air movement caused by fan failure or blocked filter media regardless of direction of air. Its simple mechanical operation makes is a viable alternative to electronic monitoring systems.
SAIPWELL LC 013 Fan Airflow Monitor Without Protective Grille
Technical Data:
Contact type | reed / magnet contact |
Normally Closed (NC) | switch contact open when air is flowing |
Normally Open (NO) | switch contact closed when air is flowing |
Max. switching voltage | NC: 240VDC (UL), 240V AC/DC (VDE) / NO: 60VDC |
Max.switching current | NC: DC 500mA / NO: DC 170mA |
Max. switching capacity | 10W (resistive load) |
Switching threshold of airflow velocity | >2.5m/s (hysteresis:>1m/s) |
Max.airflow velocity | 50m/s |
Contact resistance | <370mΩ (with wire) |
Max. air humidity | 70% RH (not precipitating) |
Service life | >100,000 cycles |
Connection | 2×single strand AWG26, length 500mm, tip of stranded |
wire 5mm stripped and tinned (NC:black, NO:blue) | |
Mounting | alternatively integrated integrated in protective grille (see table). |
mounting clamp or mounting clip | |
Casing | plastic according to UL94-HB, black |
Fitting position | bidirectional tab perpendicular to airflow |
Operating / Storage temperature | -20 to +50°C (-4 to +122°F) / -20 to +80°C (-4 to +176°F) |
Protection type | IP20 |
| Description | Art. No. (NC) | Art. No. (NO) | Dimensions | Weight (approx.) |
| Airflow monitor with mounting clamp and mounting clip LC 013 | 01300.0-00 | 01300.1-00 | 34 x 17.5 x 7.5mm | 5g |

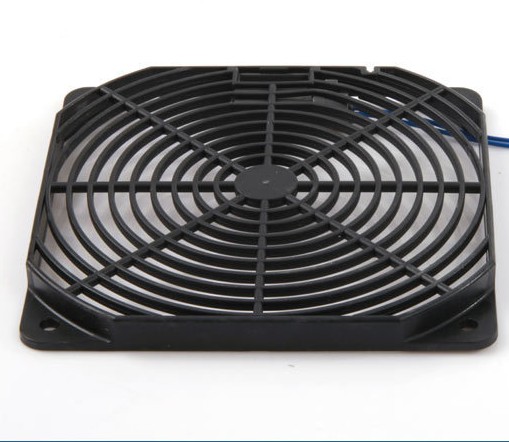

| Airflow integrated in protective grille (plastic) LCF 013 | 01301.0-00 | 01301.1-00 | 80 x 88 x 10.5mm | 20g |
| Airflow integrated in protective grille (plastic) LCF 013 | 01302.0-00 | 01302.1-00 | 92 x 92 x 10mm | 20g |
| Airflow integrated in protective grille (plastic) LCF 013 | 01303.0-00 | 01303.1-00 | 120 x 120 x 10mm | 30g |
