| SAIPWELL/SAIP 28VDC/240VAC Magnetic Latching Relay |
| 28VDC/240VAC Realy |
| Silver alloy contact |
| PCB mounted Relay |

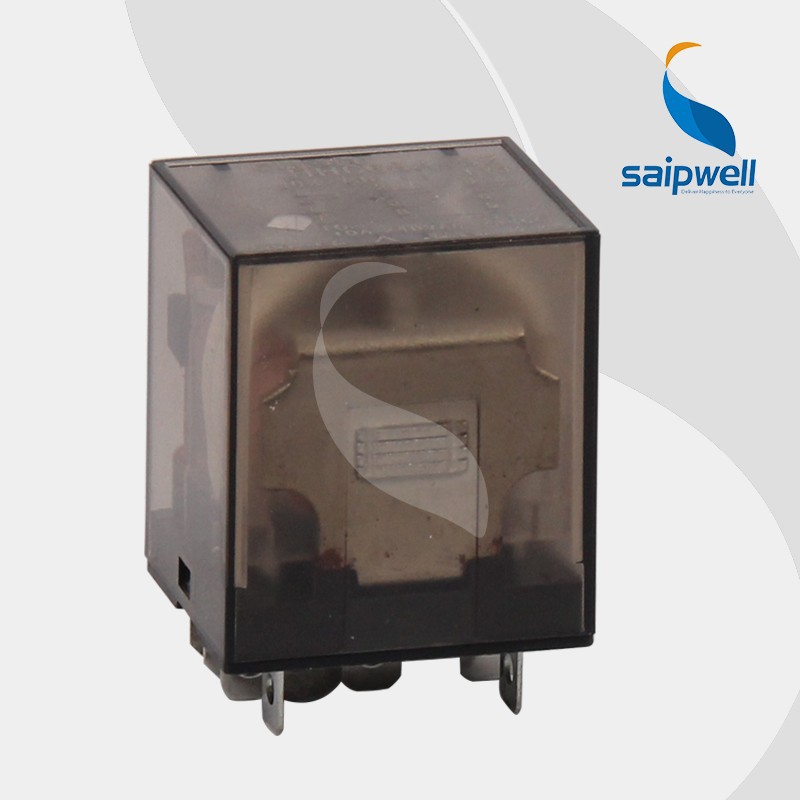

SAIPWELL/SAIP 28VDC/240VAC Magnetic Latching Relay
1,Miniature,light,high sensitivity,long life.
2,1 group(15A),2 group,3 group,4 froup(10A) contact transfermation are available.
3,Installation method like PCB print layout,Socket type,flange type are avaible.
4,Indicator light and diode are optional.
5.Silver alloy contact, with the features of heat resistance,shock resistance,high flame retardant refractive index, is used to make the casing.
6.Best quality grass and integral punch forming method are adopted,resulting in outstanding conduction.
7.Our company has 7 years exported experiences , we are an enterprise specialized in design , production and sales of electric equipment .
8.Electromagnetic relay passed,CE&RoHS,CQC,UL.
9.OEM/ODM Service.

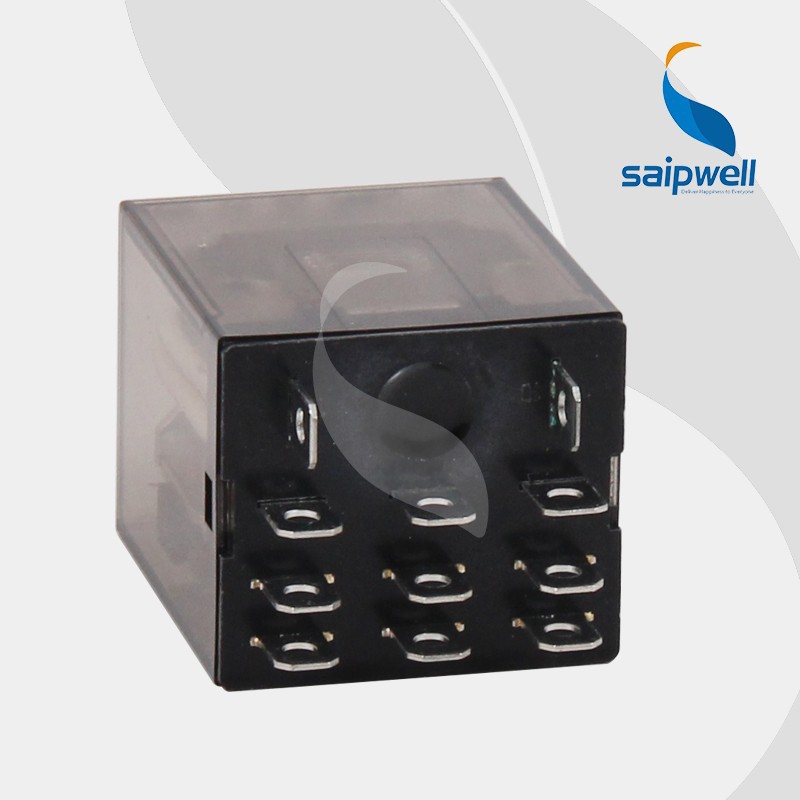

SAIPWELL/SAIP 28VDC/240VAC Magnetic Latching Relay
Contact type | 1Z,1H,1D;2Z,2HM2D;3Z,3H,3D;4Z,4H,4D |
Contact resistance | ≤ 100mΩ |
Electrical life | ≥ 10^5 times |
Mechanical life | ≥ 10^7 times |
Operate time | ≤15 ms |
Release time | ≤10 ms |
Mounting | PCB |
Contact material | Silver alloy |
Dimensions | 27.3 x 21 x 35mm |
Weight | approx. 35g |
Fitting position | variable |
Operating/Storage temperature | -25 to +55°C |
Certificate | CE,CQC,UL |
SAIPWELL/SAIP 28VDC/240VAC Magnetic Latching Relay
Relay Socket Series:
SAIPWELL/SAIP 28VDC/240VAC Magnetic Latching Relay
SAIPWELL/SAIP 28VDC/240VAC Magnetic Latching Relay
1, Material,size and other requirements are customized.
2, Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3, Answer your question
4, Solve the problem with you during using our products
5,More our products you can visit our website:http://www.saipwell.com
Transportation:
FAQ:
Q: Is sample available and free?
A:Sample is available , but the cost should be payed by you.
The cost of sample will be refund after further order.
Q: What certificate do you got ?
A:We got CE , SAA , RoHS , SGS , ISO...
Q: What"s your warranty ?
A: 2 years.
Q: What"s the delivery time ?
A: It usually takes 5-25days after we confirm the payment,
but specific time should be based on the order quantity.
Q: How about the transport ?
A:We usually transport by Express for samll order and by sea or by air for large quantity.
6,We also offer electromagnetic relay,switch power,solid state relay,solid state voltage regulator,time relay,hydraulic switch,digital display instrument,terminal,combined connection terminal etc.
7,Socket accessories: writing board, fixed card.
