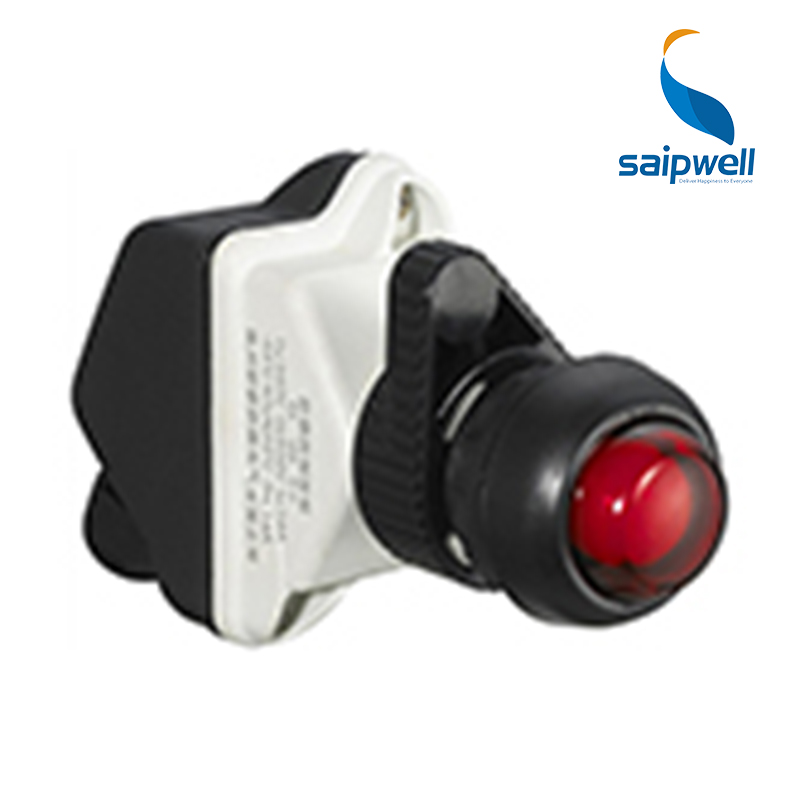

Explosion-proof Push Button,Switch,Indicator light of board Back Unit Type
| Explosion-proof Push Button |
| Explosion-proof Indicator light |
| Explosion-proof Signal Light |
SAIPWELL
The standard diameter of front neck for explosion-proof board module is 30mm.Thickness of installing panel should be 1-6mm.Widely used in control device and monitoring equipment,and it can also be used separately.The flexible cable can be equipped according to he user"s request.
A large number of versions of actuating elements are available for the button and indiacator units.
LED light source is used in explosion-proof signal lamp of board back module type,and thermal swicth is also build-in.There are five color avaliable.
-The laser mark of button are never fade
-Retted current of board back module type explosion-proof swich is 16A,and it"s machanical life is 2,000,000 times.
-The features of board back module type explosion-proof signal lamp are high brightness,long life and it"s electric life is more than 300,000 hours./SAIP IP67 250A/400V 5 Pole Large AMP Waterproof CEE/IEC Industrial Plug
Main Technical data:
Module:
| Ex mark | Ex de IIC Gb |
| Intended use | Can be used in zone 1 and zone 2 |
| Ambient temperature | -40 ℃ ≤Ta ≤+55 ℃ |
| Operating temperature | -40 ℃...+90 ℃ |
| Degree of protection | IP20 |
| Rated voltage | Max AC250V DC110V |
| Rated current | Max 16A(AC) 1A(DC) |
| Terminals | 2x2.5mm2 |
| Mechanical life | 100,0000 times |
Operation head:
| Ex mark | Ex e II Ex tD A21 |
| Intended use | Can be used in zone 1, 2 and zone 21, 22 |
| Ambient temperature | -40 ℃ ≤Ta ≤+55 ℃ |
| Degree of protection | IP66 |
| Material | Polyamide |
1,Material,size and other requirements are customized.
2,Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3,Answer your question detailed
4,Solve the problem with you during using our products
Transportation:
FAQ:
Q: Is sample available and free?
A:Sample is available , but the cost should be payed by you.
The cost of sample will be refund after further order.
Q: What cerficate do you got ?
A:We got CE , RoHS ,, ISO...
Q: What"s your warranty ?
A: 1 years.
Q: What"s the delivery time ?
A: It usually takes 7-25days after we confirm the payment,
but specific time should be based on the order quantity.
Q: How about the transport ?
A:We usually transport by Express for samll order and by sea or by air for large quantity.
