Home > Products > 12v 200ah lead acid battery power plus lead crystal battery

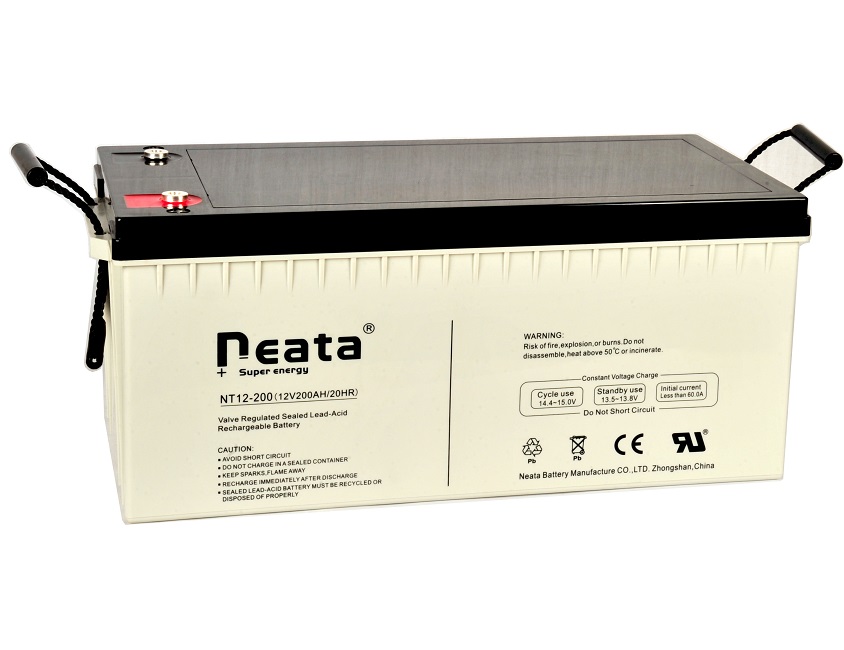

12v 200ah lead acid battery power plus lead crystal battery
Click on the image to view the original image
Product： views：512v 200ah lead acid battery power plus lead crystal battery
Branch： NEATA
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 05:19
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
NEATA
Model Number:
NT12-200(12v 200ah)
Nominal Capacity:
200AH, 200AH/10HR
Usage:
UPS
Sealed Type:
Sealed
Maintenance Type:
Free
Weight:
61.5kg
Company established year:
2005
Certificate:
ISO,CE,UL,ROHS, SONCAP
Cycle use:
14.6-15.0V
Standby use:
13.5-13.8V
Initial current:
Less than 60A
Designed life:
9
QTY/CTN:
1
Voltage:
12v
Size:
522*238*218*238mm
Supply Ability
Supply Ability:
20000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
546*264*290mm
Factory standard box or customize box
Port
ZHONGSHAN OR SHENZHEN
Product Introduction

12v 200ah lead acid battery power plus lead crystal battery

Product Parameters
Nominal Voltage
12V
Nominal Capacity (10 hour rate)
200Ah
Capacity
25 degrees (77°F)
10 hour rate (6.5A)
200Ah
3 hour rate (16.2A)
150Ah
1 hour rate (35.8A)
110Ah
Internal Resistance
Full Charged Battery 25degrees(77°F)
≤8mΩ
Cyclic Life
50%(C10) Depth of discharge
600Times
Float Life
25degrees(77°F) Float charge at 13.8V
About 3 Years
Capacity affected by Temperature
(10 hour )
40degrees(104°F)
102%
25degrees (77°F)
100%
0 degrees (32°F)
85%
-15 degrees (5°F)
65%
Self-Discharge
25degrees(77°F)
Capacity after 3 month storage
90%
Capacity after 6 month storage
80%
Capacity after 12 month storage
62%
Charge (Constant Voltage) 25°C(77°F)
Cycle
Initial Charging Current Less than19.5A
Voltage 14.6-15.0V
Float
Voltage 13.5-13.8V
Component
Positive plate
Negative plate
Container
Safety valve
Terminal
Separator
Electrolyte
Raw Material
Lead dioxide
Lead
ABS
Rubber
Pb
Fiberglass
Sulfuric acid
Why Choose Us

1.About Us.

NEATA Battery Manufacture Co.,Ltd. is a high tech enterprice which has specialized in R&D,manufacture and sales of VRLA batteries.

2.Equipment

We have full sets of equipment for production and inspection.

3.Certification

ISO9001:2008, ROHS,CE(EN60896, EN60001), UL

Product Processing
Product Packing
Product Application

NEATA batteries are highly recognized all over the word and widely applied in automobiles,marine boats,electronic bicycles,skateboards,vacuum cleaners,air pumps and telecommunication,emergency lighting,security and burglar alarm,power station,solar,nation defense etc.

Exhibition

InterSolar Middle East 2016

Date: 2016.9.19-2016.9.21
Place: Dubai International Exhibition Center
Booth No.: HK5,Hall 6
