Overview
Quick Details
- Place of Origin:
- Guangdong, China
- Brand Name:
- NEATA
- Model Number:
- NT12-80AH
- Usage:
- UPS
- Sealed Type:
- Sealed
- Maintenance Type:
- Free
- Certification:
- UL, ce, ROHS
- Weight:
- 23.0kg±150g
- Voltage:
- 12v
- Size:
- 350*166*178m
- Nominal Capacity:
- 80AH/10HR
- Company established year:
- 2005
- Certificate:
- ISO,CE,UL,ROHS
- Cycle use:
- 14.6-15.0V
- Standby use:
- 13.5-13.8V
- Initial current:
- Less than 24A
- Designed life:
- 5~8 years
- Product name:
- 12V 80AH AGM solar battery
Product Certification Verified
- UL Certified.
Supply Ability
- Supply Ability:
- 50000 Piece/Pieces per Month
Packaging & Delivery
- Packaging Details
- Factory standard box or customize box
- Port
- Shenzhen port, Zhongshan port
- Picture Example:
- Lead Time:
Quantity(Pieces) 1 - 5000 >5000 Est. Time(days) 30 To be negotiated
Product Introduction
Solar Gel Battery 12V 80Ah 100Ah capacity UPS EPS inverter energy storage power supply spare backup usage
Product Parameters
Nominal Voltage | 12V | ||
Nominal Capacity (10 hour rate) | 80Ah | ||
Capacity 25 degrees (77°F) | 10 hour rate (8.0A) | 80Ah | |
3 hour rate (20A) | 60Ah | ||
1 hour rate (44A) | 44Ah | ||
Internal Resistance | Full Charged Battery 25degrees(77°F) | ≤15mΩ | |
Cyclic Life | 50%(C10) Depth of discharge | 800Times | |
Float Life | 25degrees(77°F) Float charge at 13.8V | About 5 Years | |
Capacity affected by Temperature (10 hour ) | 40degrees(104°F) | 102% | |
25degrees (77°F) | 100% | ||
0 degrees (32°F) | 85% | ||
-15 degrees (5°F) | 65% | ||
Self-Discharge 25degrees(77°F) | Capacity after 3 month storage | 90% | |
Capacity after 6 month storage | 80% | ||
Capacity after 12 month storage | 62% | ||
Charge (Constant Voltage) 25°C(77°F) | Cycle | Initial Charging Current Less than 24A Voltage 14.6-15.0V | |
Float | Voltage 13.5-13.8V |
Component | Positive plate | Negative plate | Container | Safety valve | Terminal | Separator | Electrolyte |
Raw Material | Lead dioxide | Lead | ABS | Rubber | Pb | Fiberglass | Sulfuric acid |
Product Processing

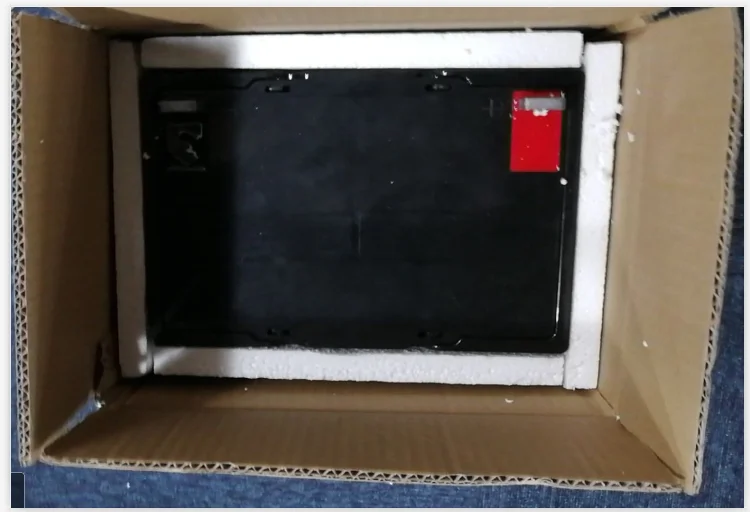

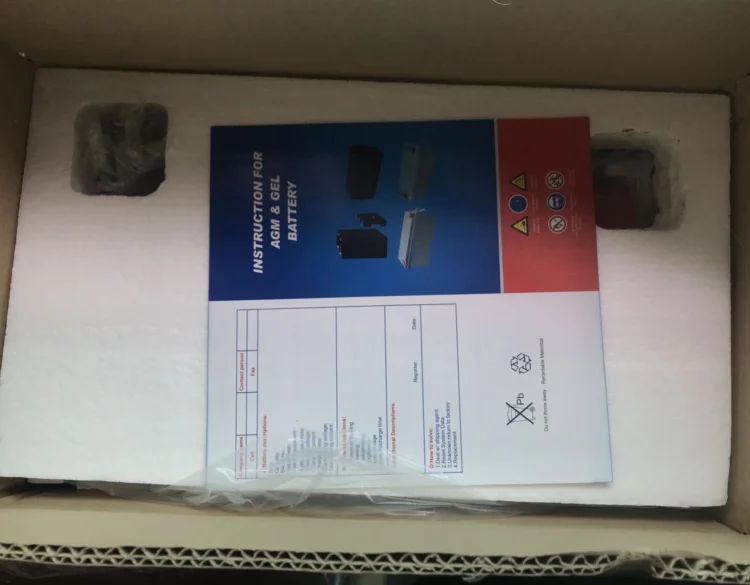

Product Packing
Product Application
NEATA batteries are highly recognized all over the word and widely applied in automobiles,marine boats,electronic bicycles,skateboards,vacuum cleaners,air pumps and telecommunication,emergency lighting,security and burglar alarm,power station,solar,nation defense etc.
Why Choose Us
1.About Us.
NEATA Battery Manufacture Co.,Ltd. is a high tech enterprice which has specialized in R&D,manufacture and sales of VRLA batteries.
2.Equipment
We have full sets of equipment for production and inspection.
3.Certification
ISO9001:2008, ROHS,CE, UL
