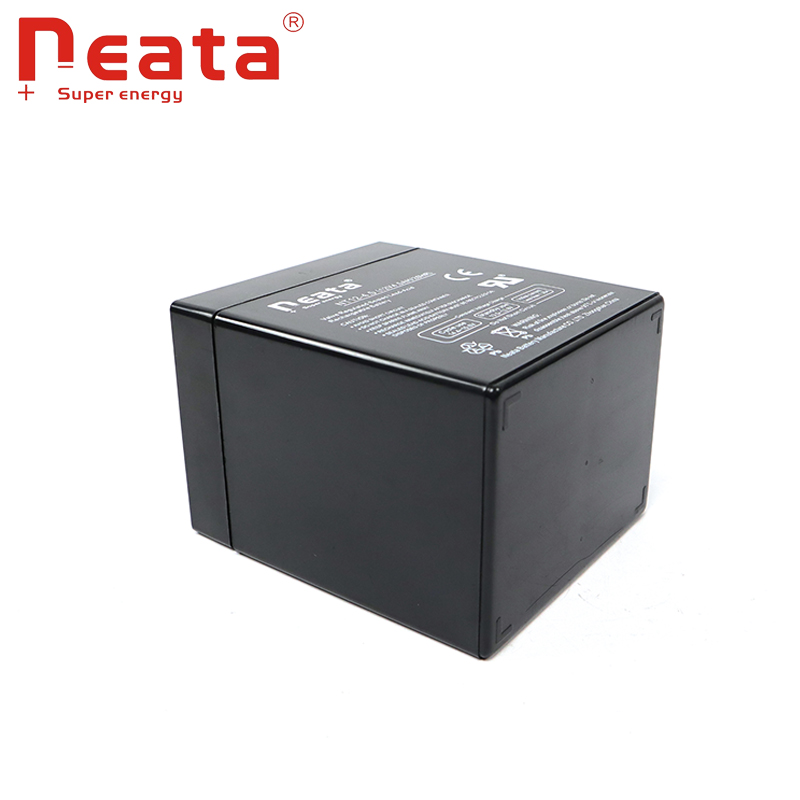

Neata rechargeable lead acid deep cycle battery solar 12v 4.5ah
Characteristics
Nominal Voltage | 12V | ||
Nominal Capacity (20 hour rate) | 4.5Ah | ||
Capacity 25℃(77°F) | 20 hour rate (0.225A) | 4.5Ah | |
10 hour rate (0.427A) | 4.27Ah | ||
5 hour rate (0.72A) | 3.6Ah | ||
1 hour rate (2.92A) | 2.93Ah | ||
Internal Resistance | Full Charged Battery 25℃(77°F) | ≤45mΩ | |
Cyclic Life | 50%(C20) Depth of discharge | 600Times | |
Float Life | 25℃(77°F) Float charge at 13.8V | About 3 Years | |
Capacity affected by Temperature (20 hour ) | 40℃ (104°F) | 102% | |
25℃ (77°F) | 100% | ||
0℃ (32°F) | 85% | ||
-15℃ (5°F) | 65% | ||
Self-Discharge 25℃(77°F) | Capacity after 3 month storage | 90% | |
Capacity after 6 month storage | 80% | ||
Capacity after 12 month storage | 62% | ||
Charge (Constant Voltage) 25℃(77°F) | Cycle | Initial Charging Current Less than 1.35A Voltage 14.6-15.0V | |
Float | Voltage 13.5-13.8V | ||
Discharge Curve
|
| Product Dimensions |
Battery Construction
Component | Positive plate | Negative plate | Container | Safety valve | Terminal | Separator | Electrolyte |
Raw Material | Lead dioxide | Lead | ABS | Rubber | Copper | Fiberglass | Sulfuric acid |
