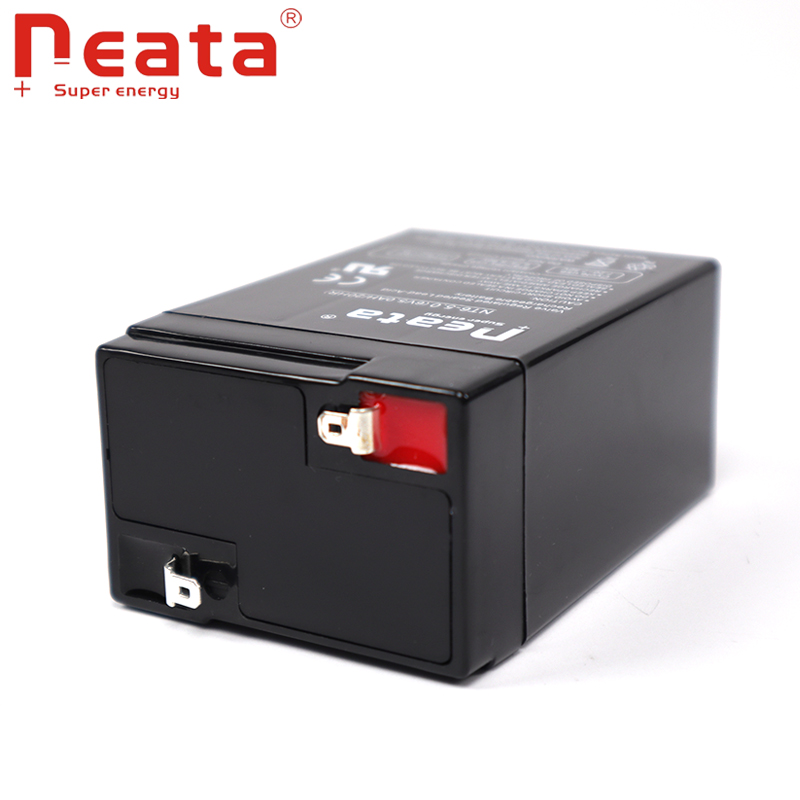

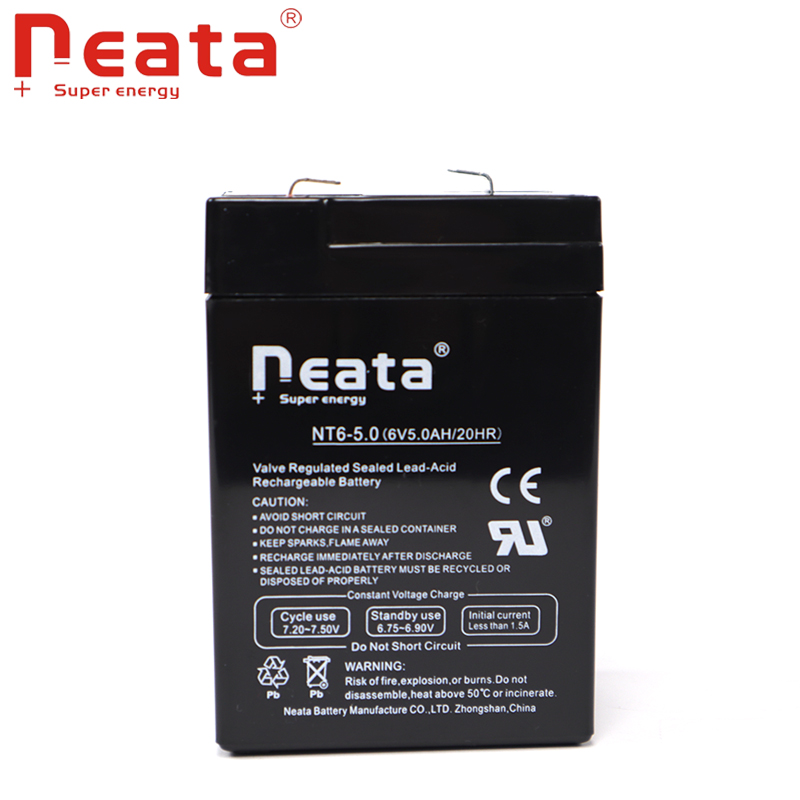

Click on the image to view the original image
- Place of Origin:
- Guangdong, China
- Brand Name:
- NEATA
- Model Number:
- NT6V5AH
- Usage:
- Emergency lighting systems
- Sealed Type:
- Sealed
- Maintenance Type:
- Free
- Weight:
- 0.75kg
- Voltage:
- 6V
- Size:
- 70*47*101*106
- Designed life:
- 3
- Certificate:
- ISO,CE,UL,ROHS
- Company established year:
- 2005
- Cycle use:
- 7.30-7.50V
- Standby use:
- 6.75-6.90V
- Initial current:
- Less than 1.5A
- Carton/pcs:
- 20
- Supply Ability:
- 500000 Piece/Pieces per Month
- Packaging Details
- 70*47*106
- Port
- ZHONGSHAN or SHENZHEN
VRLA sealed description:
Model : 12v5ah
Demension: 70(L)*47(W)*101(H)*106(TH)mm
Weight :0.75kg,
Normal voltage :6v
Rated Capacity : 5ah
Package : 20pcs/box
Applications:
Emergency lighting systems
Electric Power station
Solar powered and wind powered systems
Uninterruptible power supplies (UPS) and stand-by power for computers
Medical equipments
Fire and security systems
Control equipments
Electric toys
Power tools
Portable Lights
Certificate:
ISO9001:2008, ROHS,CE, UL...
Characteristics
Nominal Voltage | 6V | ||
Nominal Capacity (20 hour rate) | 5.0Ah | ||
Capacity 25 degrees (77°F) | 20 hour rate (0.25A) | 5.0Ah | |
10 hour rate (0.475A) | 4.75Ah | ||
5 hour rate (0.8A) | 4.00Ah | ||
1 hour rate (3.25A) | 3.25Ah | ||
Internal Resistance | Full Charged Battery 25 degrees (77°F) | ≤28mΩ | |
Cyclic Life | 50%(C20) Depth of discharge | 600Times | |
Float Life | 25 degrees (77°F) Float charge at 6.9V | About 3 Years | |
Capacity affected by Temperature (20 hour ) | 40 degrees (104°F) | 102% | |
25 degrees (77°F) | 100% | ||
0 degrees (32°F) | 85% | ||
-15 degrees (5°F) | 65% | ||
Self-Discharge 25degrees(77°F) | Capacity after 3 month storage | 90% | |
Capacity after 6 month storage | 80% | ||
Capacity after 12 month storage | 62% | ||
Charge (Constant Voltage) 25 degrees (77°F) | Cycle | Initial Charging Current Less than 1.5A Voltage 7.30-7.50V | |
Float | Voltage 6.75-6.90V | ||
Battery Construction
Component | Positive plate | Negative plate | Container | Safety valve | Terminal | Separator | Electrolyte |
Raw Material | Lead dioxide | Lead | ABS | Rubber | Copper | Fiberglass | Sulfuric acid |
