- Place of Origin:
- Guangdong, China
- Brand Name:
- NEATA
- Model Number:
- NT12V-100
- Usage:
- UPS
- Sealed Type:
- Sealed
- Maintenance Type:
- Free
- Weight:
- 28Kg
- Size:
- 329*172*215
- Voltage:
- 12v
- Certificate:
- ISO CE UL ROHS
- Cycle use:
- 14.6-15.0V
- Design Life:
- 3
- Company established year:
- 2005
- Standby use:
- 13.5-13.8V
- Carton/pcs:
- 1
- initial current:
- less than 36A
- Color:
- White
- Supply Ability:
- 500000 Piece/Pieces per Month
- Packaging Details
- Factory standard box or customize box
- Port
- ZhongShan OR ShenZhen
Welcome to visit Neata battery technology!We are a professional electric energy storage battery manufacturer in China.Mainly produce 2V,4V,6V,12V series AGM,solar gel, deep cycle and front terminal lead acid batteries.Neata will always supply the customers reliable quality with fair price battery and we will never disappointed you!

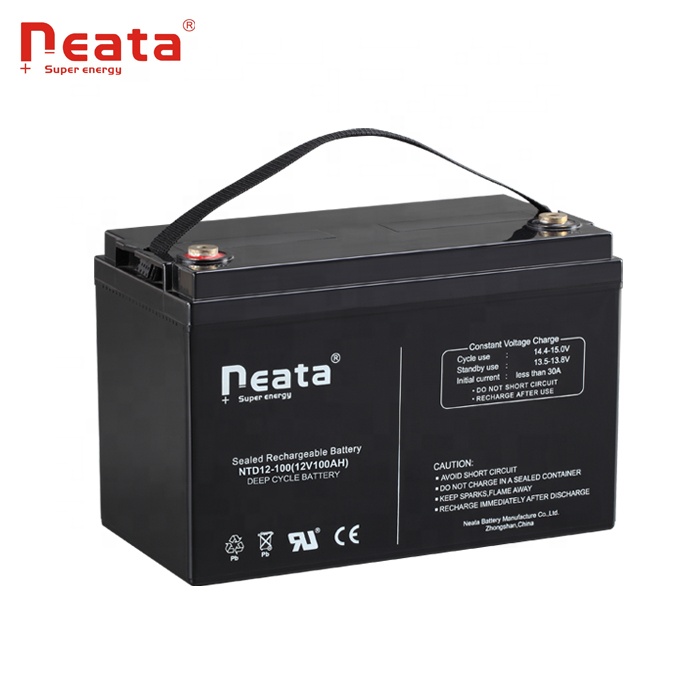

A 12V100Ah Lead acid AGM battery consist of a group of plates , positive and negative plates separated by separators which prevent short circuiting an electrolyte, the plastic container which is divided in 6 compartments to made up 12v. Electrolyte is dilute sulphuric acid and specific gravity of 1.280 (when fully charged). The plates play an important role which aremade of composite of grid and active material. That is where the electric energy stored.
Nominal Voltage | 12V | ||
Nominal Capacity (10 hour rate) | 100A | ||
Capacity 25 degrees (77°F) | 10 hour rate (7A) | 100Ah | |
3 hour rate (18.6A) | 75Ah | ||
1 hour rate (45.5A) | 55Ah | ||
Internal Resistance | Full Charged Battery 25degrees(77°F) | ≤8mΩ | |
Cyclic Life | 50%(C10) Depth of discharge | 600Times | |
Float Life | 25degrees(77°F) Float charge at 13.8V | About 3 Years | |
Capacity affected by Temperature (10 hour ) | 40degrees(104°F) | 102% | |
25degrees (77°F) | 100% | ||
0 degrees (32°F) | 85% | ||
-15 degrees (5°F) | 65% | ||
Internal Resistance | Capacity after 3 month storage | 90% | |
Capacity after 6 month storage | 80% | ||
Capacity after 12 month storage | 62% | ||
Cyclic Life | Cycle | Voltage 14.6-15.0V | |
Float | Voltage 13.5-13.8V |
telecom, ups, medical, emergency lights, security panels, electric vehicles, wheelchairs, atm machines, cash registers auto alarms and any backup or deep cycle application using portable power. We welcome all inquiries either technical or other We have various model sizes available to cover most applications all built under our battery neata brand, however we will print private logo on request. We ship containers to everywhere in the world and our volume allows us to be price competitive .We welcome all inquiries.
One piece 12V 200AH solar battery in a standard box ( or customized gift box ), 9 pcs deep cycle batteries packed with 3 layers on a wooden pallet. For small orders or sample testing order we suggest air express. If full container batteries order you can choose a low costly acceptable way by sea shipment.
In the year of 2010 we import one automatic welding line.This machine do better performance and more efficiency than human beings. Besides
it makes more friendly working environment.
Our staff is injecting electrolyte into a battery. Right
now we have 4 such machines for small capacity batteries and we have another two for big capacity
batteries.
Thousands pieces of batteries are waiting for electrolyte checking . If over filling the workers
will use a straw to suck it up, if not enough electrolyte will add enough.
Each piece battery are checked in this way to
ensure the reliable quality.
Zhongshan Neata Battery Manufacturer
Neata battery manufacture Co.,Ltd specialized in VRLA batteries for over 13 years.Our company covers an area of more than 10,000 square meters with 200 experienced staffs. Right now we can
produce AGM series battery, front terminal battery
solar gel battery, deep cycle battery to meet different applications. Our annual production capacity reach 10,000,000 pcs batteries.
Neata has been recognized certificates of ISO9001,CE,UL,ROHS etc.Each pcs battery has been tested before delivery. We supply 1-3 years warranty service to the customers(details reference the warranty card). Neata battery will always keep reliable,credibility and enterprising spirit to make the better services for our customers.We are flexible to accept OEM orders If you are interested in our battery or want to know more about our company please contact me with below information.
