Click on the image to view the original image
- Place of Origin:
- Guangdong, China
- Brand Name:
- Neata
- Model Number:
- NT12-200
- Type:
- Standard Solar Panel
- Size:
- 522*240*218*244mm / 522*240*218*224mm
- Product name:

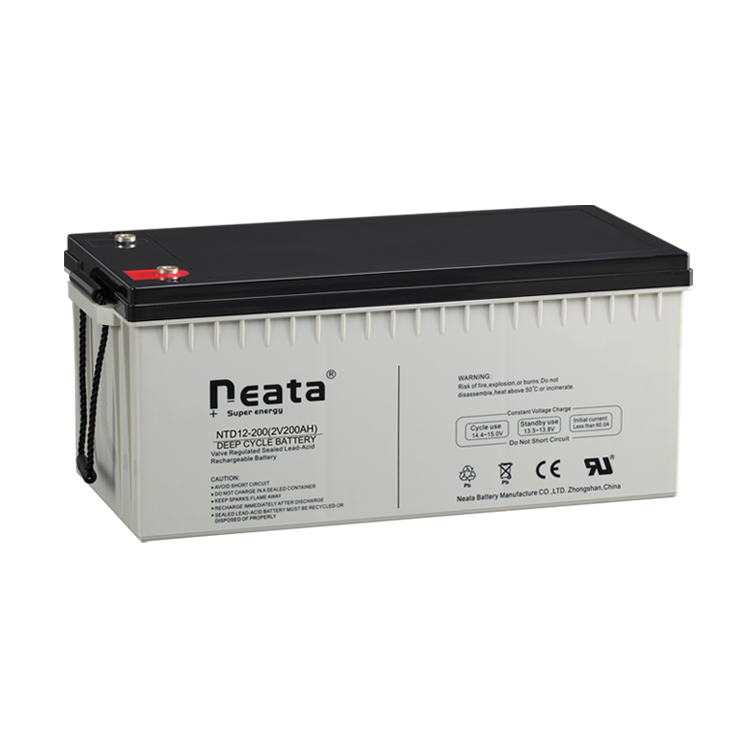

- Free maintenance sealed lead acid AGM battery
- Voltage:
- 12V
- Capacity:
- 200Ah (10C)
- Material:
- lead, AGM, ABS, sulfuric acid, calcium, tin, aluminum
- Application:
- Solar, UPS, wind, inverter, power storage
- Weight:
- 56kg
- Color:
- black or grey or customized
- OEM Service:
- Yes
- Packing materials:
- plastic bag, cartons, pallets, foam board
- Certificate:
- CE ROHS REACH UL ISO MSDS
- CE Certified.
- Valid from 2016-05-12 until 2049-12-31
- RoHS Certified.
- Valid from 2018-08-08 until 2049-12-31
- UL Certified.
- Supply Ability:
- 50000 Piece/Pieces per Month
- Packaging Details
- plastic bag and carton for each battery. Carton size : 546*264*290mm. G.W. is 56.4kg
Export standard cartons and wooden pallets.
Customized box and packing materials is acceptable.
- Port
- Shenzhen Port, Zhongshan Port
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 10000 >10000 Est. Time(days) 30 To be negotiated
12v 200ah gel solar VRLA battery backup for inverter solar system wind water generator 2 years warranty
Product Parameters
Nominal Voltage | 12V | ||
Nominal Capacity (10 hour rate) | 200Ah | ||
Capacity 25°C(77°F) | 10 hour rate (10A) | 200Ah | |
3 hour rate (25A) | 150Ah | ||
1 hour rate (55A) | 120Ah | ||
Internal Resistance | Full Charged Battery 25°C(77°F) | ≤5mΩ | |
Cyclic Life | 50%(C10) Depth of discharge | 1000Times | |
Float Life | 25°C(77°F) Float charge at 13.8V | About 12 Years | |
Capacity affected by Temperature (10 hour ) | 40°C (104°F) | 102% | |
25°C (77°F) | 100% | ||
0°C (32°F) | 90% | ||
-15°C (5°F) | 70% | ||
Self-Discharge 25°C(77°F) | Capacity after 3 month storage | 90% | |
Capacity after 6 month storage | 80% | ||
Capacity after 12 month storage | 70% | ||
Charge (Constant Voltage) 25°C(77°F) | Cycle | Initial Charging Current Less than 60A Voltage 14.6-15.0V | |
Float | Voltage 13.5-13.8V | ||
Battery Construction and Raw Materials :
| Component | Positive plate | Negative plate | Container | Safety valve | Terminal | Separator | Electrolyte |
| Raw Material | Lead dioxide | Lead | ABS | Rubber | Pb | Fiberglass AGM | Sulfuric acid |
Advantages:
1. Excellent power performance, low self-discharging rate.
2. Owned battery plate production base.
3. Good factory price.
4. Short delivery time.
Production Process
Packing & Shipping
Package :
Exporting standard cartons and pallets.
Plastic bag, density foam board, operation manul for each battery.
Packing way can be customized.
Shipment :
1. Sea shipping, LCL, FCL to sea port
2. Ship by sea and express by courier door to door
Your inquiry and emails will be replied within 24 hours.
Professional after-sales service.
We have an excellent team with 14 years experiences on VRAL BATTERY and more than 200 skilled workers.
Each sales has been trained about professional product knowledge to provide thoughtful and careful follow-up service.
Laser printing a code on each battery, if there is any problems to the battery, we can offer solutions better.
Certification
CE, ROHS, REACH, UL, ISO9001, MSDS
Certification for Safe Transport of Chemical Goods
Neata Battery Manufacture Co., Ltd.
Main products includes : Standard AGM Battery Series, Gel Battery Series, Deep Cycle Battery Series, Front Terminal Type
VRLA Battery Series. Products passed UL, CE, ROHS, REACH. We are willing to do OEM for customers.
Neata enjoys high reputation by setting up a complete system with a group of experienced technology engineers, strong R&D
sources, integrate QC system and production management system, we do control the product quality and production efficiency very well.
Q1. Where can we use the batteries?
Our batteries can be widely used in UPS and computer standby power supply, Solar and wind system, Control system, Telecommunication system, Emergency light system, Alarm system, Security system, Fire fighting equipment, Railway system, Electric toys, Power tools, Medical treatment equipment, Power station, Standby power supply, Military equipment, Telephone switching system, etc.
Q2. When will shipped the goods after payment
5-7 days for trial order, 25-35 days for decent order.
Q3: Can we change the color of the battery?
Yes, the color can be customer-made according to your requirement.
Q4: Can we get support if we have our own market position?
Please inform us your detailed mind on your market demand, we will discuss and propose helpful suggestion for you, to find the best solution for you.
Q5. What is your guarantee for the goods
1. We will replace 1:1 for the defective goods after sales
2. One year guarantee after manufacturing.
Q6. What is the service temperature?
-30°c ~ +65°c, recommend is 25°c ± 5%
Q7: Which payment term can choose?
We accept TT, PayPal, Western Union
Q8. What are the advantages and disadvantages of lead-acid battery?
Advantages : cost-effective, cheap price, price of lead acid batteries is much cheaper than other types of batteries, with a lower investment which most users could bear.
Disadvantages: heavy and bulk, low specific energy, strict on charging and discharging.
Q9. Are lead-acid batteries recyclable?
Lead acid batteries are 100% recyclable. The plastic containers and covers of old batteries are neutralized, reground and used to the manufacture of new battery cases. The electrolyte can be processed for recycled waste water uses. In some cases, the electrolyte is cleaned and reprocessed and sold as battery grade electrolyte. In other instances, the sulfate content is removed as Ammonia Sulfate and used in fertilizers. The separators are often used as a fuel source for the recycling process.
