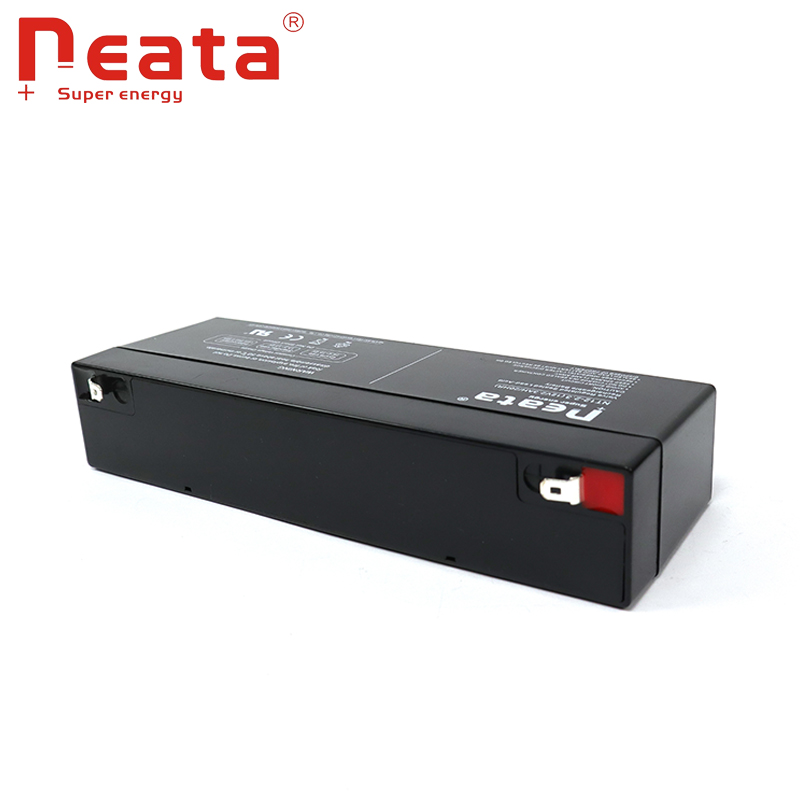

AGM/ SMF/ VRLA / SLA/ sealed lead acid battery 12V 2.3AHSpecifications:
Model: NT12-2.3
Nominal voltage: 12 V
Rated capacity: 2.3AH /20 hour rate
Dimension: 178*35*66mm
Net Weight: 0.95 Kg±0.015Kg
Terminal Type: F1/F2
Quantity per carton: 16 PCS/Carton
Gross weight per carton: 15.5 Kg
Carton dimension: 310*266*126 mm
Applications:
Electric equipments
Emergency lamp
Portable Lights
Camping Lantern
Spotlight
Uninterruptible power supply (UPS)
Electric toys
Fire alarm and security devices
Advantages:
1. Low self-discharge rate and excellent power performance.
2. Long lifetime.
3. Owned battery plate base to ensure good price and delivery.
Certificate:
ISO9001:2008, CE, UL, ROHS, MSDS etc.
Characteristics
Nominal Voltage | 12V | ||
Nominal Capacity (20 hour rate) | 2.3Ah | ||
Capacity 25°C(77°F) | 20 hour rate (0.115A) | 2.3Ah | |
10 hour rate (0.218A) | 2.18Ah | ||
5 hour rate (0.368A) | 1.84Ah | ||
1 hour rate (1.49A) | 1.49Ah | ||
Internal Resistance | Full Charged Battery 25°C(77°F) | ≤50mΩ | |
Cyclic Life | 50%(C20) Depth of discharge | 600Times | |
Float Life | 25°C(77°F) Float charge at 13.8V | About 3 Years | |
Capacity affected by Temperature (20 hour ) | 40°C (104°F) | 102% | |
25°C (77°F) | 100% | ||
0°C (32°F) | 85% | ||
-15°C (5°F) | 65% | ||
Self-Discharge 25°C(77°F) | Capacity after 3 month storage | 90% | |
Capacity after 6 month storage | 80% | ||
Capacity after 12 month storage | 62% | ||
Charge (Constant Voltage) 25°C(77°F) | Cycle | Initial Charging Current Less than0.69A Voltage 14.6-15.0V | |
Float | Voltage 13.5-13.8V | ||
Battery Construction
Component | Positive plate | Negative plate | Container | Safety valve | Terminal | Separator | Electrolyte |
Raw Material | Lead dioxide | Lead | ABS | Rubber | Copper | Fiberglass | Sulfuric acid |
