- Place of Origin:
- Guangdong, China
- Brand Name:
- NEATA
- Model Number:
- NT12-5.0
- Usage:
- Starting
- Sealed Type:
- Sealed
- Maintenance Type:
- Free
- Certification:
- UL, ce
- Weight:
- 1.52 Kg±20g
- Size:
- 90*70*106mm
- Voltage:
- 12V
- Certificate:
- ISO CE UL ROHS
- Cycle use:
- 14.6-15.0V
- Design Life:
- 3
- Company established year:
- 2005
- Standby use:
- 13.5-13.8V
- Carton/pcs:
- 10
- initial current:
- Less than 1.5A
- Supply Ability:
- 500000 Piece/Pieces per Month
- Packaging Details
- 375*195*125mm
Factory standard box or customize box
- Port
- ZhongShan OR ShenZhen
- Picture Example:
- Lead Time:
Quantity(Pieces) 1 - 5000 >5000 Est. Time(days) 30 To be negotiated

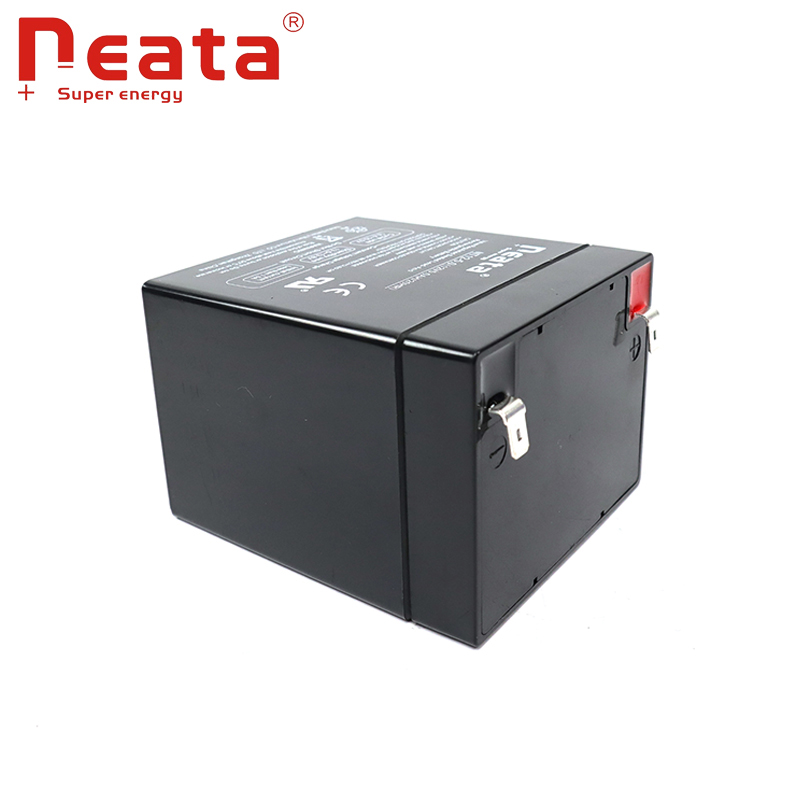

Neata 12v 5.0ah battery agm lead high quality inverter battery
Description | ||
Model | 12v5.0ah | |
Nominal Voltage | 12V | |
Nominal Capacity (20hour rate) | 5.0Ah | |
Cyclic Life | 50%(C20) Depth of discharge | 600Times |
Capacity 25℃ (77°F) | 20 hour rate (0.25A) | 5.0Ah |
10 hour rate(0.475A) | 4.75Ah | |
5 hour rate( 0.8A) | 4.00Ah | |
1 hour rate( 3.25A) | 3.25Ah | |
internal Resistance | Full Charged Battery 25℃(77°F) | ≤38mΩ |
Capacity Affected By Temperature (20 Hour Rate) | 40℃ (104°F) | 102% |
25℃ (77°F) | 100% | |
0℃ (32°F) | 85% | |
-15℃ (5°F) | 65% | |
Self-Discharge at 25℃ (77°F) | Capacity after 3 month storage | 90% |
Capacity after 6 month storage | 80% | |
Capacity after 12 month storage | 62% | |
Float Life | 25℃(77°F) Float charge at 6.9V | About 3Years |
Charge (Constant Voltage)25℃ (77°F) | Cycle | Initial Charging Current Less than 1.5A Voltage 14.6-15.0V |
Float | Voltage 13.5-13.8V | |
Float Charge(Constant Voltage) | Voltage 13.5-13.8V | |
Usage | UPS/Solar/Wind/Alarm/Security/Telecommunication/Emergency Lighting System. | |
Electronic Instrument/ Fire-fighting Equipment/ Standby Power Supply/ Etc | ||
Warranty | 23Years | |
OEM Service | Accept | |
Color | Black, Gray | |
Certificate | ISO/CE/UL/ROHS |
Battery Construction | |||||||
Component | Positive plate | Negative plate | Container | Safety valve | Terminal | Separator | Electrolyte |
Raw matterial | Lead dioxide | Lead | ABS | Rubber | Copper | Fiberglass | Sulfuric acid |
Dimension | ||
Battery (L×W×H) | mm±1 | 90×70×106 |
inch | 3.55×2.76×4.18 | |
Box (L×W×H) | mm±2 | 375×195×125 |
inch | 14.8×7.68×4.93 | |
Quantity Per Box | 10 PCS | |
2.42 Kg±50gNet weight Per Cell | 1.52 Kg±20g | |
Net weight Per Box | 15.5Kg | |
Gross Weight | 15.8Kg |
Quanlity Guarantee
12V 1.2Ah-28Ah, 6V1 Ah-14Ah, 4V3Ah-8Ah
(1 year warranty since shipping day)
12V 33Ah-250Ah, 6V100Ah-220Ah
(2 years warranty since shipping day)
1.Neata Packing
2.Neutral Packing or Customize Packing
Shipping
1.Express
2.Air shipping
3.Sea shipping
Payment Term
1.100%manufacturer & Customized
Neata Battery manufacture Co., Ltd. Is a professional VRLA BATTERY include 6V&12V produces, located in Zhongshang and have office in Guangzhou and Shenzhen, can offer very convenient transportation access.
Neata Develop corresponding product series, such as UPS battery, solar deep cycle battery, gel battery according to customer"s different applications. We can OEM customer"s LOGO according to customer"s authorization.
2.High-tech content & Quality control
Neata enjoys high reputation by set up a complete system with a group of experienced technology engineers, strong R&D sources, integrate QC system and production management system, we do control the product quality and production efficiency very well.
We possess the following certificate CE, UL, ISO9001, ROHS Certification.
We mark code on each solar battery; so as long as you have any questions, we can check product production information. Customize a NPP special identity card number for each product.
3.High-efficient skillful staffs & Perfection salesman
We have an excellent team with over 10 years experiences on VRAL BATTERY and more than 200 skilled workers.
Each salesman has been trained about professional product knowledge to provide thoughtful and careful follow-up service for each customer order.
4.Economy & Environment
We dedicated to provide economy and environment friendly battery products and create a new widespread field for storage battery products with our customers by joint efforts.
