Home > Products > Deep cycle 6V14Ah lead acid battery for solar panel storage battery

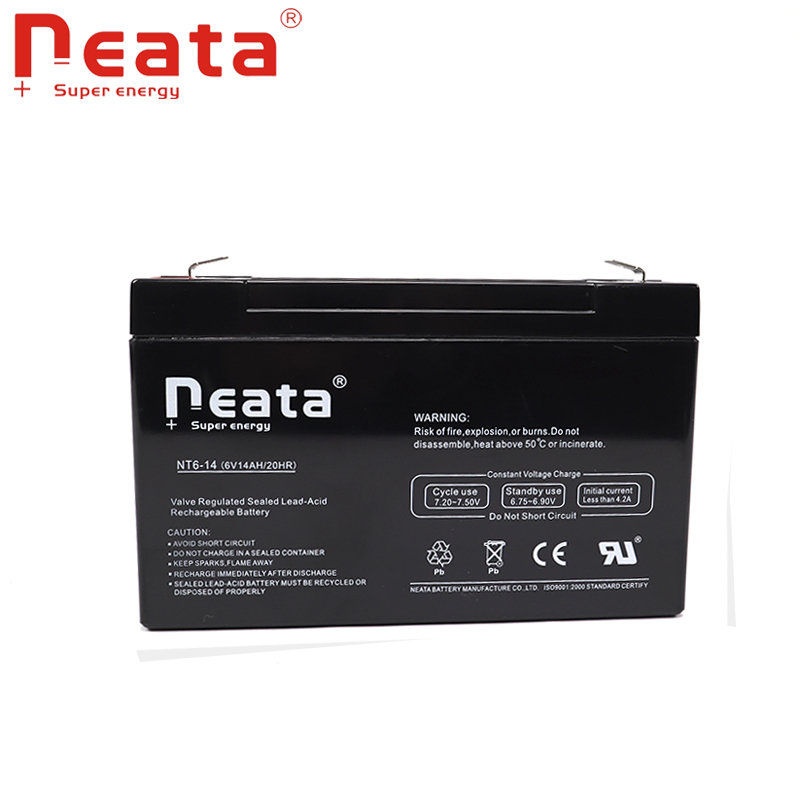

Deep cycle 6V14Ah lead acid battery for solar panel storage battery

Click on the image to view the original image

Product：	views：7Deep cycle 6V14Ah lead acid battery for solar panel storage battery
Branch：	NEATA
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-17 05:29

Product Details

Overview

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: NEATA

Model Number:: NT6-14

Usage:: emergency light

Sealed Type:: Sealed

Maintenance Type:: Free

Certification:: ce

Weight:: 1.95KG

Battery type:: Lead acid battery

sealed type:: valve regulated sealed battery

Battery Size:: 151*50*99mm

Cycle use:: 7.3-7.5V

Standby use:: 6.75-6.9V

initial current:: Less than4.2A

Float Life:: 3years

Certificate:: ISO CE UL ROHS

Container Material:: A.B.S

Application:: Solar System/Ups system

Supply Ability

Supply Ability:: 500000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details: 1.International standard (Factory standard)
2. Strong catons:320*274*122mm,10pcs/ctn
3. Customize box is acceptable.

Port: ZhongShan OR ShenZhen

Picture Example:

Lead Time:

Quantity(Pieces)	1 - 5000	>5000
Est. Time(days)	30	To be negotiated

Product Details

Description
Model No.	NT6-14
Nominal Voltage	6V
Nominal Capacity (20hour rate)	14.0Ah
Cyclic Life	50%(C20) Depth of discharge	600Times
Capacity 25℃(77°F)	20 hour rate(0.7A)	14.0Ah
	10 hour rate( 1.33A)	13.3Ah
	5 hour rate(2.24A)	11.2Ah
	1 hour rate(9.1A)	9.1Ah
internal Resistance	Full Charged Battery 25℃(77°F)	≤25mΩ
Capacity Affected By Temperature (20 Hour Rate)	40℃ (104°F)	102%
	25℃ (77°F)	100%
	0℃ (32°F)	85%
	-15℃ (5°F)	65%
Self-Discharge at 25℃ (77°F)	Capacity after 3 month storage	90%
	Capacity after 6 month storage	80%
	Capacity after 12 month storage	62%
Float Life	25℃(77°F) Float charge at6.9V	About 3Years
Charge (Constant Voltage)25℃ (77°F)	Cycle	Initial Charging Current Less than 4.2A Voltage7.3-7.5V
Charge (Constant Voltage)25℃ (77°F)	Float	Voltage6.75-6.9V
Usage	Electronic instruments/Fire alarm/Security devices/UPS system/Emergency lighting.
OEM Service	Accept
Color	Black, Gray
Certificate	ISO/CE/UL/ROHS

Discharge curve

Product dimension

Battery Construction
Component	Positive plate	Negative plate	Container	Safety valve	Terminal	Separator	Electrolyte
Raw matterial	Lead dioxide	Lead	ABS	Rubber	Copper	Fiberglass	Sulfuric acid

Dimension
Battery (L×W×H)	mm±1	1515099
	inch	5.941.973.90
Box (L×W×H)	mm±2	320274122
	inch	12.610.84.81
Quantity Per Box		10 PCS
Net weight Per Cell		1.95 Kg±25 g
Net weight Per Box		19.5 Kg
Gross Weight		19.8 Kg

Scope Of Application

-Uninterruptible power supply systems
- Fire protection and other industrial applications
- Electronic appliance and commercial applications
- Telecommunication equipment
- Solar/wind power system
- Emergency lighting or small lamp fitting
- Electric power system

- Security devices

Packaging & Delivery

1. Factory Sandard Packing

2.Transportantion for shipment.

Air freight/ Sea transportation/Ground transportation

Our Company

Factory :

Production processing:

Certifications

Neata has recognized certificaties of ISO9001:2008, CE, UL,ROHS etc. We can really supply customers with reliable batteries. We also have strong capability to work together with our customers, so that our batteries are compatible with global standards of IEC60896-1,IEC896-2,JISC8702, etc.
