Overview
Quick Details
- Place of Origin:
- Guangdong, China
- Brand Name:
- NEATA
- Model Number:
- NT4-4.0
- Usage:
- UPS
- Sealed Type:
- Sealed
- Maintenance Type:
- Free
- Certification:
- ce
- Weight:
- 0.44KG
- Battery type:
- Lead acid battery
- sealed type:
- valve regulated sealed battery
- Battery Size:
- 47*47*106mm
- Cycle use:
- 7.3-7.5V
- Standby use:
- 6.75-6.9V
- initial current:
- Less than1.2A
- Float Life:
- 3years
- Certificate:
- ISO CE UL ROHS
- Container Material:
- A.B.S
- Application:
- Solar System/Ups system
Supply Ability
- Supply Ability:
- 500000 Piece/Pieces per Month
Packaging & Delivery
- Packaging Details
- 1.International standard (Factory standard)
2. Strong catons:342*285*82mm,27pcs/ctn
3. Customize box is acceptable.
- Port
- ZhongShan OR ShenZhen
- Picture Example:
- Lead Time:
Quantity(Pieces) 1 - 5000 >5000 Est. Time(days) 30 To be negotiated

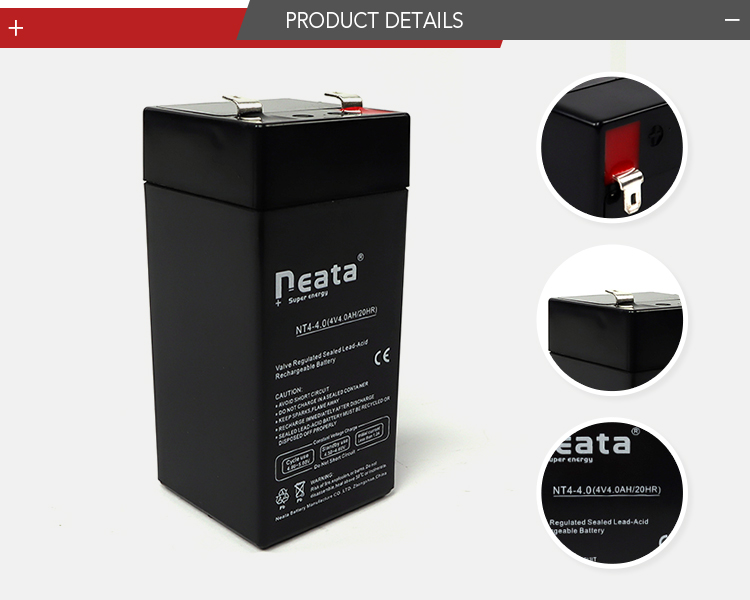

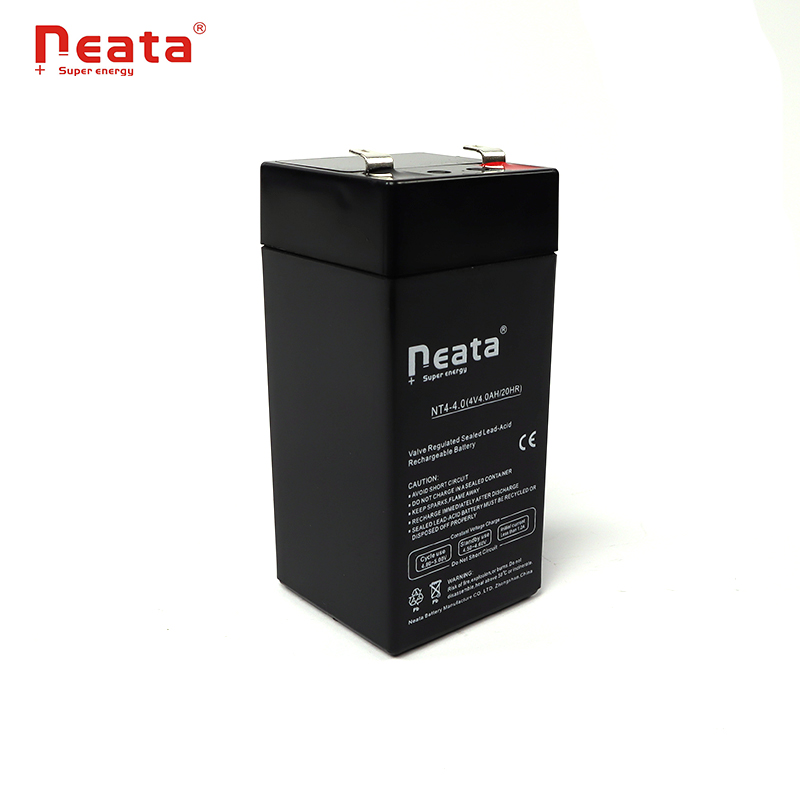

Product Details
Description | ||
Model No. | NT4-4.0 | |
Nominal Voltage | 4V | |
Nominal Capacity (20hour rate) | 4.0Ah | |
Cyclic Life | 50%(C20) Depth of discharge | 600Times |
Capacity 25℃(77°F) | 20 hour rate(0.225A) | 4.0Ah |
10 hour rate(0.428A) | 3.8Ah | |
5 hour rate(0.72A) | 3.2Ah | |
1 hour rate(2.93A) | 2.6Ah | |
internal Resistance | Full Charged Battery 25℃(77°F) | ≤37mΩ |
Capacity Affected By Temperature (20 Hour Rate) | 40℃ (104°F) | 102% |
25℃ (77°F) | 100% | |
0℃ (32°F) | 85% | |
-15℃ (5°F) | 65% | |
Self-Discharge at 25℃ (77°F) | Capacity after 3 month storage | 90% |
Capacity after 6 month storage | 80% | |
Capacity after 12 month storage | 62% | |
Float Life | 25℃(77°F) Float charge at6.9V | About 3Years |
Charge (Constant Voltage)25℃ (77°F) | Cycle | Initial Charging Current Less than 1.2A Voltage7.3-7.5V |
Float | Voltage6.75-6.9V | |
Usage | Electronic instruments/Fire alarm/Security devices/UPS system/Emergency lighting. | |
OEM Service | Accept | |
Color | Black, Gray | |
Certificate | ISO/CE/UL/ROHS |
Discharge curve
Product dimension
Battery Construction | |||||||
Component | Positive plate | Negative plate | Container | Safety valve | Terminal | Separator | Electrolyte |
Raw matterial | Lead dioxide | Lead | ABS | Rubber | Copper | Fiberglass | Sulfuric acid |
Dimension | ||
Battery (L×W×H) | mm±1 | 47*47*106 |
inch | 1.85*3.98*4.17 | |
Box (L×W×H) | mm±2 | 310*260*125 |
inch | 12.2*10.24*4.92 | |
Quantity Per Box | 30 PCS | |
Net weight Per Cell | 0.44 Kg±15g | |
Net weight Per Box | 13.2 Kg | |
Gross Weight | 13.6 Kg |
Scope Of Application
-Uninterruptible power supply systems
- Fire protection and other industrial applications
- Electronic appliance and commercial applications
- Telecommunication equipment
- Solar/wind power system
- Emergency lighting or small lamp fitting
- Electric power system
- Security devices
Packaging & Delivery
1. Factory Sandard Packing
2.Transportantion for shipment.
Air freight/ Sea transportation/Ground transportation
Our Company
Factory :
Production processing:
Certifications
Neata has recognized certificaties of ISO9001:2008, CE, UL,ROHS etc. We can really supply customers with reliable batteries. We also have strong capability to work together with our customers, so that our batteries are compatible with global standards of IEC60896-1,IEC896-2,JISC8702, etc.
