Home > Products > Big size lead acid battery 12V70Ah gel solar battery

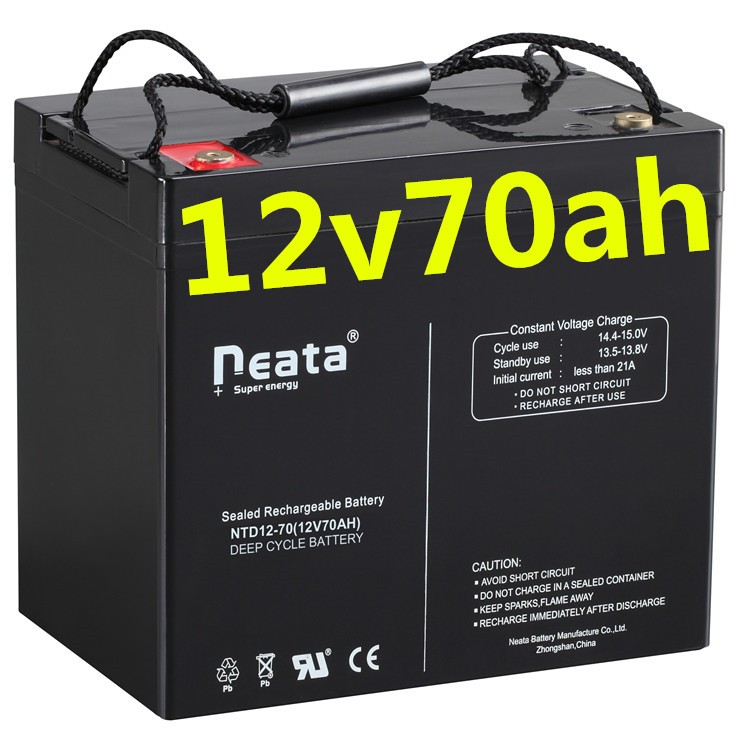

Big size lead acid battery 12V70Ah gel solar battery
Click on the image to view the original image
Product： views：8Big size lead acid battery 12V70Ah gel solar battery
Branch： NEATA
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 05:30
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
NEATA
Model Number:
NT12-70
Usage:
UPS
Sealed Type:
Sealed
Maintenance Type:
Free
Certification:
ce
Weight:
20.5Kg
Battery type:
Sealed VRLA Lead Acid Battery
Battery Size:
259*169*227mm
Cycle use:
14.6-15.0V
Standby use:
13.5-13.7V
initial current:
Less than21A
Float Life:
3years
Certificate:
ISO CE UL ROHS
Container Material:
A.B.S
Application:
Solar System/Ups system
Warranty:
2years
Supply Ability
Supply Ability:
200000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1.International standard (Factory standard)
2. Strong catons:285*190*270mm,1pcs/ctn
3. Customize box is acceptable.
Port
ZhongShan OR ShenZhen
Picture Example:
package-img
Lead Time:
Quantity(Pieces)1 - 5000 >5000
Est. Time(days)30To be negotiated
Product Details
Description
Model No.
NT12-70
Nominal Voltage
12V
Nominal Capacity (10hour rate)
70.0Ah
Cyclic Life
50%(C10) Depth of discharge
600Times

Capacity
25℃(77°F)


10 hour rate(7.0A)
70.0Ah
5 hour rate(18.6A)
55.8Ah
1 hour rate(45.5A)
45.5Ah
internal Resistance
Full Charged Battery 25℃(77°F)
≤7mΩ


Capacity Affected By Temperature
   (20 Hour Rate)
40℃ (104°F)
102%
25℃ (77°F)
100%
0℃ (32°F)
85%
-15℃ (5°F)
65%

Self-Discharge at 25℃ (77°F)
Capacity after 3 month storage
90%
Capacity after 6 month storage
80%
Capacity after 12 month storage
62%
Float Life
25℃(77°F) Float charge at13.8V
About 3Years


Charge (Constant Voltage)25℃ (77°F)
Cycle
Initial Charging Current
Less than21A
Voltage14.6-15.0V
Float
Voltage13.5-13.8V
Usage
Electronic instruments/Fire alarm/Security devices/UPS system/Emergency lighting.
OEM Service
Accept
Color
Black, Gray
Certificate
ISO/CE/UL/ROHS

                       Discharge curve

                            Product dimension

Battery Construction
Component
Positive plate
Negative plate
Container
Safety valve
Terminal
Separator
Electrolyte
Raw matterial
Lead dioxide
Lead
ABS
Rubber
Copper
Fiberglass
Sulfuric acid
Dimension
  Battery
(L×W×H)
mm±1
259*169*227
inch
10.2*6.66*8.94
Box
(L×W×H)
mm±2
285*190*270
inch
11.3*7.48*10.7
Quantity Per Box
1 PCS
Net weight Per Cell
20.5Kg±100g
Net weight Per Box
20.5Kg
Gross Weight
20.8Kg
Scope Of Application


-Uninterruptible power supply systems
- Fire protection and other industrial applications
- Electronic appliance and commercial applications
- Telecommunication equipment
- Solar/wind power system
- Emergency lighting or small lamp fitting
- Electric power system

- Security devices

Packaging & Delivery

1. Factory Sandard Packing


2.Transportantion for shipment.

     Air freight/ Sea transportation/Ground transportation
Our Company


Factory :



Production processing:

Certifications

Neata has recognized certificaties of ISO9001:2008, CE, UL,ROHS etc. We can really supply customers with reliable batteries. We also have strong capability to work together with our customers, so that our batteries are compatible with global standards of IEC60896-1,IEC896-2,JISC8702, etc.
