- Place of Origin:
- Guangdong, China
- Brand Name:
- NEATA
- Model Number:
- 12V200AH
- Usage:
- Solar systems
- Sealed Type:
- Sealed
- Maintenance Type:
- Free
- Weight:
- 56.5kg
- Size:
- 522*238*218*238
- Voltage:
- 12v
- Nominal Capacity:
- 200AH/10HR
- Company established year:
- 2005
- Certificate:
- ISO,CE,UL,ROHS
- Cycle use:
- 14.6-15.0V
- Standby use:
- 13.5-13.8V
- Initial current:
- Less than 60A
- Designed life:
- 9
- Color:
- Grey
- Supply Ability:
- 20000 Piece/Pieces per Month
- Packaging Details
- 546*264*290mm
Factory standard box or customize box
- Port
- ZHONGSHAN OR SHENZHEN
Welcome to visit Neata battery technology!We are a professional electric energy storage battery manufacturer in China. Mainly produce 2V,4V,6V,12V series AGM,solar gel, deep cycle and front terminal lead acid batteries. Neata will always supply the customers reliable quality with fair price battery and we will never disappointed you!

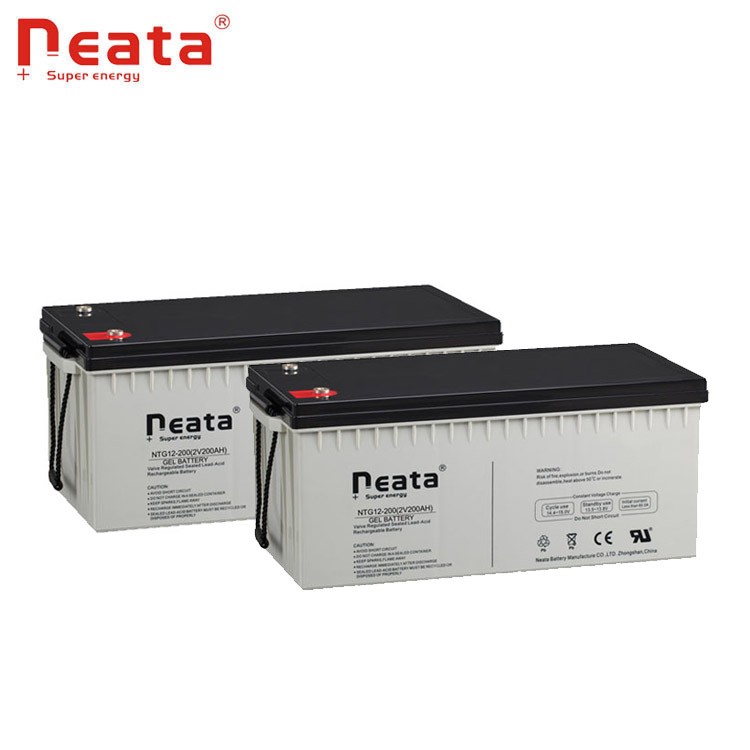

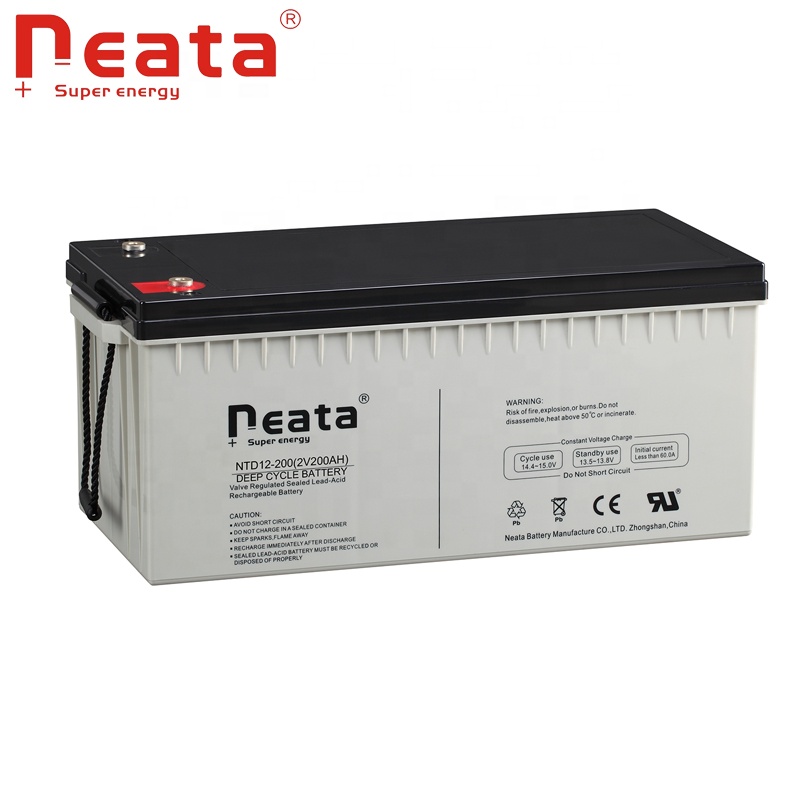

A 12V200Ah Lead acid AGM battery consist of a group of plates , positive and negative plates separated by separators which prevent short circuiting an electrolyte, the plastic container which is divided in 6 compartments to made up 12v. Electrolyte is dilute sulpuric acid and specific gravity of 1.280 (when fully charged). The plates play an important role which aremade of composite of grid and active material.That is where the electric energy stored.
Nominal Voltage | 12V | ||
Nominal Capacity (10 hour rate) | 200Ah | ||
Capacity 25 degrees (77°F) | 10 hour rate (6.5A) | 200Ah | |
3 hour rate (16.2A) | 150Ah | ||
1 hour rate (35.8A) | 110Ah | ||
Internal Resistance | Full Charged Battery 25degrees(77°F) | ≤8mΩ | |
Cyclic Life | 50%(C10) Depth of discharge | 600Times | |
Float Life | 25degrees(77°F) Float charge at 13.8V | About 3 Years | |
Capacity affected by Temperature (10 hour ) | 40degrees(104°F) | 102% | |
25degrees (77°F) | 100% | ||
0 degrees (32°F) | 85% | ||
-15 degrees (5°F) | 65% | ||
Self-Discharge 25degrees(77°F) | Capacity after 3 month storage | 90% | |
Capacity after 6 month storage | 80% | ||
Capacity after 12 month storage | 62% | ||
Charge (Constant Voltage) 25°C(77°F) | Cycle | Initial Charging Current Less than19.5A Voltage 14.6-15.0V | |
Float | Voltage 13.5-13.8V |
Component | Positive plate | Negative plate | Container | Safety valve | Terminal | Separator | Electrolyte |
Raw Material | Lead dioxide | Lead | ABS | Rubber | Pb | Fiberglass | Sulfuric acid |
Neata Battery manufactures quality sealed lead acid batteries and Gel BATTERIES for these applications:
telecom, ups, medical, emergency lights, security panels, electric vehicles, wheelchairs, atm machines, cash registers, auto alarms and any backup or deep cycle application using portable power. We welcome all inquiries either technical or other.We have various model sizes available to cover most applications all built under our battery neata brand, however we will print private logo on request. We shipcontainers to everywhere in the world and our volume allows us to be price competitive.We welcome all inquiries.
One piece 12V 200AH solar battery in a standard box ( or customized gift box ), 9 pcs deep cycle batteries packed with 3 layers on a wooden pallet. For small orders or sample testing order we suggest air express. If full container batteries order you can choose a low costly acceptable way by sea shipment.
In the year of 2010 we import one automatic welding line.This machine do better performance and more efficiency than human beings. Besides
Our staff is injecting electrolyte into a battery. Right
Thousands pieces of batteries are waiting for electrolyte checking . If over filling the workers
Zhongshan Neata Battery Manufacturer
Neata battery manufacture Co.,Ltd specialized in VRLA batteries for over 13 years.Our company covers an area of more than 10,000squaremeterswith 200 experienced staffs. Right now we can
produce AGM series battery, front terminal battery
solar gel battery, deep cycle battery to meet different applications. Our annual production capacity reach 10,000,000pcs batteries.
Neata has been recognized certificates of ISO9001,CE,UL,ROHS etc.Each pcs battery has been tested before delivery. We supply 1-3years warranty service to the customers(details reference the warranty card). Neata battery will always keep reliable,credibility and enterprising spirit to make the better services for our customers.We are flexible to accept OEM orders If you are interested in our battery or want to know more about our company please contact me with below information.
