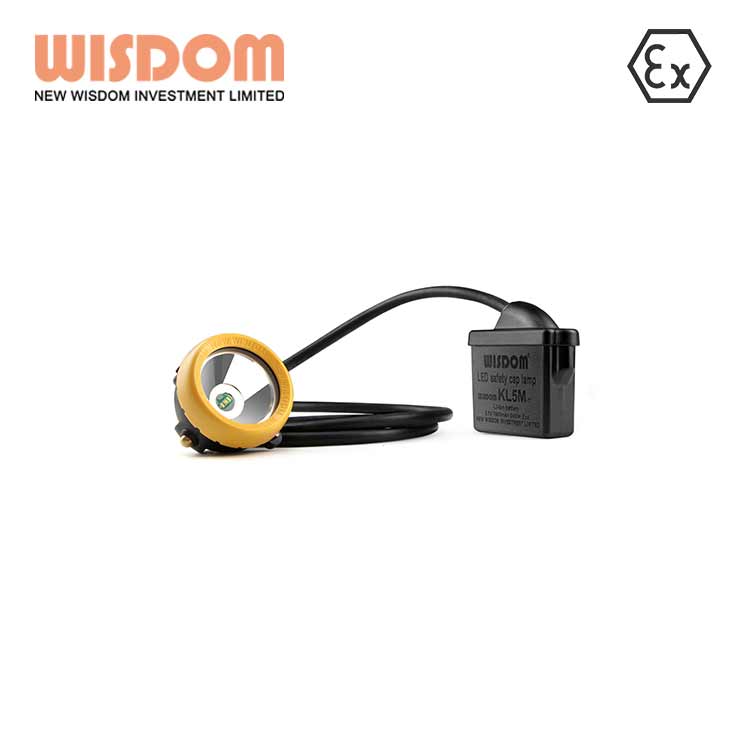

11000Lux shenzhen head torch KL5M corded miner led headlamps WISDOM ATEX mining cap lamps
| Version | tandard version | Long version | Super Long version | ATEX(M1) |
| Rated capacity | 7.8 mAh | 7.8 mAh | 7.8 mAh | 7.8 mAh |
| Rated voltage | 3.7 V | |||
| Continuous discharging time | 13 H | 16 H | 24 H | 13H |
| Main light LED working voltage | 3.0 V | |||
| Main light LED working current | 0.58 A | 0.43 A | 0.34 A | - |
| Main light power | 1.92 W | 1.5 W | 1.14 W | 1.92 W |
| Main light luminous flux | 140 lm | 279 lm | 229 lm | 340 lm |
| Lamp lighting degree initial lighting degree in 1 m | 18000 lx | 14000 lx | 11000 lx | 18000 lx |
| Main light life span | 100000 h | |||
| Auxiliary light power | 0.4 W | |||
| Auxiliary light life span | 40000 h | |||
| Short circuit protection time | < 320 μs | |||
| Life span of the battery (Recharges) | 1200 cycles (In reasonable working condition) | |||
| Charging time | 5 h | 4 h | 4 h | 3 h |
| Dimensions | 85x94x36 mm | |||
| Weight | 475/500 G ; 16.76/17.63 oz | |||
